Series 16i/18i/160i/180i-PB Descriptions Page 111

Descriptions

Page of 330

/ 330

B–63682EN/01

13. FUNCTION TO SIMPLIFY

PROGRAMMING

NC FUNCTION

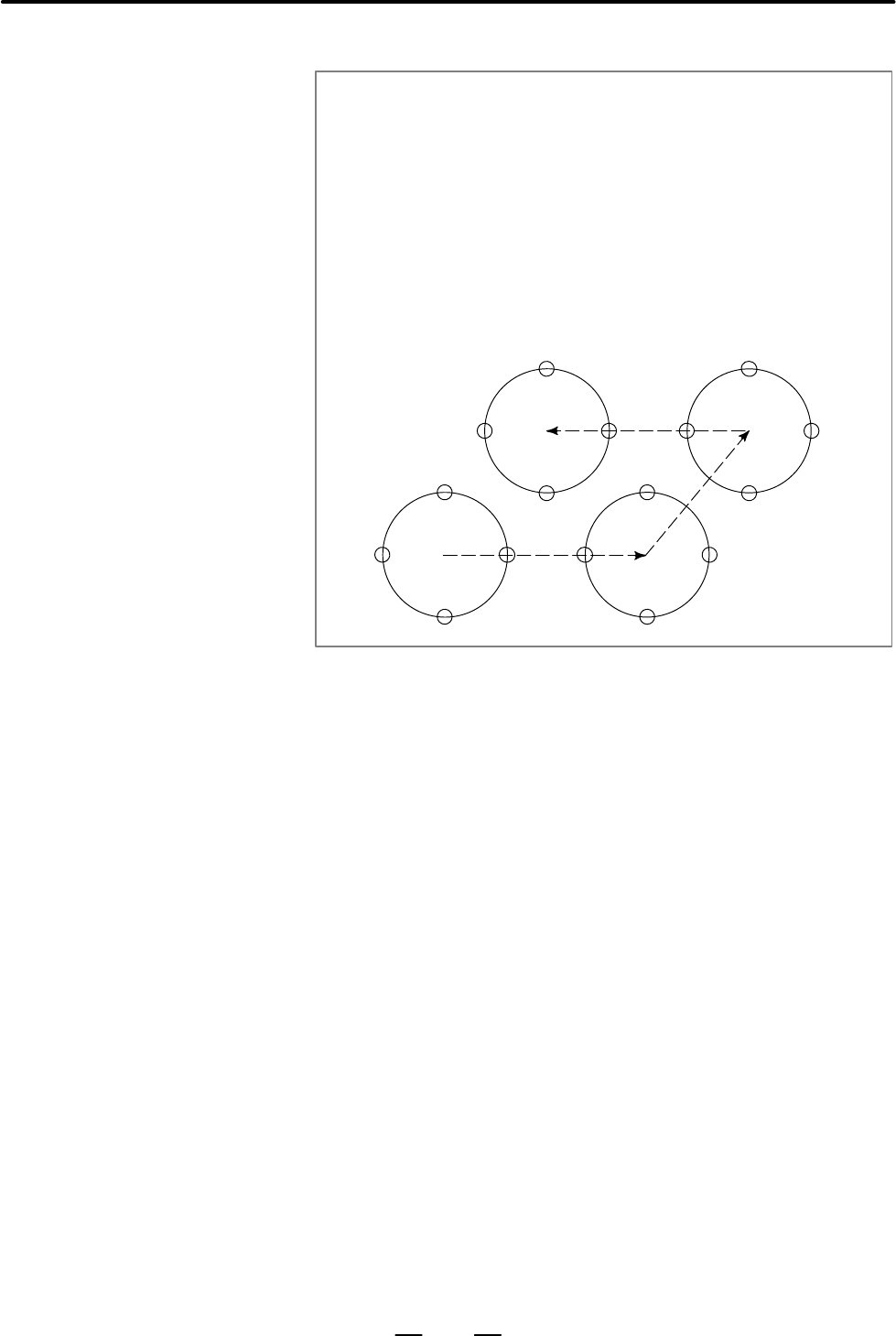

(150, 200) (250, 200)

(100, 100) (200, 100)

G72X100.Y100. ;

A2G26I50.J0K4 ;² Designated for storage after execution

G72X200.Y100. ;

B2 ; ² Recall of pattern A2

G72X250.Y200. ;

B2 ;

G72X150.Y200. ;

B2 ;

When it is desired to repeatedly use a pattern with the same figure among

the pattern functions, it is possible to store the pattern with a number and

access it whenever necessary.

(1)Storage A1 – A5

A pattern function is executed and stored when address A (1 to 5) is

specified before a G code of pattern function.

A2G26I50.J04K; G26I50.J04K is stored in storage A2 of the

patternfunciton.

(2)Call B1 – B5

The pattern function memorized in address A can be called by address

B (1 to 5) command.

B2; – G26I50.J0K4 is called and executed.

Blocks (up to 192 characters per block) can be stored and called except

for the pattern function.

13.3

STORAGE AND CALL

BY ADDRESS A/B
