Series 16i/18i/160i/180i-PB Descriptions Page 235

Descriptions

Page of 330

/ 330

B–63682EN/01

28. DATA INPUT/OUTPUT

NC FUNCTION

211

With the FACTOLLINK function, the user can operate a CNC to display

information such as operation instructions on the CNC screen and transfer

NC data.

For details, refer to ”Ethernet Board/DATA SERVER Board Operator’s

Manual (B–63354EN)” and ”FANUC FACTOLINK Script Function

Operator’s Manual (B–75054EN).”

Information created on the personal computer such as operation

instructions can be displayed on the NC screen by operation on an NC.

The following NC data can be transferred by operation on the personal

computer:

D NC programs

D NC file data

- Parameters

- Ladder programs

- C executor execution form

- Macro executor execution form

- NC system files

D PMC data

- Addresses T, K, C, D

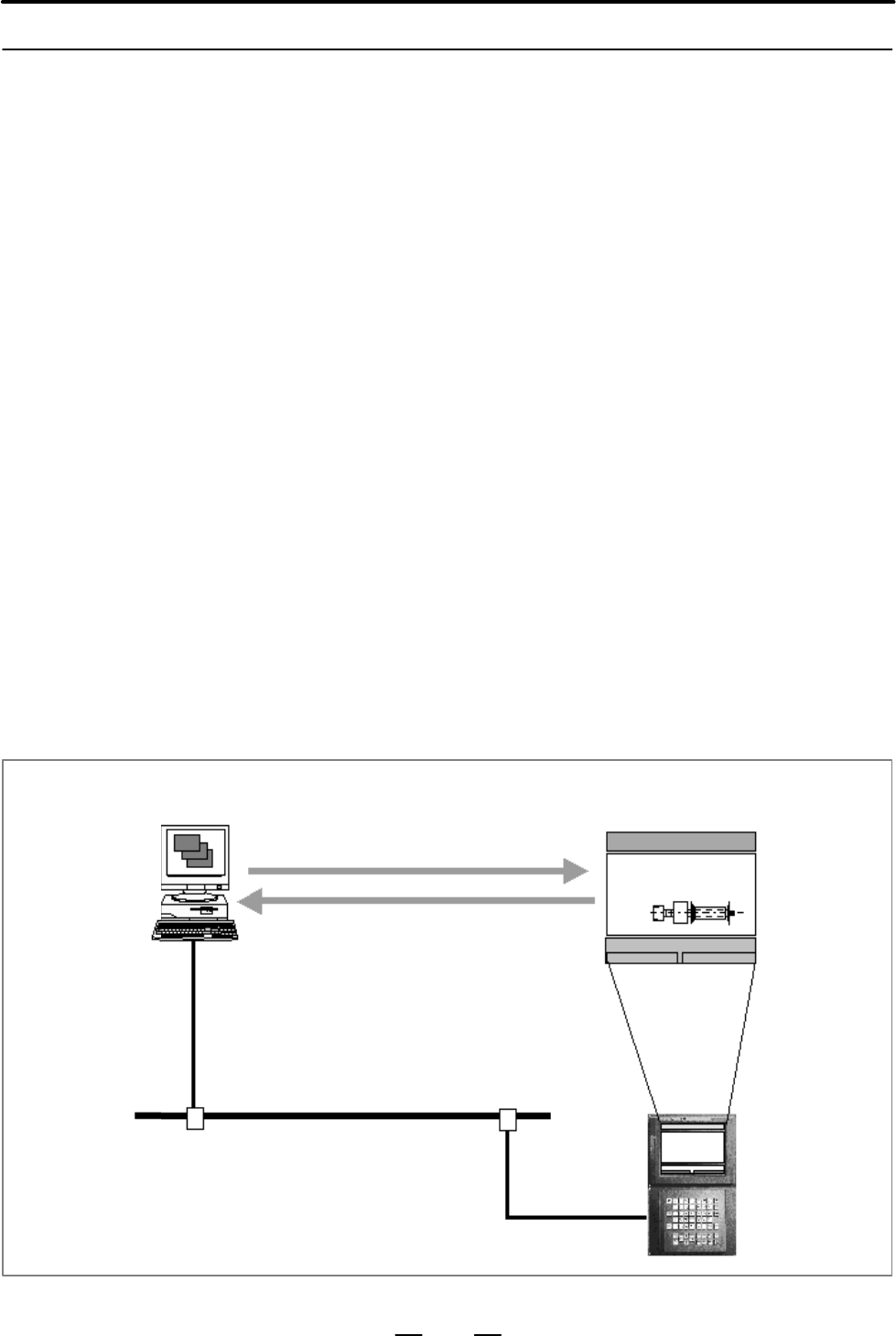

The machine status can be posted automatically to the personal computer.

Personal computer

Screen information NC data

Machine status NC data

CNC screen

Troubleshooting guidance

Lubrication of

guide roller

Ethernet

28.8.3

FACTOLINK Function

Screen display

NC data transfer

Logging
