Series 16i/18i/160i/180i-PB Descriptions Page 191

Descriptions

Page of 330

/ 330

B–63682EN/01

24. SETTING AND DISPLAY UNIT

NC FUNCTION

167

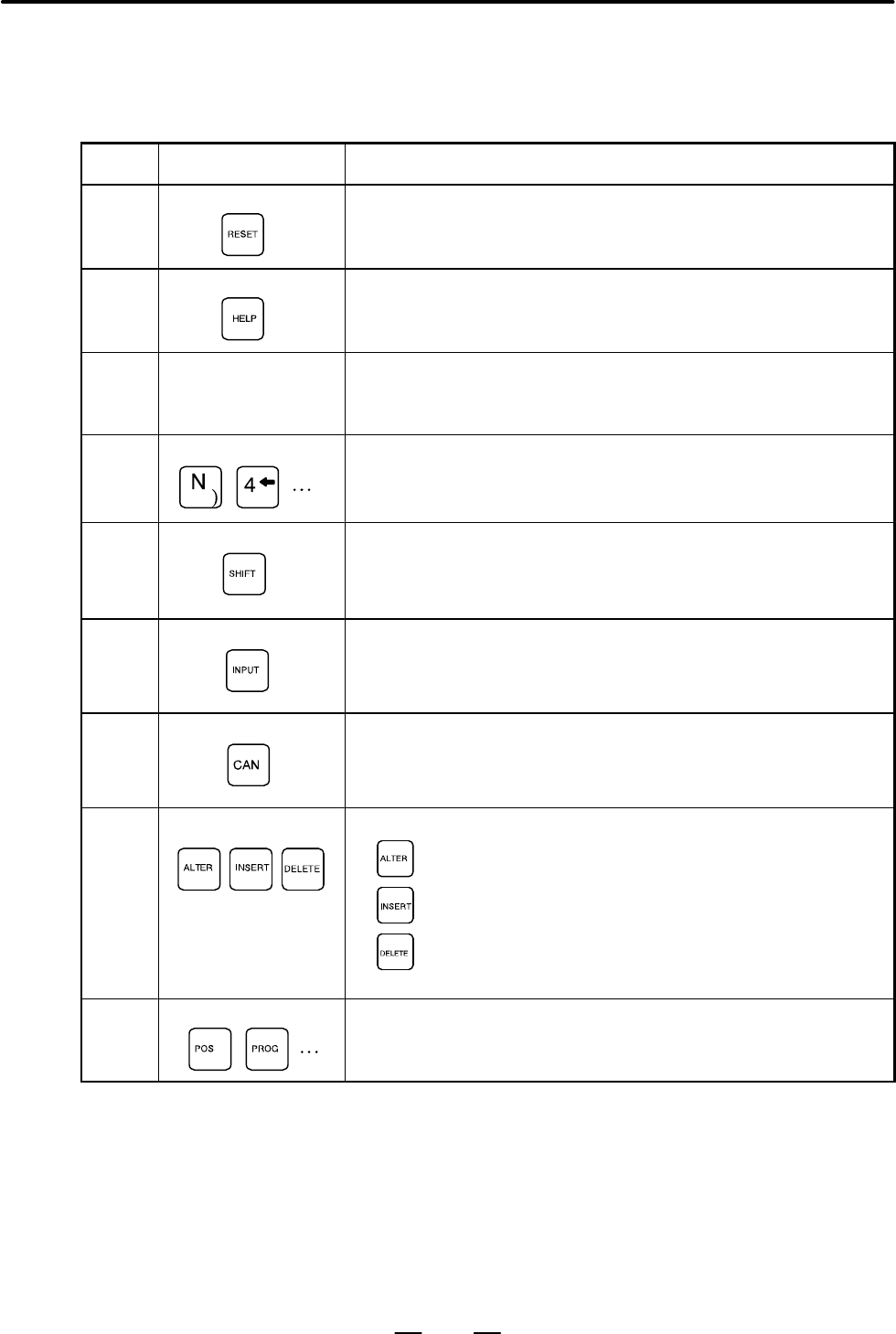

No. Key Function

(1)

Reset key Used to reset the CNC to release an alarm or other similar state.

(2)

Help key Used to get help with operations such as for the MDI keys, when the operator

does not know what to do next.

(3)

Soft keys The soft keys are assigned different functions depending on the application.

The functions currently assigned to the soft keys are displayed on the lower-

most line of the screen.

(4)

Address/numeric keys Used to enter letters and numbers.

(5)

Shift key Some of the address keys have two different letters. When the shift key is

pressed first before pressing one of these address keys, the lower-right letter

is input. When the shift key is pressed,

^ is displayed in the key input buffer

indicating that the lower-right letter will be input.

(6)

Input key Data input by pressing an address or numeric key is stored in the key input

buffer, then displayed. When data input to the key input buffer needs to be

written to the offset register, press the <INPUT> key. This key is equivalent

to soft key [INPUT]. Either key may be used.

(7)

Cancel key Used to delete letters or numbers input to the key input buffer.

Example)

When N001X100Z is displayed on the key input buffer, pressing the cancel

key deletes the letter Z, and N001X100 is displayed.

(8)

Edit keys Used to edit programs.

: Alter

: Insert

: Delete

(9)

Function keys Used to switch screens for each function.

24.2

EXPLANATION OF

THE KEYBOARD
