Series 16i/18i/160i/180i-PB Descriptions Page 123

Descriptions

Page of 330

/ 330

B–63682EN/01

13. FUNCTION TO SIMPLIFY

PROGRAMMING

NC FUNCTION

Workpieces are punched out with a start point specified by G72 or the

current tool position as a start point and with an end point (x, y) on a circle

with a radius of r in pitches of q, using a tool with a diameter of d.

G46

X x

Y y R r P d Q q ;

G47

G46 : Clockwise (CW)

G47 : Counterclockwise (CCW)

x:x–coordinate of the end point

y:y–coordinate of the end point

r : Radius of arc

r = 0 : Alarm 169

r < 0 : Arc with an angle of 180° or larger

r > 0 : Arc with an angle of 180° or less

d : Tool diameter (omissible)

d = 0 : Punching on the arc

d < 0 : Punching inside the arc

d > 0 : Punching outside the arc

q : Nibbling pitch

CAUTION

All units of measures are as entered.

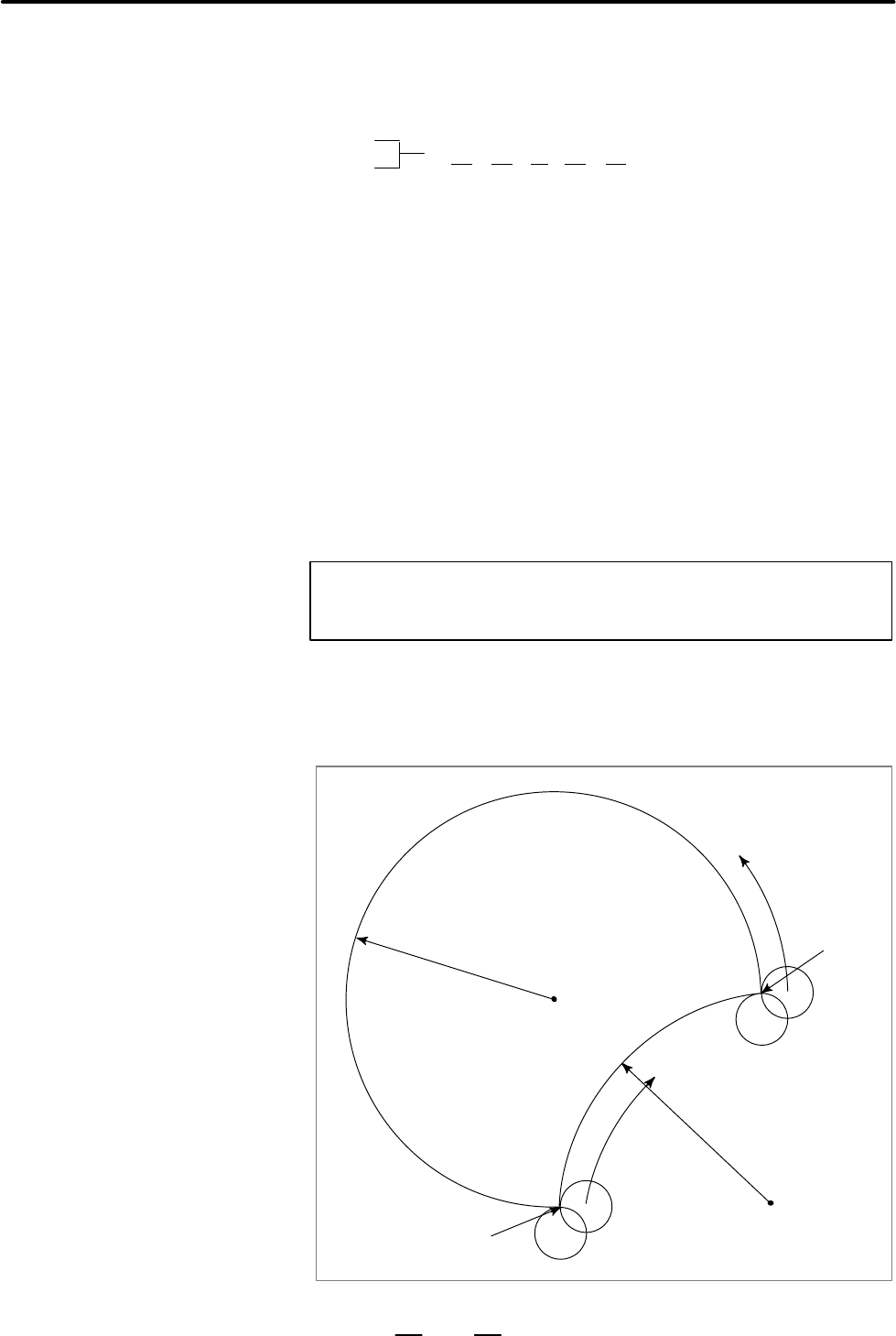

G72G90X100.Y100. ;

G46X200.Y200.R100.P–20.Q10. ; 

G47X100.Y100.R–100.P20.Q10. ; 



r=100

(100., 100.)

(200., 200.)

r=100



13.9

CIRCULAR

PUNCHING

COMMANDS G46

AND G47

Examples
