Series 16i/18i/160i/180i-PB Descriptions Page 158

Descriptions

Page of 330

/ 330

19. FUNCTIONS FOR HIGH SPEED

CUTTING B–63682EN/01

NC FUNCTION

134

The machine is accelerated/decelerated automatically when the

movement is started/stopped, so that the machine system should not be

applied with any shock. When programming, therefore, no consideration

needs to be made for acceleration/deceleration.

Especially when performing the high–speed arc cutting, however, the

actual tool passage may bring about some error against the designated arc

during circular interpolation due to this automatic acceleration/

deceleration.

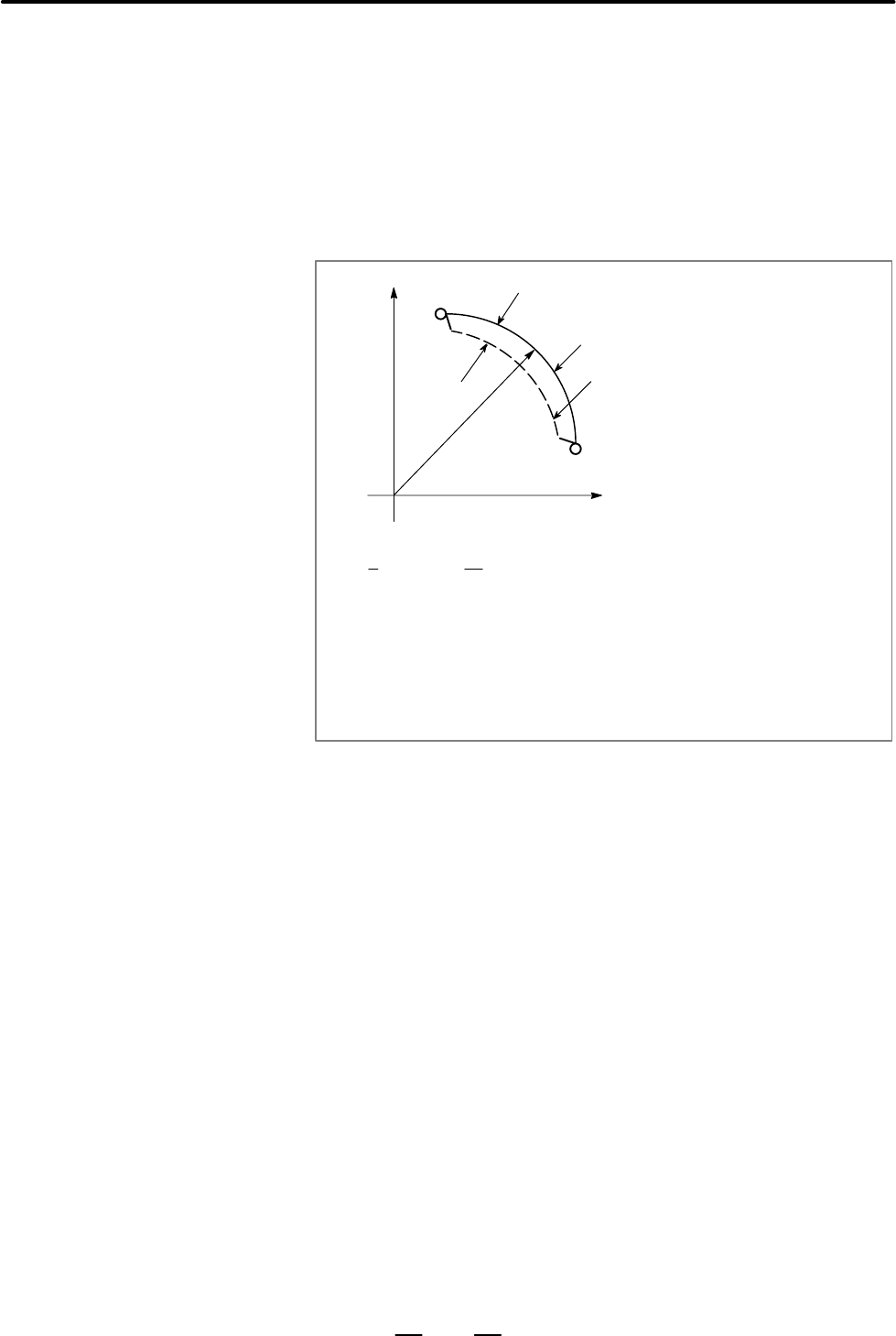

This error can approximately be given by the following formula;

Command path

Actual path

Dr +

) T

)

∆r : Maximum value of radius error (mm)

v : Feedrate (mm/sec)

r : Circular radius (mm)

: Exponential acceleration/deceleration time constant (sec)

: Time constant of servo motor (sec)

(1). . . . . . . . . . . .

∆r

When performing the actual machining, the actual arc machining radius

(r) and tolerance (delta r) are given, therefore, the maximum permissible

speed v (mm/min.) can be given by the formula–(1).

“Feedrate clamp by circular radius” is such function that the circular

cutting feed is automatically clamped when the feedrate designated may

exceed the permissible tolerance to radial direction against the circular arc

having optional radius designated by the program.

19.2

FEEDRATE CLAMP

BY CIRCULAR

RADIUS
