28. DATA INPUT/OUTPUT

B–63682EN/01

NC FUNCTION

206

DNC1 is a network originally developed by FANUC. Personal computer

FA supports a connection mode called mode 1 of DNC1. This mode

allows multi–point communication in which the personal computer

functions as a primary station to control multiple NCs. In personal

computer FA, up to 16 NCs can be connected to a single personal

computer. For details, refer to ”Personal Computer FA System Operator’s

Manual (B–75044EN).”

DNC1 board

(for NC)

Optical fi-

ber cable

COP1

Personal

computer

Optical

adapter B

Terminating

resistor unit

Ta p

Metal

cable

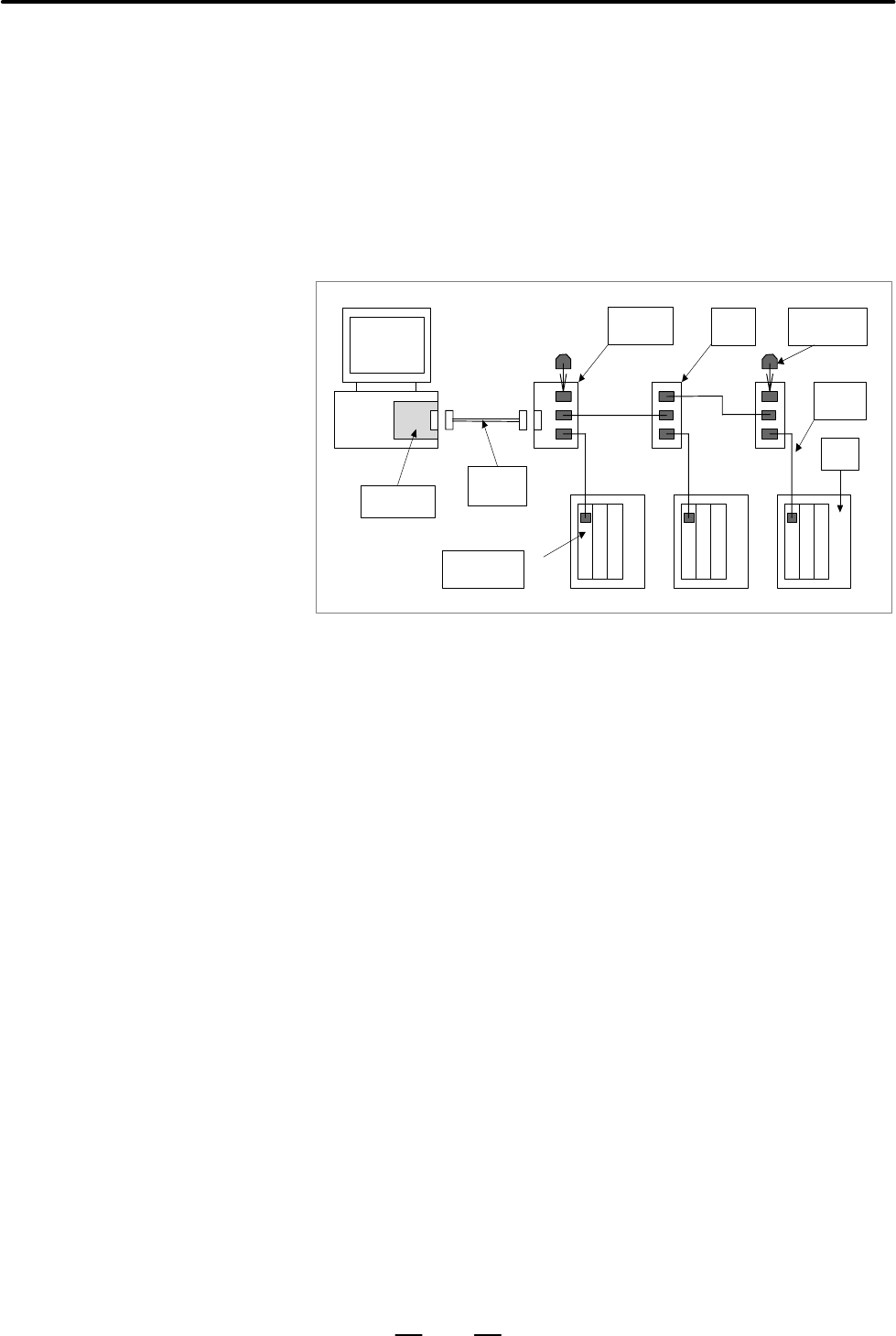

When three NCs and a personal computer are

connected via optical adapter B

User applications created using the FA library of personal computer FA

can perform the following processing:

z NC program file downloading started from the personal computer

z NC program file uploading started from the personal computer

z External reset

z Selection and deletion of NC programs

z Read of NC directory information

z Read of alarm information

z Read and write of tool offset values

z Read and write of custom macro variables

z Read of tool life management data

z Read and write of PMC data

z Read of NC identification information

z Read and write of NC parameters

z Notification of the start and end of NC program file downloading and

uploading started by an NC

28.6

DNC1 CONTROL

Connection example
