FS 16i/18i-TB Compound Machining Function Additional Manual Page 119

Additional Manual
FANUC Series 16i/18i-TB Compound Machining Function A-78656E/01
Nov.14.2001 Edition 1
118/127
8.2.2
Parameter to relate axes of the turning side to ones of the
milling side (No.13030)
You set the parameter No. 13030 to relate axes of the turning side to
ones of the milling side. The axis number which is controlled in the
turning mode(T-MOD) corresponding to one in the milling mode(M-
MOD) is set to this parameter.
Procedure
1.
You input DI signal G193#0(DTM) in order to display the screen
of the milling side (M-DSP)display
2.
You confirm the display “M-DSP” at the lower below of the
screen, then you set the parameter no. 1020.

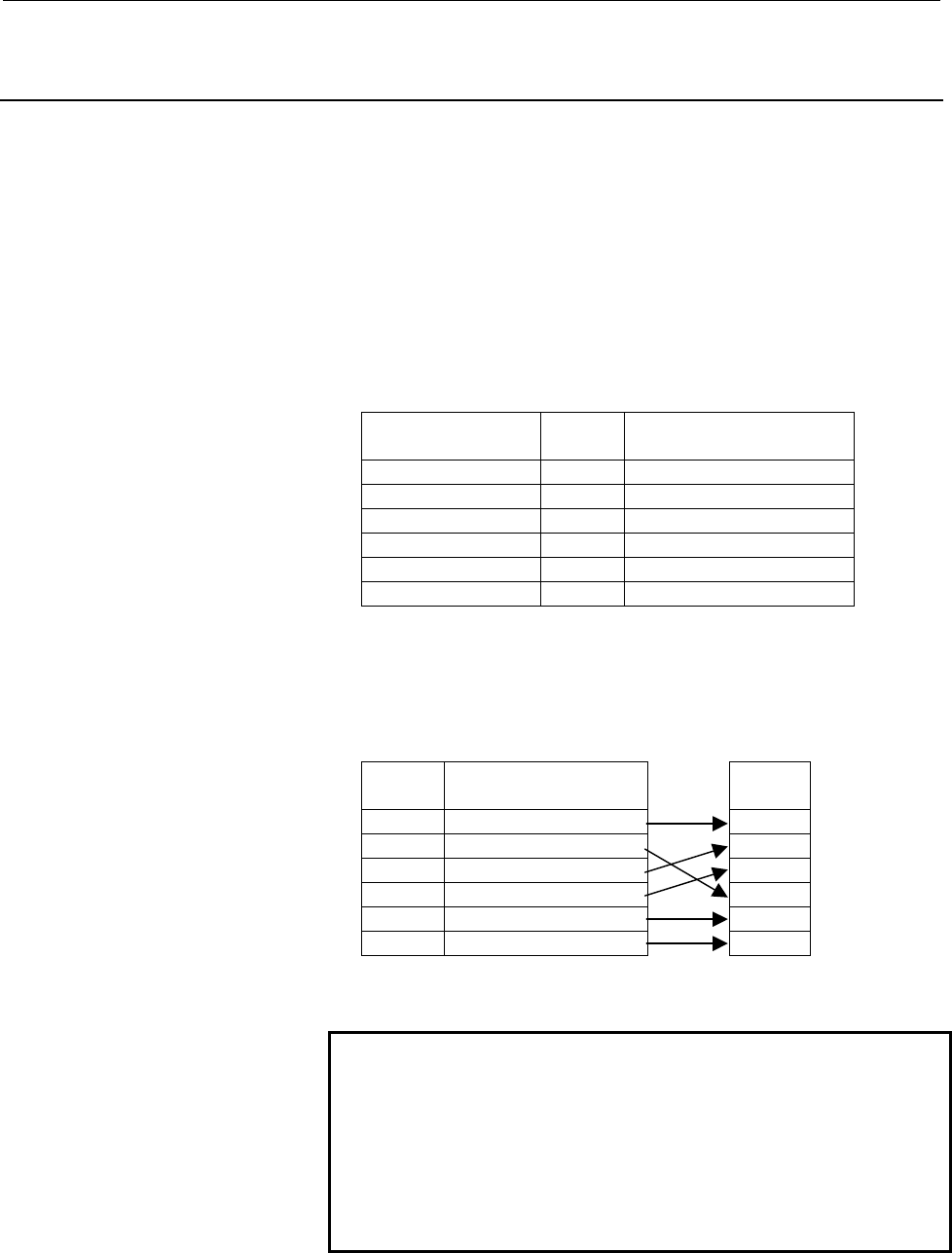

Example
Axis number of
M-DSP
Axis
name
The value of parameter
no. 1020
1
st
axis X 88
2
nd
axis Y 89
3
rd
axis Z 90
4
th
axis C 67
5
th
axis B 66
6
th
axis A 65
3.
You set the parameter no 13030 to the axis number of the turning
(T-DSP) side corresponding with the each axis number of the
milling side (M-DSP).
Example
M-DSP Value of parameter
13030
T-DSP
X1(1
st
axis of T-DSP) X
Y4(4
th
axis of T-DSP) Z
Z2(2
nd
axis of T-DSP) C
C3(3
rd
axis of T-DSP) Y
B5(5
th
axis of T-DSP) B
A6(6
th
axis of T-DSP) A
4.
You turn off the power of CNC, and then you turn it on.
NOTE
1. Every axis type parameter is managed in
accordance with the setting of the parameter 13030
in the compound machining function. Therefore, the
setting of the axis type parameter such as servo
parameters does not become correct.
2. It is necessary to turn the power off after setting the
parameter 13030.
