FS 16i/18i-TB Compound Machining Function Additional Manual Page 78

Additional Manual
A-78656E/01 FANUC Series 16i/18i-TB Compound Machining Function
77/127
Nov.14.2001 Edition 1
•

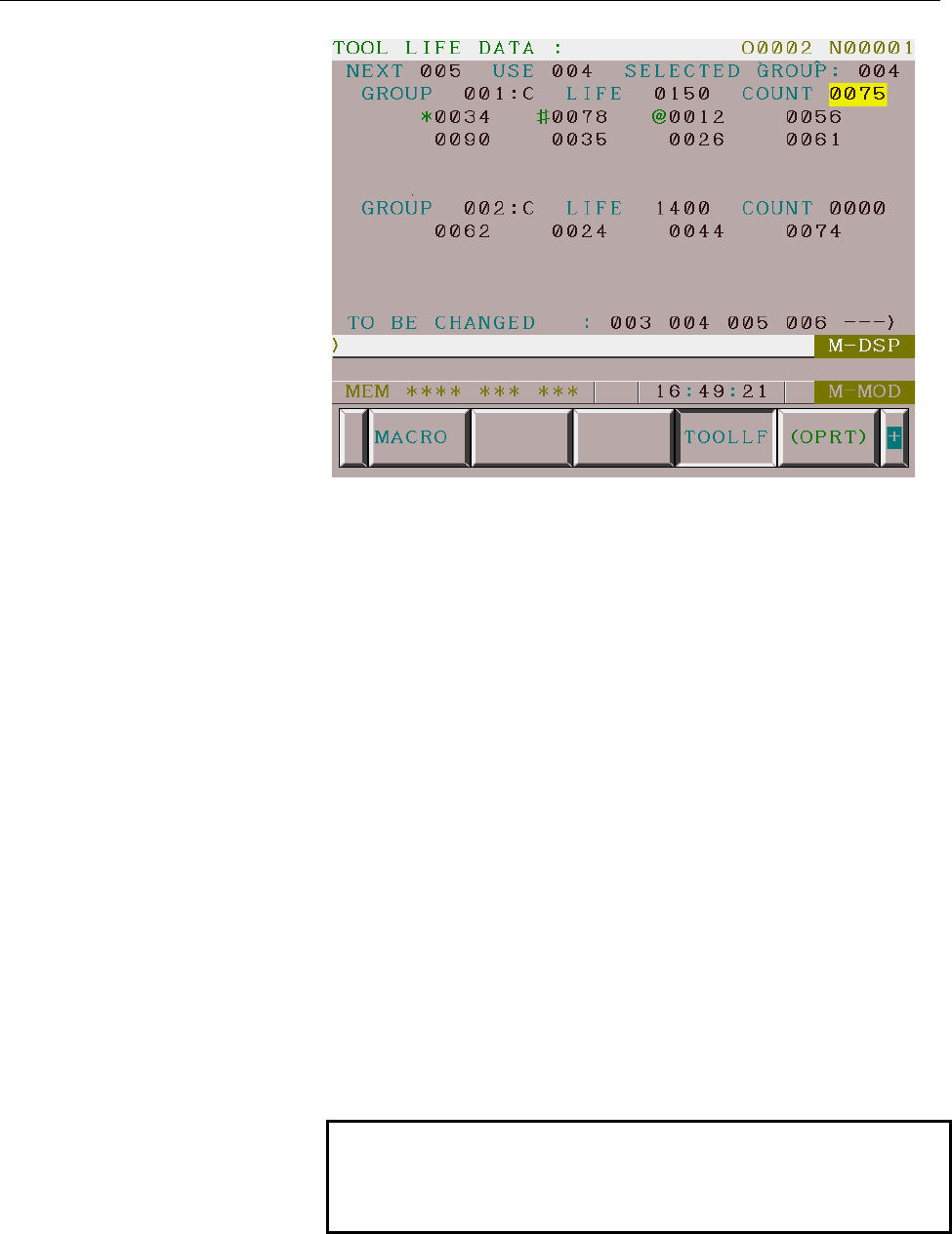

The first line is the title line.
•
In the second line, the group number of the current command is
displayed. When there is no group number of the current
command, 0 is displayed.
•
In lines 3 to 7, the tool life data of the group is displayed.
The third line displays group number, life, and the count used. The
life count is chosen by parameter No. 6800#2(LTM) as either
minutes (or hours) or number of times used.
I7n lines 4 to 7, tool numbers are displayed. In this case, the tool is
selected in the order, 0034 → 0078 → 0012 → 0056 → 0090 …
The meaning of each mark before the tool numbers is:
*: Shows the life has finished.
#: Shows that the skip command has been accepted.
@: Shows that the tool is currently being used.
The life counter counts for tool with @.
“*” is displayed when the next command is issued by the group to
which it belongs.
•
Lines 8 to 12 are next group life data to the group displayed in lines
3 to 7.
•
In the thirteenth line the group number when the tool change signal
is being emitted is displayed. The group number display appears in
ascending order. When it cannot be completely displayed, “→” is
displayed.
NOTE
Tool life management data is displayed only on milling
data screen. It cannot be displayed on turning data
screen.
