  2. Specification, Connection, Maintenance and PMC Programming of Handy machine operators panel

Specification, Connection, Maintenance and PMC Programming of Handy machine operators panel Additional Manual Page 11

Additional Manual
EDIT.
FANUC LTD
SHEET
DRAW. NO.
CUST.
TITLE
10
DESCRIPTIONDESIG.DATE
A
-80050E

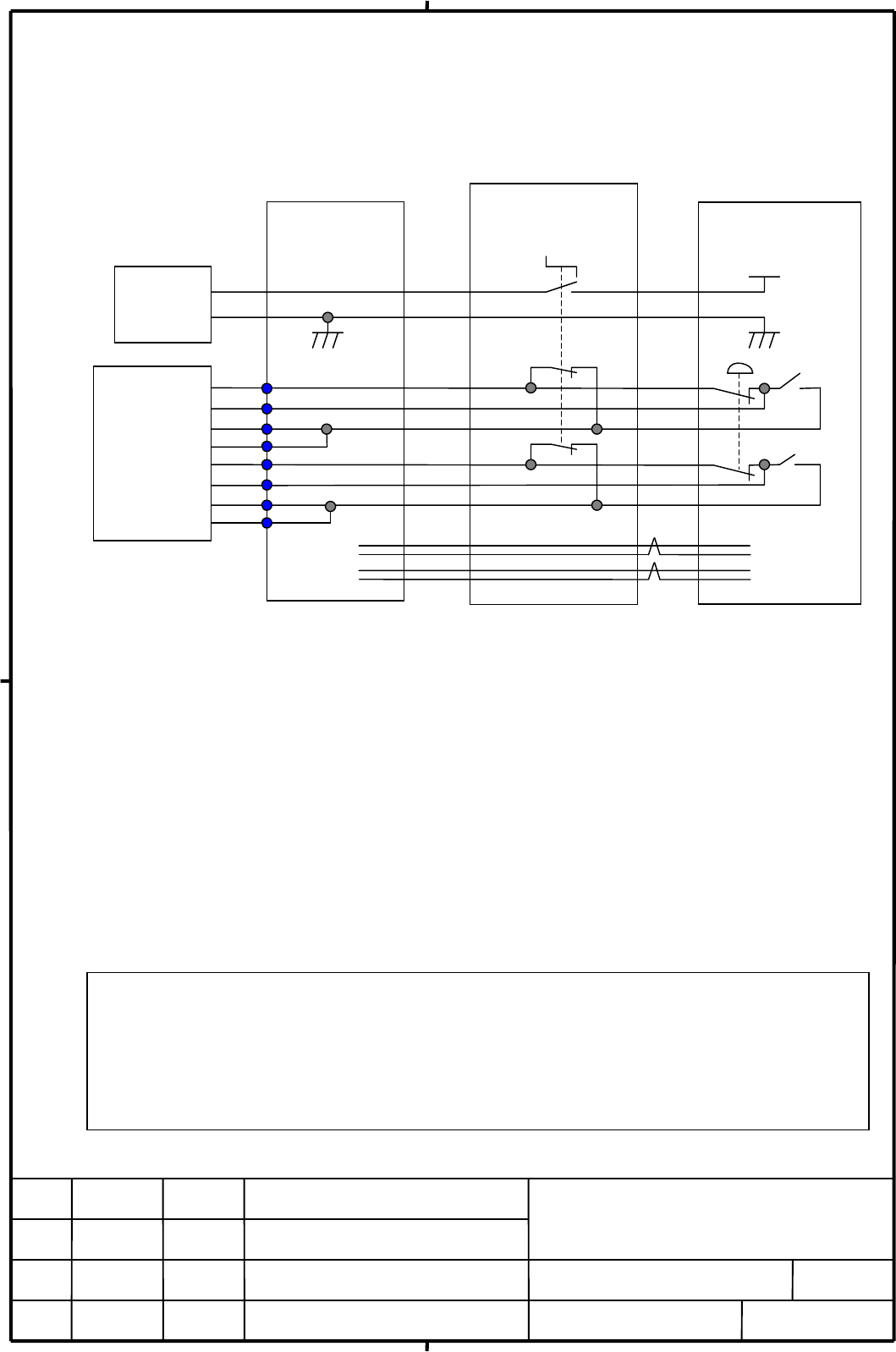

8. Connection panel
In the case of detachable connection, connection panel is necessary for connection/disconnection
to/from cabinet. Connection panel is prepared by MTB.
There are connector for connecting the handy machine operator’s panel and detachable connection
switch on the connection panel.
1) Detachable connection switch
One A contact and two B contacts are necessary for detachable connection switch. The switch
must have a key. It is necessary that the switch position cannot be changed without this key.
When the switch is off position,
・24VDC power is not supplied to handy machine operator’s panel.（Operation is not possible.）
・Emergency stop circuit on handy machine operator’s panel is not available, because emergency
stop line is bypassed on the connection panel.
When the switch is on position,
・24VDC power is supplied to handy machine operator’s panel.（Operation is possible.）
・Emergency stop circuit on handy machine operator’s panel is available, because emergency
stop line is opened on the connection panel.
2) Connector for connect/disconnect the handy machine operator’s panel
Please use a connector, which has 15 pins or more and doesn’t fall out while operation.
Please use connector which the 0V of interface unit is connected to 0V of handy machine
operator’s panel at first, when the cable of handy machine operator’s panel is connected.
Notice
Please keep the following notice, when detachable connection.
1. While operation, detachable connection switch must be ON, not OFF.
2. Detachable connection switch with key must be used. Operator must hold the key while
operation. The other person must not hold the key or the copy key.
3. When emergency stop is occurred with switches on handy machine operator’s panel,
emergency stop state must not be released with turning off the detachable connection switch.
Handy machine
operator’s panel
24VDC
Power
Interface unit
Connection panel
Detachable
connection switch
24V
Emergency
stop circuit
Serial
signal
Serial
signal
