11. FANUC standard key sheet A
FANUC standard key sheet A is as follows. This key sheet is put on the standard unit.
REF
SPINDL
START
SPINDL
STOP
RESET
HANDLE JOG
SPINDL
INC
SPINDL
DEC
MEM
FUNC
TION
MESSAG
RAPID
SINGLE
BLOCK
DRY
RUN
CYCLE
START
FEED
HOLD
When using this key sheet, memory operation “MEM”, manual handle feed “HANDLE”, manual
continuous feed “JOG” and manual reference position return “REF” are possible. We suppose that the
following operation and display is done by PMC ladder program.
1) Memory operation
XYZ
456
REF
SPINDL
START
SPINDL
STOP
RESET
HANDLE JOG
SPINDL
INC
SPINDL
DEC
＋
＋＋
＋
×n MEM
FUNC
TION
MESSAG RAPID
SINGLE
BLOCK
DRY
RUN
CYCLE
START
FEED
HOLD
・When the “MEM” key is pushed, mode is changed to MEM operation mode.
・When the “CYCLE START” key is pushed, automatic operation is started.
・When the “FEED HOLD” key is pushed, automatic operation is stopped.
・When the “RESET” key is pushed, CNC is reset.
Reset and rewind signal should be on for rewinding part program.
・Override can be applied to feedrate speed by the override switch on handy machine operator’s
panel. Set feedrate override signal from 0% to 120% according to the override switch position.
・When the “×n” key is pushed, rapid traverse override is applied. Please rotate the setting value
100%→50%→25%→F0→100% by each pushing this key.
・For test operation, Dry run “DRY RUN” and single block “SINGLE BLOCK” are available.
・One axis position is displayed normally. When the “XYZ 456” key is pushed, next axis position is
displayed.
<Display example>
Program number Block number Present rapid override
O1000 N0010 100%
X- 99999 . 999 120
％
Position display Present feedrate override
2) Manual handle feed
F1
×
××
×n
XYZ
456
Previous page
Next page

Contents Summary of Specification, Connection, Maintenance and PMC Programming of Handy machine operators panel Additional Manual

  • Page 1TECHNICAL REPORT (MANUAL) NO.TMN 01/119E Date 2001. . General Manager of Hardware Laboratory Specification, Connection, Maintenance and PMC Programming of Handy machine operator’s panel 1. Communicate this report to: Your information GE Fanuc-N, GE Fanuc-E FANUC Robotics MILACRON ○ Machine tool buil
  • Page 2Specification, Connection, Maintenance and PMC Programming of Handy machine operator’s panel Table of Contents Specification 1. Outline ..................................................................................................................4 2. Specification ...............................
  • Page 3Connection 1. Details connection (Keeping at all times） ） .....................................................18 1.1 Total connection ...................................................................................... 19 1.2 Details of handy machine operator’s panel cable J186 ..................
  • Page 44.4 Character Display on LCD...................................................................... 36 4.4.1 LCD display control1 .................................................................... 37 4.4.2 LCD display control2 .................................................................... 37
  • Page 5Specification of Handy machine operator’s panel 1. Outline Handy machine operator’s panel is a small size machine operator’s panel for controlling machine tool near machine. Handy machine operator’s panel has a manual pulse generator, a small size LCD, input keys, an emergency stop button and an ena
  • Page 63. Mainly functions ・ Input keys, operation ON/OFF switch and override switch on the handy machine operator’s panel are read by PMC ladder program. ・ The position and messages with figures/alphabet/kana are displayed on the LCD by PMC ladder program. ・ The LEDs near the input keys are turned on/off
  • Page 75. External figure 5.1 Handy machine operator’s panel Emergency stop button Hole for installation 2 lines×16 characters LCD Single LED Operation ON/OFF switch Override Input key switch with LED ×20 3 positions enabling switch Manual Pulse Connector CA74 Installation method Cabinet Installation metal
  • Page 85.2 Interface unit The outline of interface unit is same as connector panel I/O (A03B-0815-C001). Connector terminal TNB Fuse FU1 LED LI LD PO MS E0 E1 E2 Installation side Connector to handy machine operator’s panel JD47 I/O Link I/O Link JD1A JD1B 70mm space at front and under of this unit are nec
  • Page 96. System diagram 6.1 In the case of keeping unit always Cabinet Emergency input DI CNC FANUC I/O Link To next I/O Link unit 24V Interface Emergency Power supply unit stop circuit Servo Emergency amplifier stop input Handy machine operator’s panel 6.2 In the case of detachable connecting Cabinet Eme
  • Page 107. Emergency stop circuit The emergency stop button and the enabling switch on the handy machine operator’s panel are parts of emergency stop circuit in this system. CNC and servo amplifier must be connected this emergency stop circuit. In the case of detachable connection, the emergency line is byp
  • Page 118. Connection panel In the case of detachable connection, connection panel is necessary for connection/disconnection to/from cabinet. Connection panel is prepared by MTB. There are connector for connecting the handy machine operator’s panel and detachable connection switch on the connection panel. C
  • Page 129. Control & connection/disconnection sequence ・Starting operation with handy machine operator’s panel Operation ON/OFF switch of handy machine operator’s panel is OFF. 1) The handy machine operator’s panel is connected to the connection panel. (In the case of detachable connection） 2) The detachabl
  • Page 1310.2 Enabling switch This switch is used for keeping operator’s safety when there is a possibility that the operator using the handy machine operator’s panel exposes him to danger, example the observation working in the protection cover of cutting part, and the working in the fence for danger area.
  • Page 1410.6 LED with input key LEDs are attached with each 20 input keys. These LEDs are turned on/off by PMC ladder program. 10.7 Single LED There are two LEDs, which is turned on/off by system of handy machine operator’s panel. 1) EN (green); Power on state 2) ALM (red); Watchdog alarm of unit or fusing

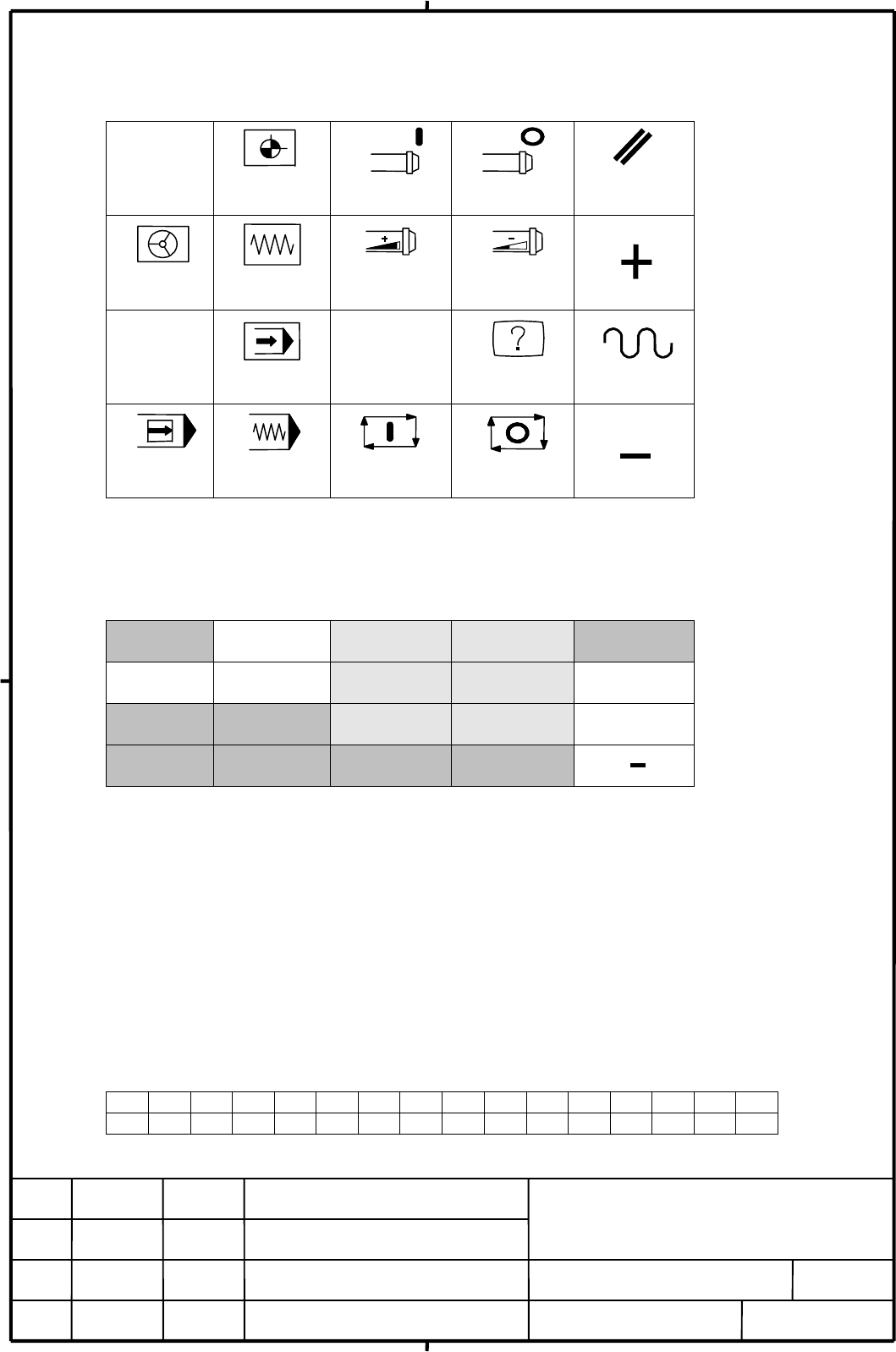

  • Page 1511. FANUC standard key sheet A FANUC standard key sheet A is as follows. This key sheet is put on the standard unit. XYZ 456 SPINDL SPINDL REF RESET START STOP SPINDL SPINDL HANDLE JOG INC DEC ×n F1 FUNC MEM MESSAG RAPID TION SINGLE DRY CYCLE FEED BLOCK RUN START HOLD When using this key sheet, memo
