B-63994EN/02 SETTING 1.PROFIBUS-DP MASTER FUNCTIONS
- 11 -
BUS PARAMETER screen
Procedure
1 Press soft key [BUS PARAM] to display the BUS
PARAMETER screen.
2 On the BUS PARAMETER screen, page keys
PAGE
PAGE
can be
used to switch between pages.
3 Move the cursor to the item to set and then enter the parameter.
- Set each parameter as described in the Setting item later.
- Press soft keys [(OPRT)] then [INITIALIZE] to initialize
the remaining bus parameters in conformity with
BAUDRATE.
- For MASTER USER DATA, only a specified size of data
can be input.
- CLASS2 NAME is a parameter that is input by connected
class 2. It does not need to be input from this screen.

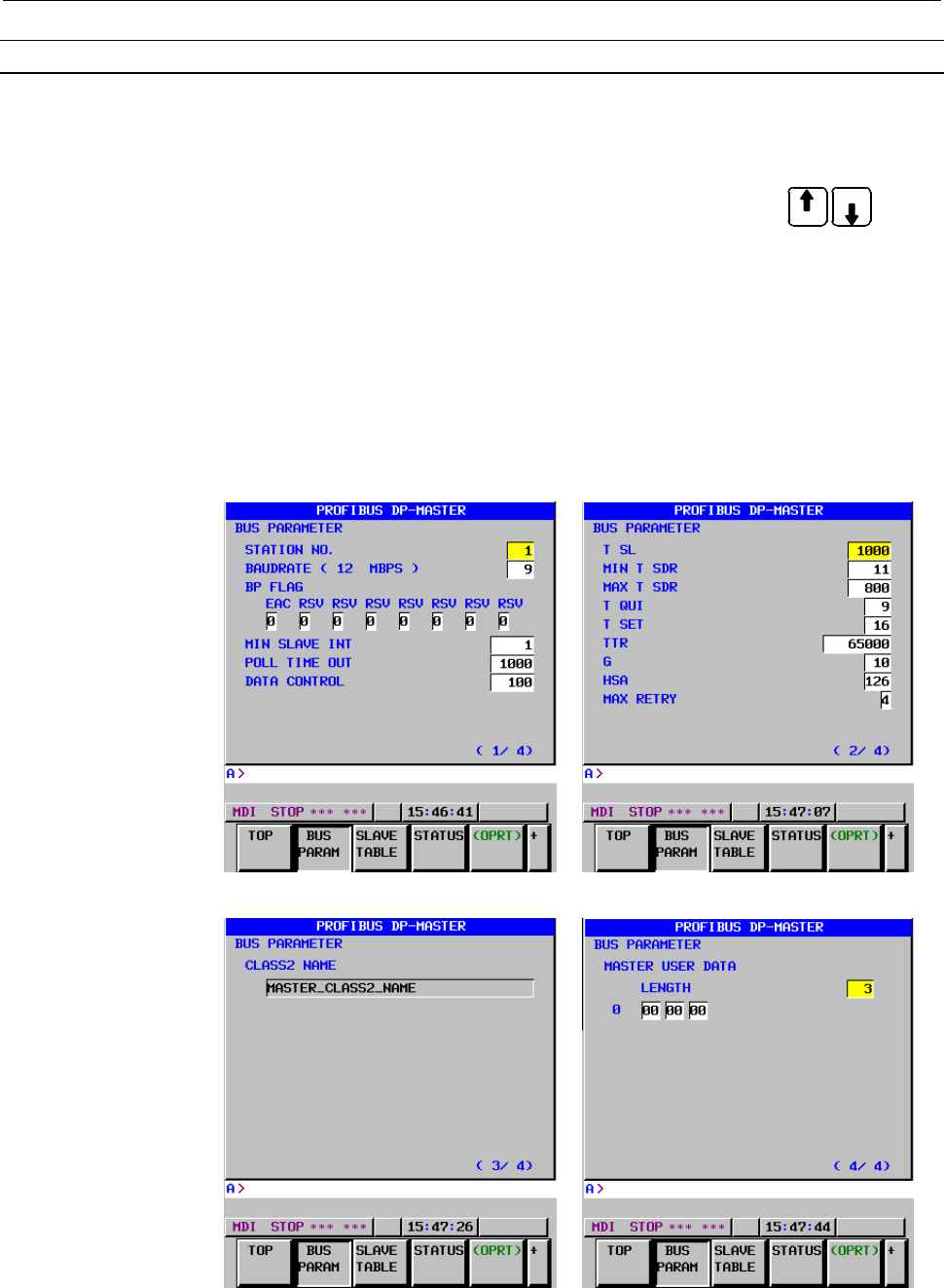

BUS PARAMETER screen
BUS PARAMETER screen BUS PARAMETER screen
(CLASS2 NAME) (MASTER USER DATA)
Previous page
Next page
