B-63994EN/02 SUPPLEMENT A.SETTING BY USING A PERSONAL COMPUTER
- 87 -

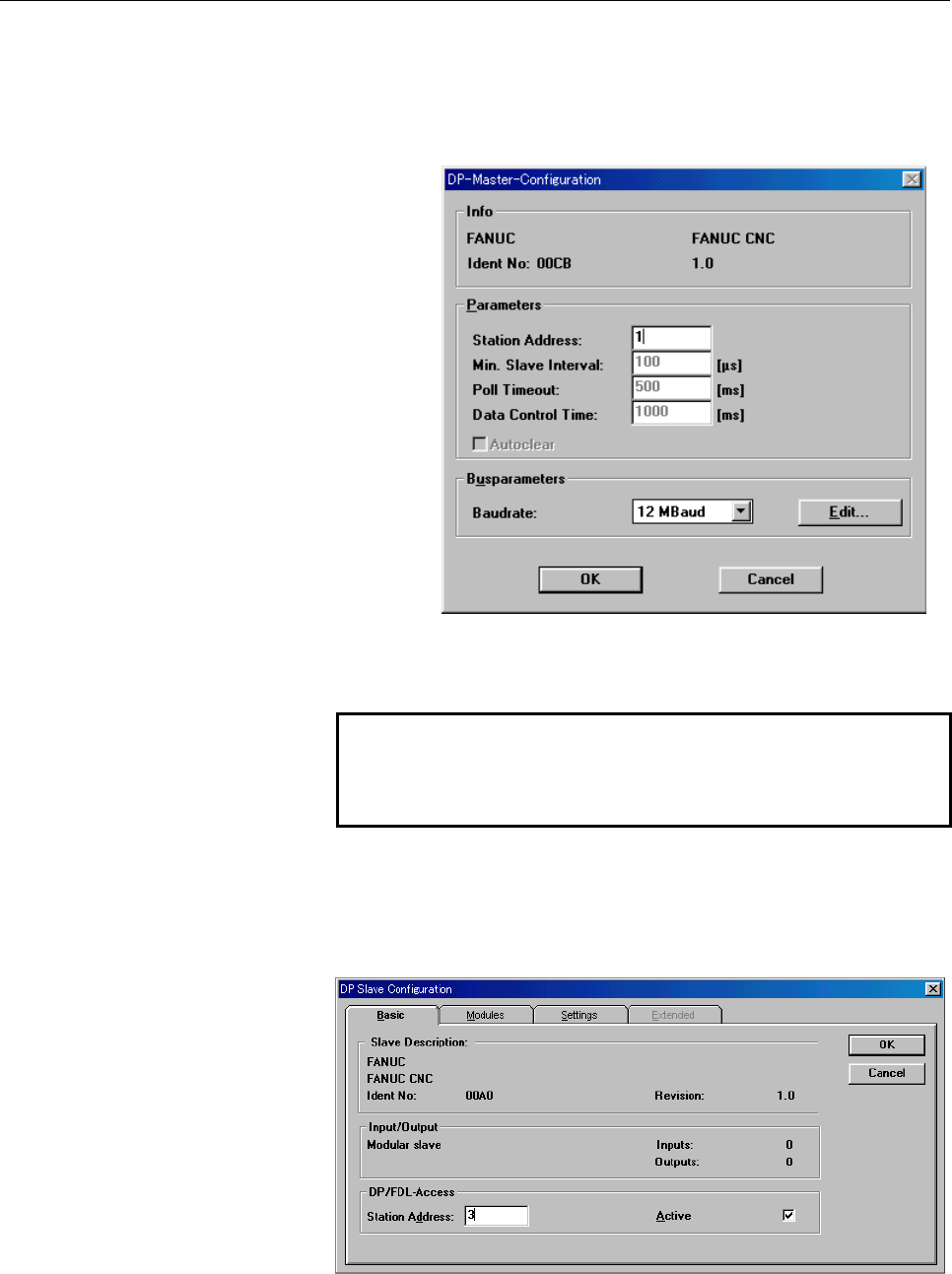

(4) Select a master station for remote downloading from Master
Selection List under DDB Selection List on Screen A-7. Screen
A-8 is displayed.
These parameters are used as the bus parameters to be remotely
downloaded.
Screen A-8
On Screen A-8, set values for Station Address and Baudrate.
NOTE
For Softing PROFIBUS-DP Configurator, the
default TTR value is 50000. Click Edit and change
the TTR value to 65000.
(5) Select a slave station for remote downloading from Slave
Selection List under DDB Selection List on Screen A-7. Screen
A-9 is displayed.
These parameters are used as the slave parameters to be remotely
downloaded.
Screen A-9
On Screen A-9 set a value for Station Address.
