Profibus DP-Board for Operators manual Page 98

Operators manual
A.SETTING BY USING A PERSONAL COMPUTER SUPPLEMENT B-63994EN/02
- 90 -
NOTE
1 The station number specified for Station Address
on Screen A-12 is used when PROFIBUS-DP
Configurator is attached to the network. For this
reason, do not specify the station numbers of the
FANUC master station and other master and slave
stations on the network.
2 Set the same baud rate as for the FANUC master
station or another master station on the network.
3 When the baud rate is 19.2 or 9.6 kbps, set 10000
[msec] for Poll Timeout of PROFIBUS-DP
Configurator. At this time, the values set for Poll
Timeout for the FANUC master station or another
master station on the network need not be
changed.

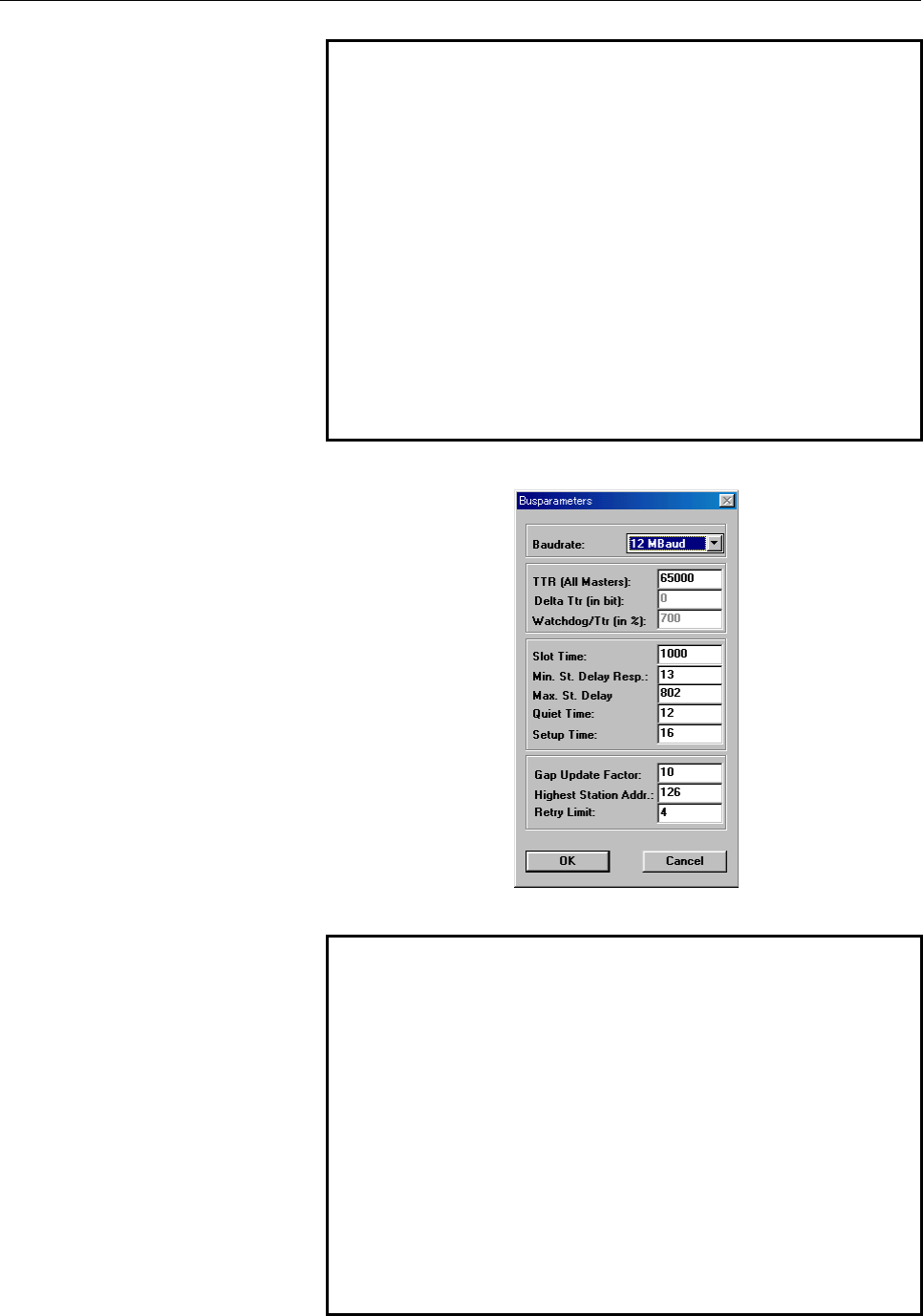

(9) Then, click Edit on Screen A-12. Screen A-13 is displayed.
Screen A-13
NOTE
1 For Softing PROFIBUS-DP Configurator, the
default TTR value is 50000. Change the TTR
value to 65000.
2 Change the values of the following three
parameters on Screen A-14 only when the baud
rate is 12 Mbps:
- Min. St. Delay Resp. : 11 → 13
- Max. St. Delay : 800 → 802
- Quiet Time : 9 → 12
At this time, the values set for these three
parameters for the FANUC master station or
another master station on the network need not
be changed.
