B-63994EN/02 SUPPLEMENT A.SETTING BY USING A PERSONAL COMPUTER
- 83 -
(5) Start PROFIBUS-DP Configurator and open Options, then PC
Interface. Screen A-2 is displayed.
On Screen A-2, select an I/F board type for PROFIBUS Interface
under Type.

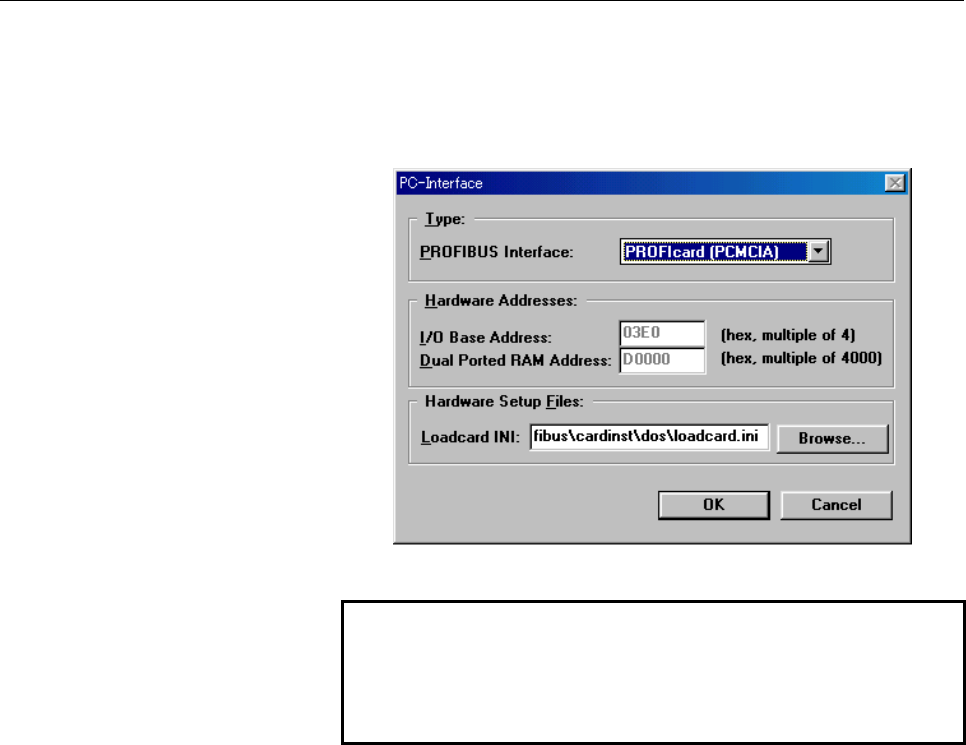

When PROFIcard is selected, Screen A-2 below is displayed.
Screen A-2
NOTE
When the I/F board type is PROFIcard, set a file
for Loadcard INI under Hardware Setup Files. The
file is stored on cardinst (dos/loadcard.ini) which is
a floppy disk provided by Softing. Specify the file.
A general initial setting procedure for using PROFIBUS-DP
Configuration is shown above. A general operation procedure for
remote downloading is shown below.
