B-63994EN/02 SETTING 1.PROFIBUS-DP MASTER FUNCTIONS
- 15 -
SLAVE TABLE screen
Procedure
1 Press soft key [SLAVE TABLE] to display the SLAVE TABLE
screen.
2 On the SLAVE TABLE screen, page keys
PAGE
PAGE
can be
used to switch between pages.
3 Move the cursor to the item to set and then enter the parameter.
- Set the parameters for NO, NSL, DGN ADDR, and SIZ for
each index.

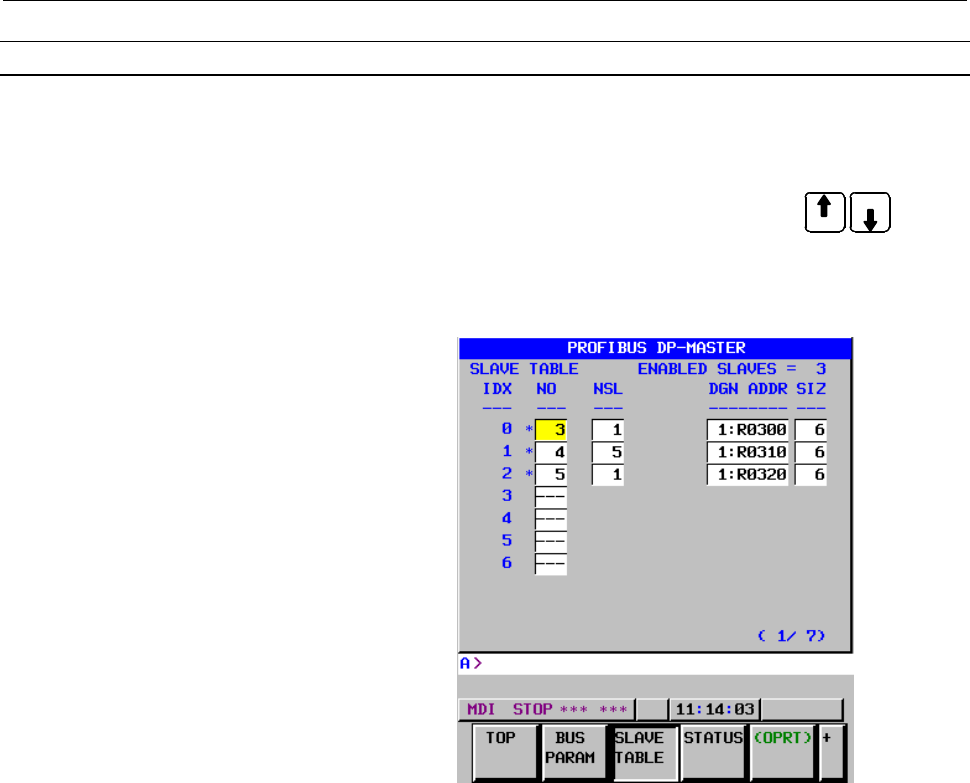

SLAVE TABLE screen
4 Press soft key [(OPRT)] as needed and then use the following
soft keys.
[ENABLE] :
Enables the slave station on which the cursor is placed. "*"
appears to the left of the station number (NO) of the slave
stations for which communication is enabled.
[DISABLE] :
Disables the slave station on which the cursor is placed.
[REFRESH] :
Sorts slave stations in ascending order of slave number.
The lines on which a station number is not displayed are
occupied by the following data.
[ AUTO (NO.) ] :
Pressing soft key [AUTO(NO.)] after entering the number
of stations sets contiguous station numbers for IDX of the
station numbers of the slave station on which the cursor is
placed and later stations.
