2.1 Ethernet LOG
A log related to the FAST Ethernet/FAST Data Server is displayed.

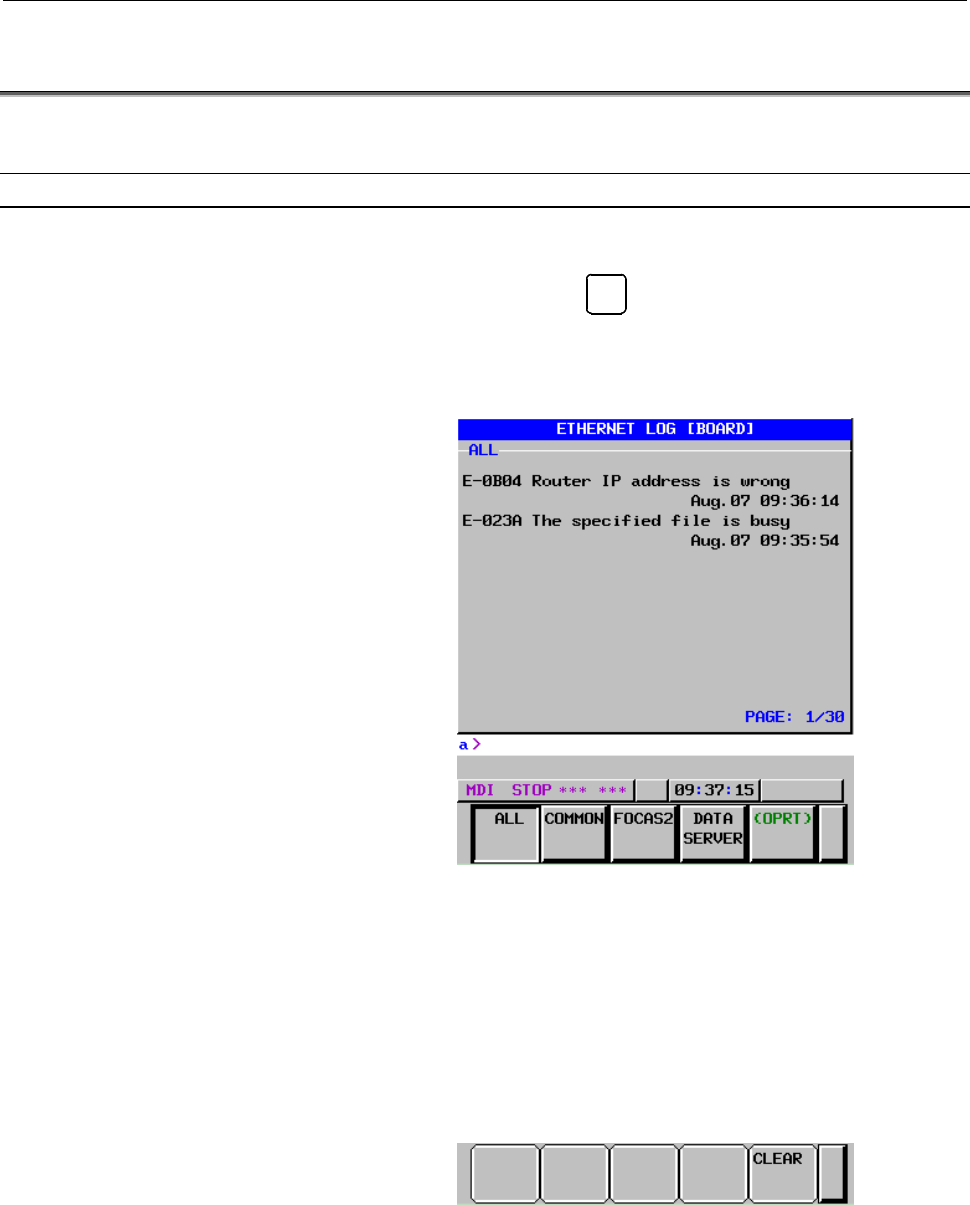

ETHERNET LOG screen
Procedure
1 Press the function key
MESSAGE
.
2 Press soft key [BOARD LOG] to display the LOG screen for the
FAST Ethernet/FAST Data Server. (If the soft key is not found,
press the continuous menu key.)
LOG screen
The latest log information is displayed at the top of the screen. At the
right end of a log item, the occurrence date and time of the log item is
indicated. Date and time data is indicated in the format "MMM.DD
hh:mm:ss", where MMM represents a month, DD represents a day, hh
represents hours, mm represents minutes, and ss represents seconds.
The top item in the example above indicates "09:36:14 on August 7".
To clear the log information, press soft key [(OPRT)] then soft key
[CLEAR].
