B-64014EN/03 APPENDIX B.EXAMPLE OF FTP SERVER SETUP
- 195 -
Confirming the Firewall function of Windows XP
Because the Internet Connection Firewall function is included in the
Windows XP Professional, the Data Server cannot communicate with
the FTP server.
If the FTP connection cannot be established, confirm the following
setting of the Internet Connection Firewall function.
NOTE
When settings are made as described below, the
FTP server functions and response to PING, which
have been disabled by the network security
function, are enabled.
Therefore, when making the following settings,
consult with your network administrator, and take
special care.
In some cases, it becomes necessary to isolate the
network from the outside as required.

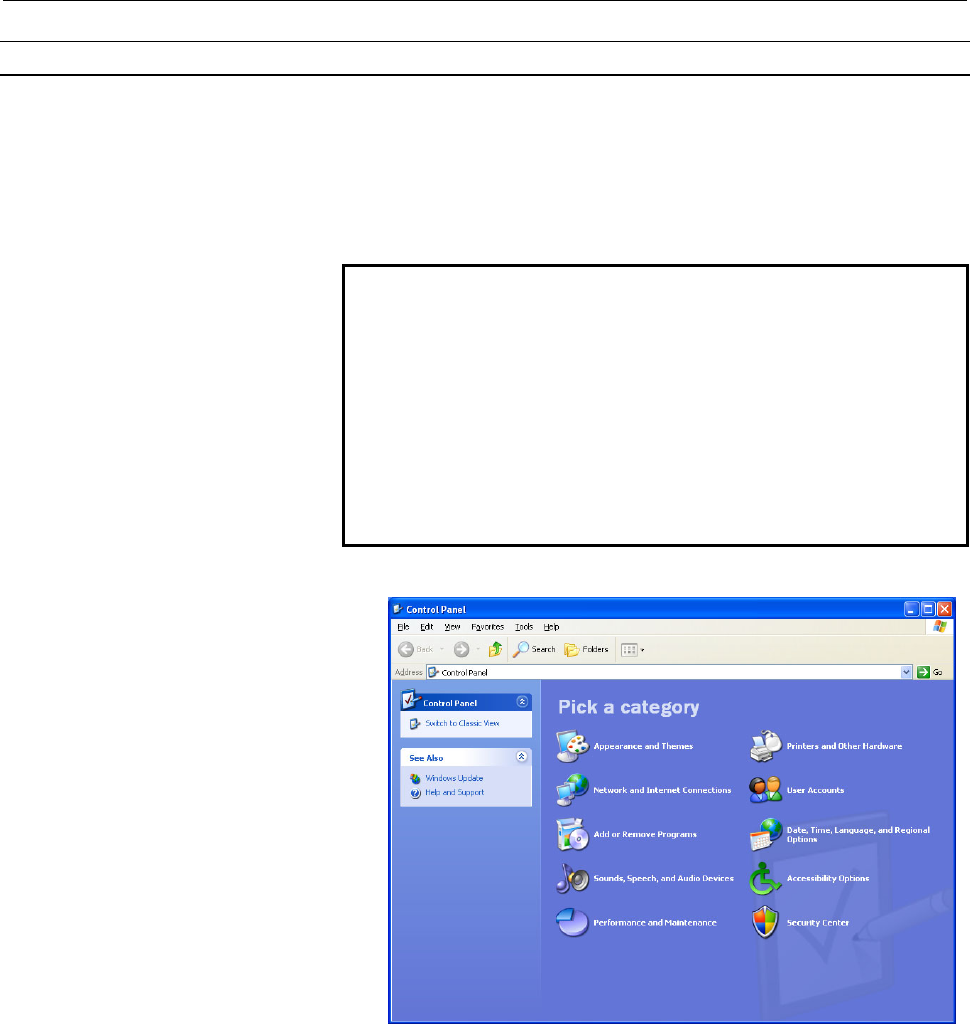

1. Open [Control Panel] of Windows XP Professional.
