6.ERROR MESSAGES DISPLAYED DURING PARAMETER SETTING SETTING B-64014EN/03
- 80 -
6 ERROR MESSAGES DISPLAYED
DURING PARAMETER SETTING

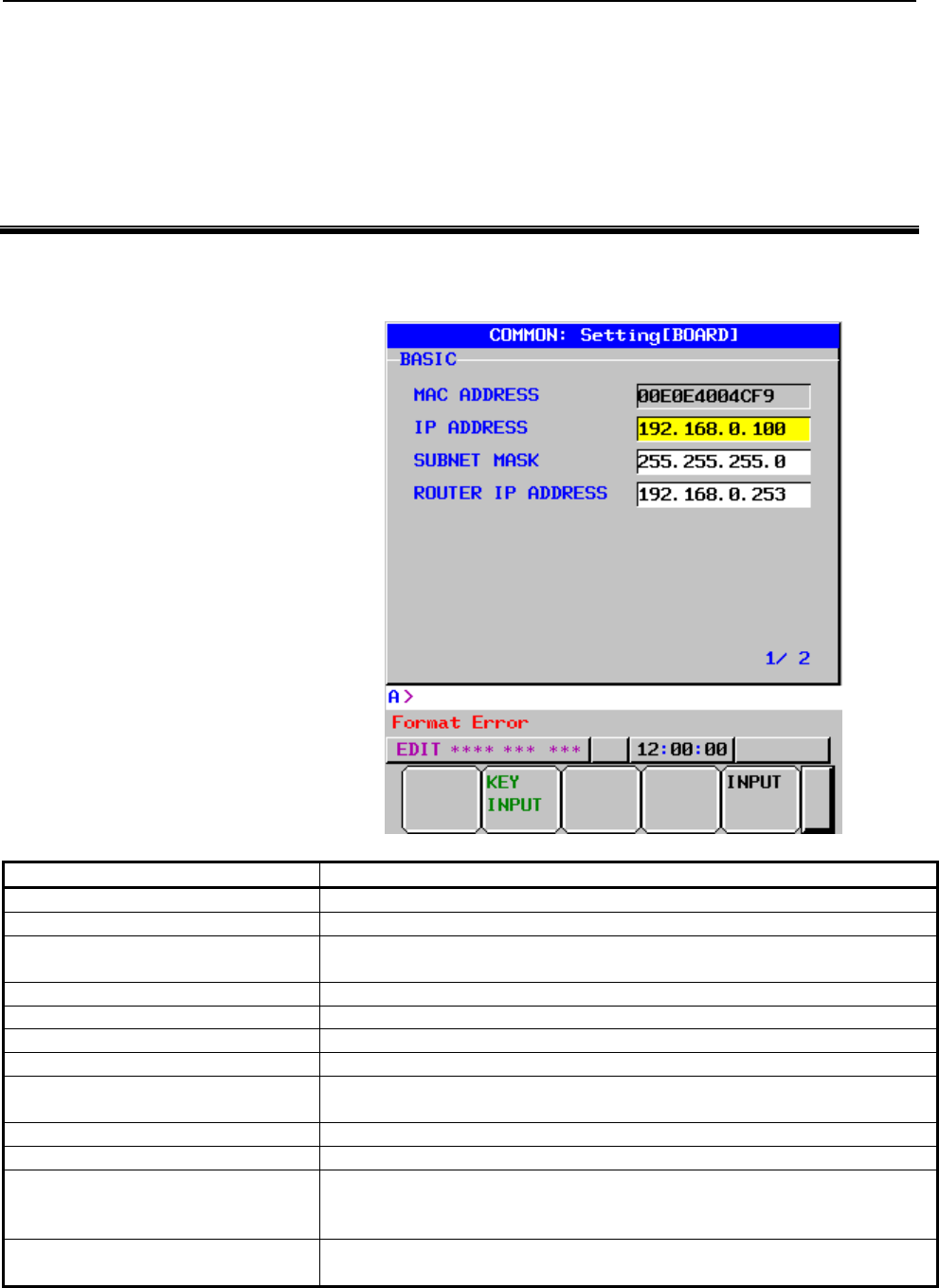

This chapter explains the error messages that are issued when FAST
Ethernet/FAST Data Server parameters are set.
Messages Meaning and action to be taken
Communication Software is not found Check whether the communication software is installed.
Ethernet board is not found Check whether the Ethernet board is installed.
Software Version Error The communication software version is illegal.
Check the software version.
DATA IS OUT OF RANGE A numeric parameter value is beyond the range.
Wrong Character(s) An illegal character is used in a character parameter.
Format Error Input data such as an IP address has an illegal input format.
too many figures A value input in a numeric parameter consists of too many digits.
Data was rejected A parameter error is found.
Confirm the setting conditions described in the relevant manual.
Reading from SRAM failed SRAM may have been destroyed.
Writing into SRAM failed SRAM may have been destroyed.
DHCP is available When the DHCP function is enabled, it is impossible to input parameters
manually from the setting screen.
To input parameters manually, disable the DHCP function.
Error(xxxx) Other errors.
Check the parameter settings and contact FANUC.
