5.SETTING THE MACHINE REMOTE DIAGNOSIS FUNCTIONS SETTING B-64014EN/03
- 70 -
MACHINE REMOTE DIAG screen (COMMON)

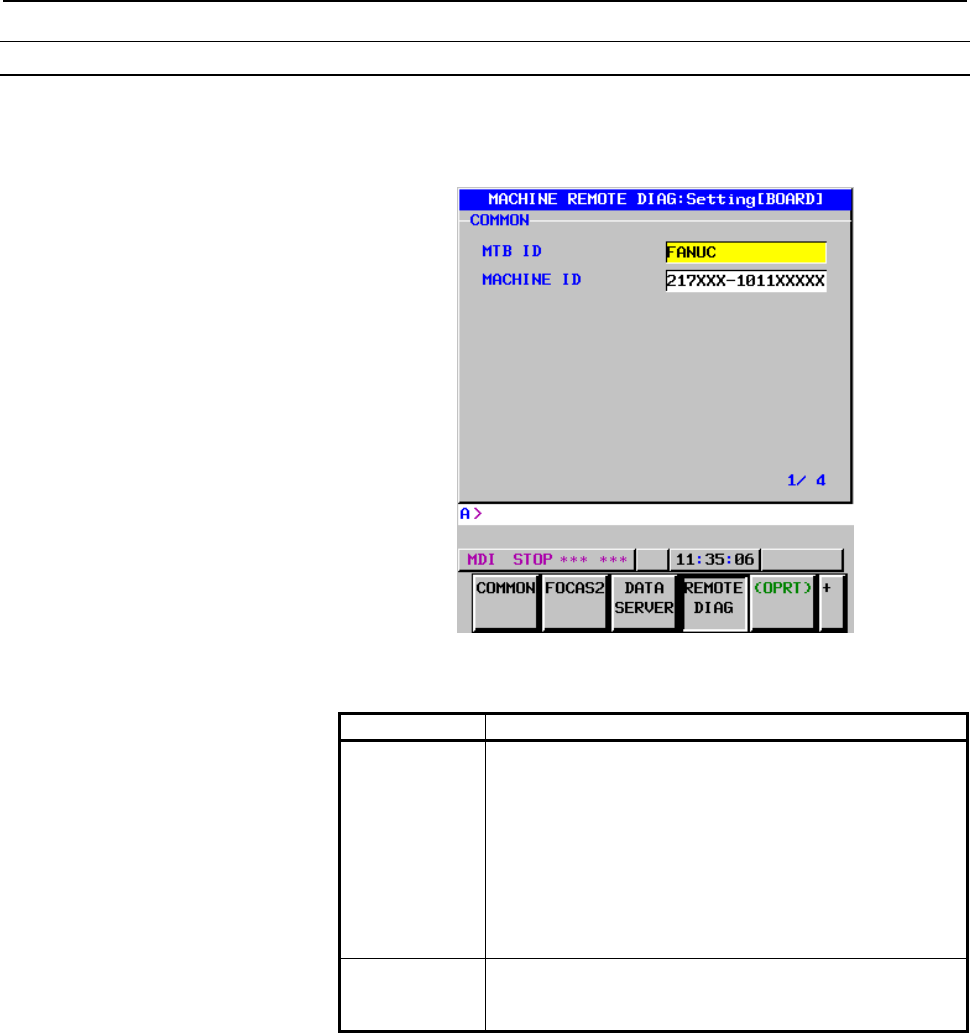

Press soft key [REMOTE DIAG] to display the MACHINE REMOTE
DIAG screen (COMMON).
Machine remote diagnosis screen (BASIC)
Setting item
Item Description
MTB ID This information is required by the machine remote
diagnosis package to confirm that the diagnosis request is
issued from a machine manufactured by the machine tool
builder. The MTB identification information on the
diagnosis accepting server of the machine remote
diagnosis package can be set to accept diagnosis
requests only from the machines manufactured by the
machine tool builder.
(Example of specification format: "FANUC")
MACHINE ID Information required by the machine remote diagnosis
package to identify the machine under diagnosis
(Example of specification format: "217xxx-1011xxxxx")
Previous page
Next page
