B-64014EN/03 SETTING 2.SETTING THE DATA SERVER FUNCTIONS
- 35 -

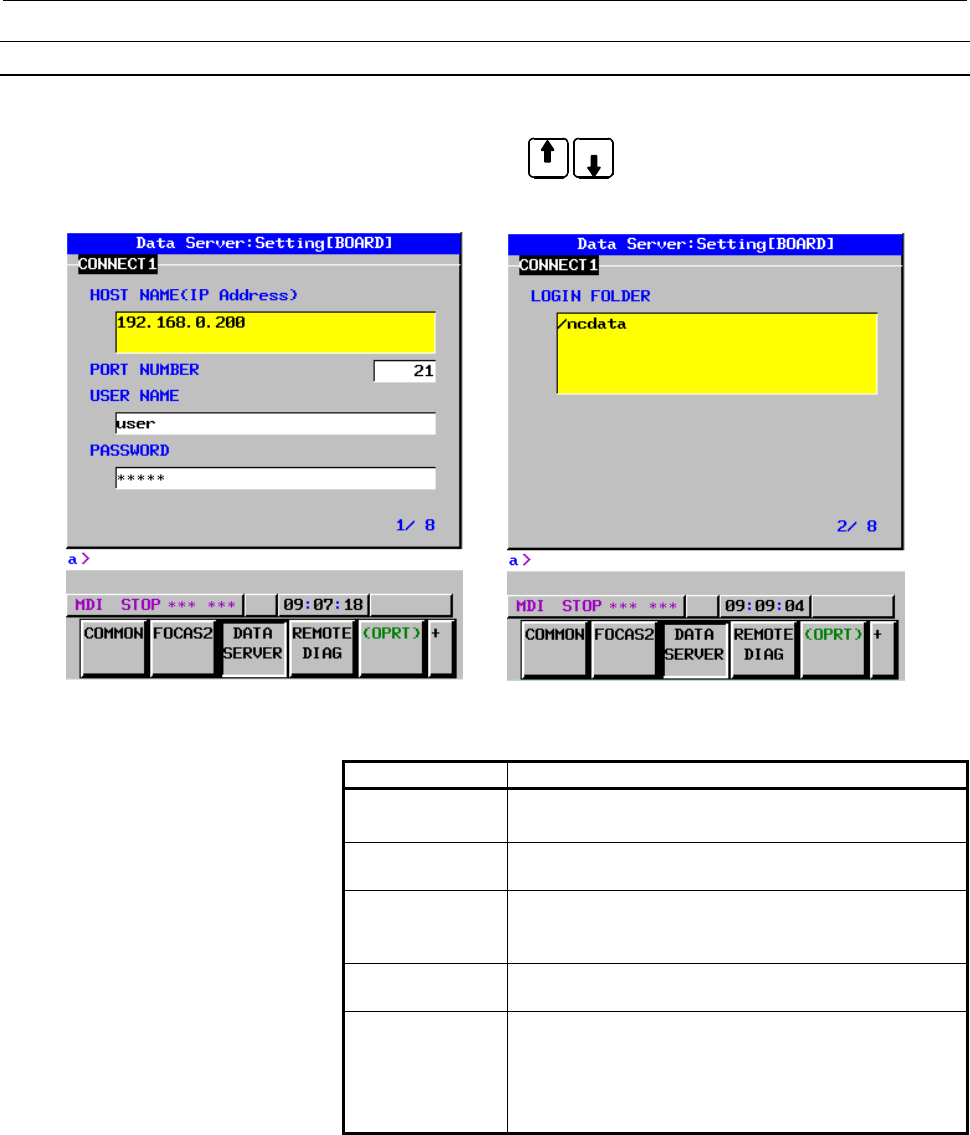

Data Server screens (CONNECT 1, CONNECT 2, CONNECT 3)
Press soft key [DATA SERVER] to display the Data Server screen.
By using page keys
PAG E
PA
G
E
, the three host computers at connection
destinations 1, 2, and 3 can be set.
Data Server screens (for connection destination 1)
Setting item
Item Description
HOST NAME
Specify the IP address of the host computer.
(Example of specification format: "192.168.0.200")
PORT NUMBER Specify the port number. Usually, set 21 because the
FTP communication is used.
USER NAME Specify the name of the user to log on to the host
computer using FTP. (A user name of up to 31
characters can be specified.)
PASSWORD Specify the password for the above user name.
The password must always be specified.
LOGIN FOLDER Specify a work folder to be used when the user logs in
to the host computer. (Up to 127 characters can be
specified.)
If no data is set, the home folder set on the host
computer is used as a login folder.
Previous page
Next page
