Fast Ethernet/Fast Data Server for 30i/300i, 31i/310i, 32i/320i-A Operators manual Page 61

Operators manual
B-64014EN/03 SETTING 3.SETTING THE FOCAS2/Ethernet FUNCTIONS
- 51 -
3.3 EXAMPLE OF SETTING THE FOCAS2/Ethernet
FUNCTIONS

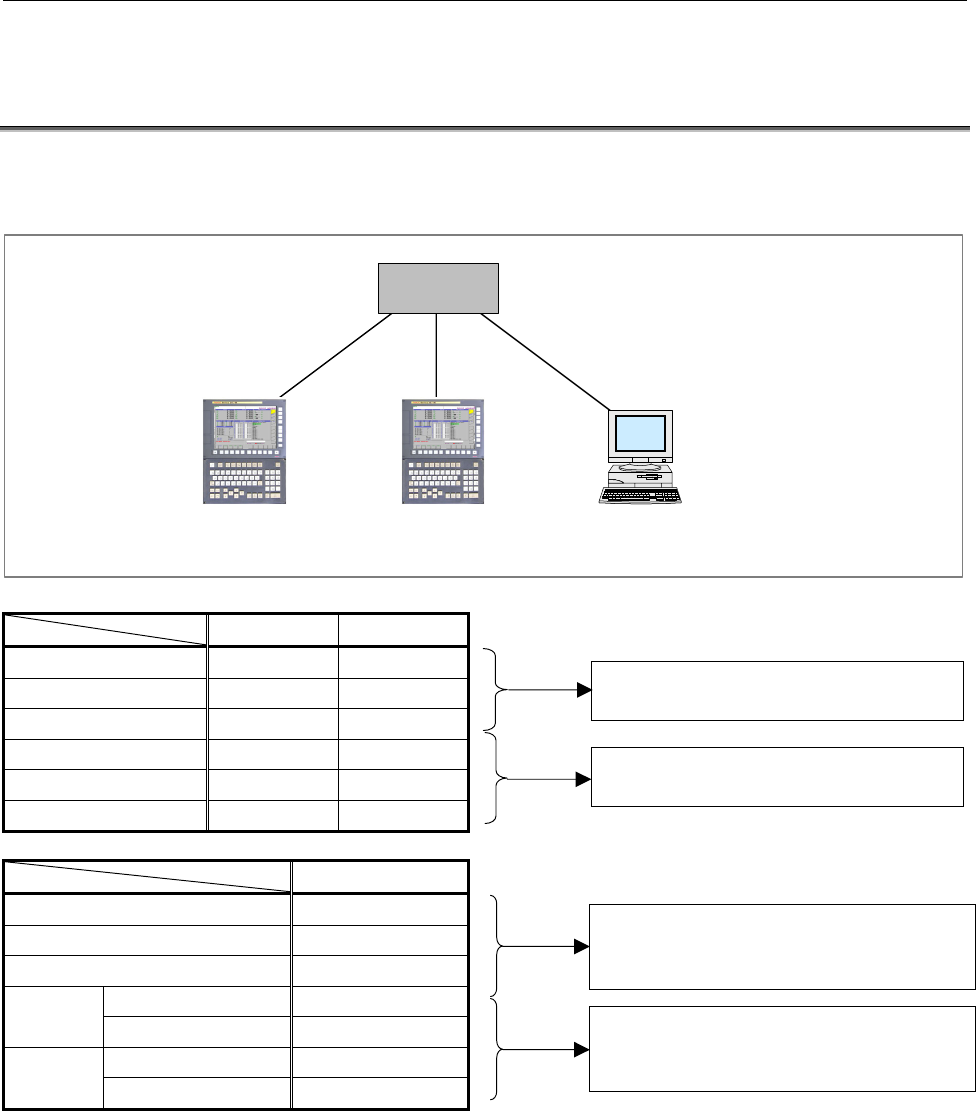

An example of setting for operating the FOCAS2/Ethernet functions
is given below. In this example of setting, one personal computer is
connected to two CNCs through a FOCAS2/Ethernet.
100BASE-TX (or 10BASE-T)
CNC 2
CNC 1 PC 1
HUB
CNC 1 CNC 2
IP ADDRESS 192.168.0.100 192.168.0.101
SUBNET MASK 255.255.255.0 255.255.255.0
ROUTER IP ADDRESS None None
PORT NUMBER (TCP) 8193 8193
PORT NUMBER (UDP) 0 0
TIME INTERVAL 0 0
PC 1
IP address 192.168.0.200
Sub-net mask 255.255.255.0
Default gateway None
NC IP address 192.168.0.100
CNC 1
NC TCP port number 8193
NC IP address 192.168.0.101
CNC 2
NC TCP port number 8193
"Microsoft TCP/IP property" of the personal
computer (Windows 95/98/NT/2000/XP) is
used for setting.
Specify these items with the arguments of
the data window library function
"cnc_allclibhnd13."
The FOCAS2 setting screen is used for
setting.
The common setting screen is used for
setting.
Previous page
Next page
