B-64014EN/03 OPERATION 1.OPERATING THE DATA SERVER FUNCTIONS
- 83 -
1 OPERATING THE DATA SERVER
FUNCTIONS
This chapter describes how to operate the Data Server functions.

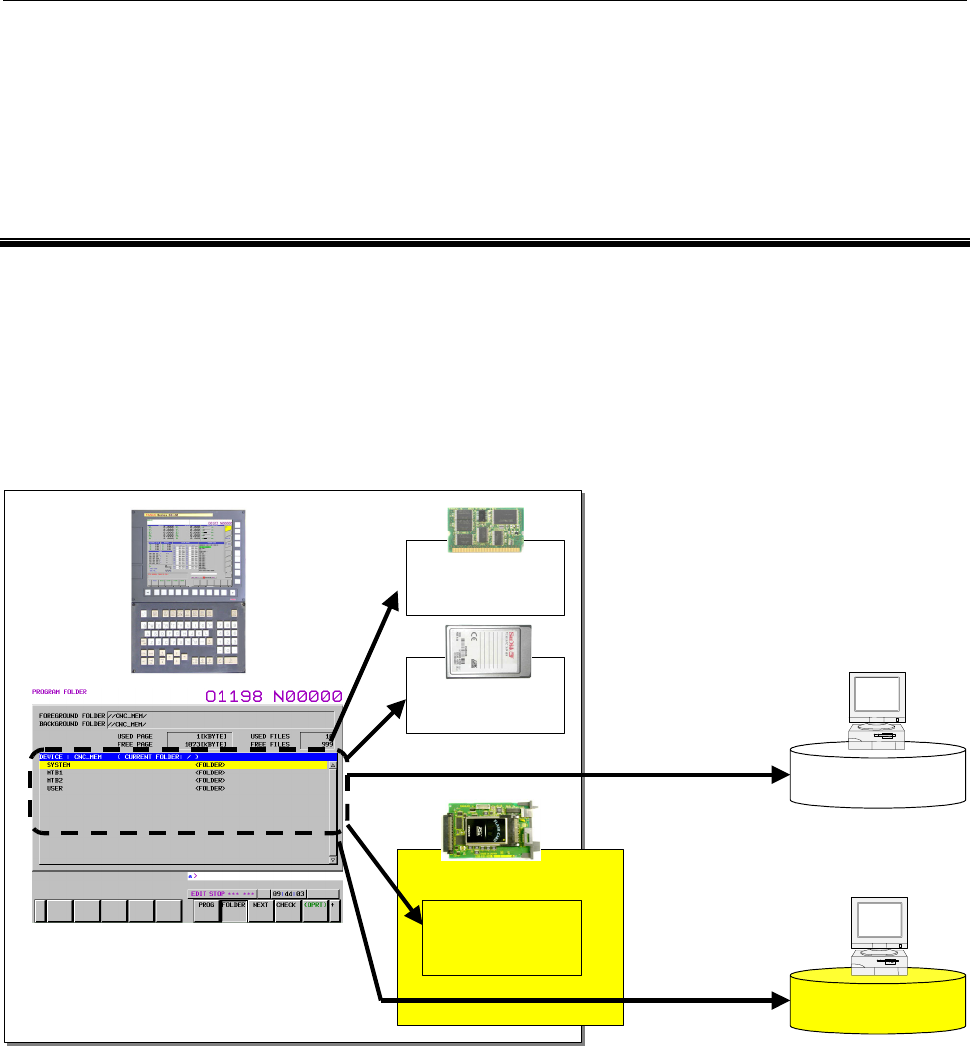

On the PROGRAM FOLDER screen, files on the CNC memory,
memory card, host computer connected via the embedded Ethernet,
memory card built into the FAST Data Server, or host computer
connected via the FAST Data Server can be handled by selecting a
device.
CNC memory
Memory card
FAST Data Server
Memory card
File list
File list
Via embedded
Ethernet
Via FAST Data Server
PROGRAM FOLDER screen
Series 30i/31i/32i-A
In this manual, the method of handling files on the memory card built
into the FAST Data Server and on the host computer connected via the
FAST Data Server is described.
Previous page
Next page
