3.SETTING THE FOCAS2/Ethernet FUNCTIONS SETTING B-64014EN/03
- 48 -
COMMON screen (BASIC)

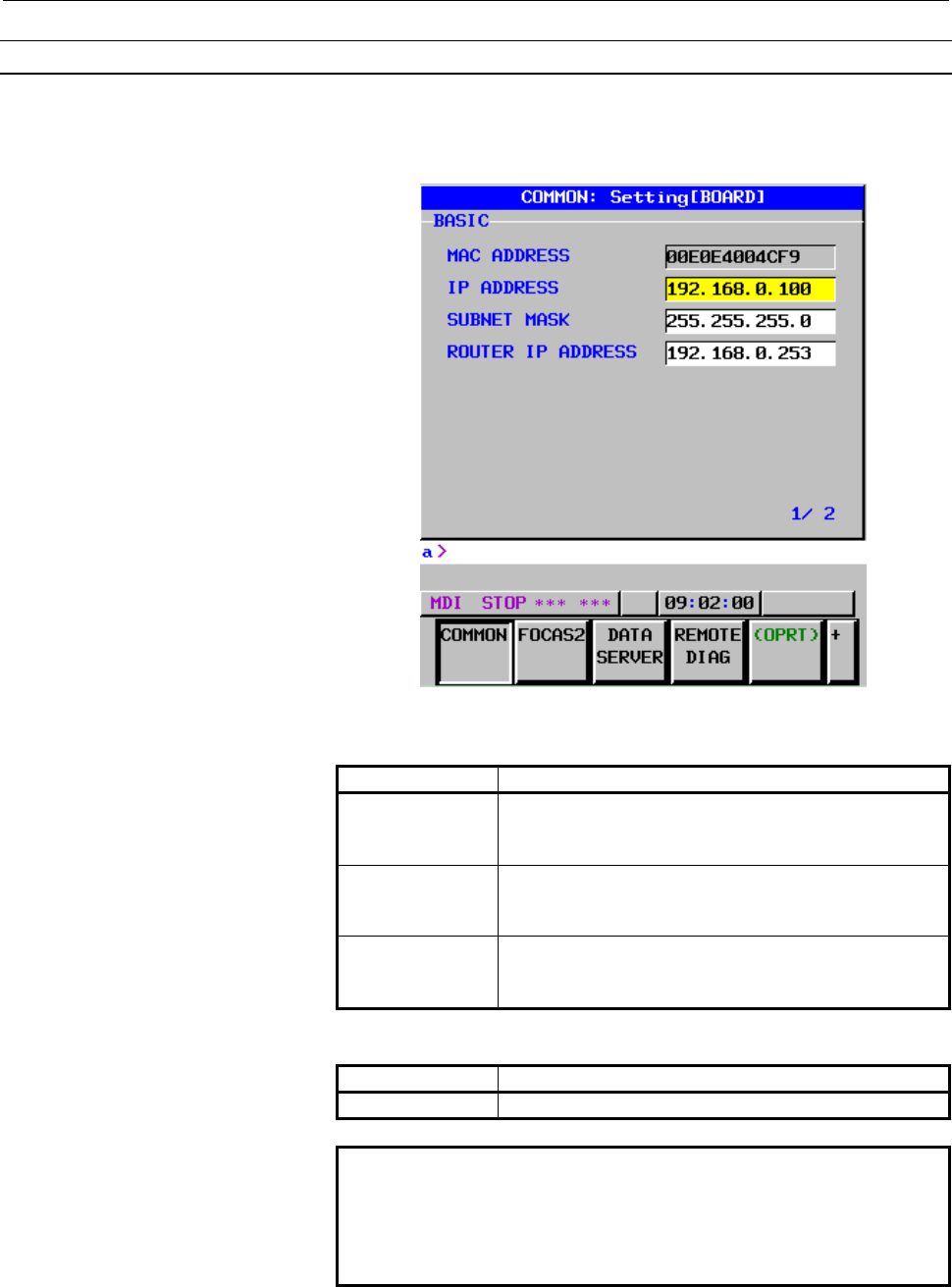

Press soft key [COMMON] to display the COMMON screen
(BASIC).
COMMON screen (BASIC)
Setting item
Item Description
IP ADDRESS Specify the IP address of the FAST Ethernet/ FAST
Data Server.
(Example of specification format: "192.168.0.100")
SUBNET MASK Specify a mask address for the IP addresses of the
network.
(Example of specification format: "255.255.255.0")
ROUTER IP
ADDRESS
Specify the IP address of the router.
Specify this item when the network contains a router.
(Example of specification format: "192.168.0.253")
Display item
Item Description
MAC ADDRESS FAST Ethernet/ FAST Data Server MAC address
NOTE
The second page (detail screen) of the COMMON
screen is to be set when the DNS/DHCP function is
used. For details, see Chapter 4, "SETTING THE
DNS/DHCP FUNCTION" provided later.
Previous page
Next page
