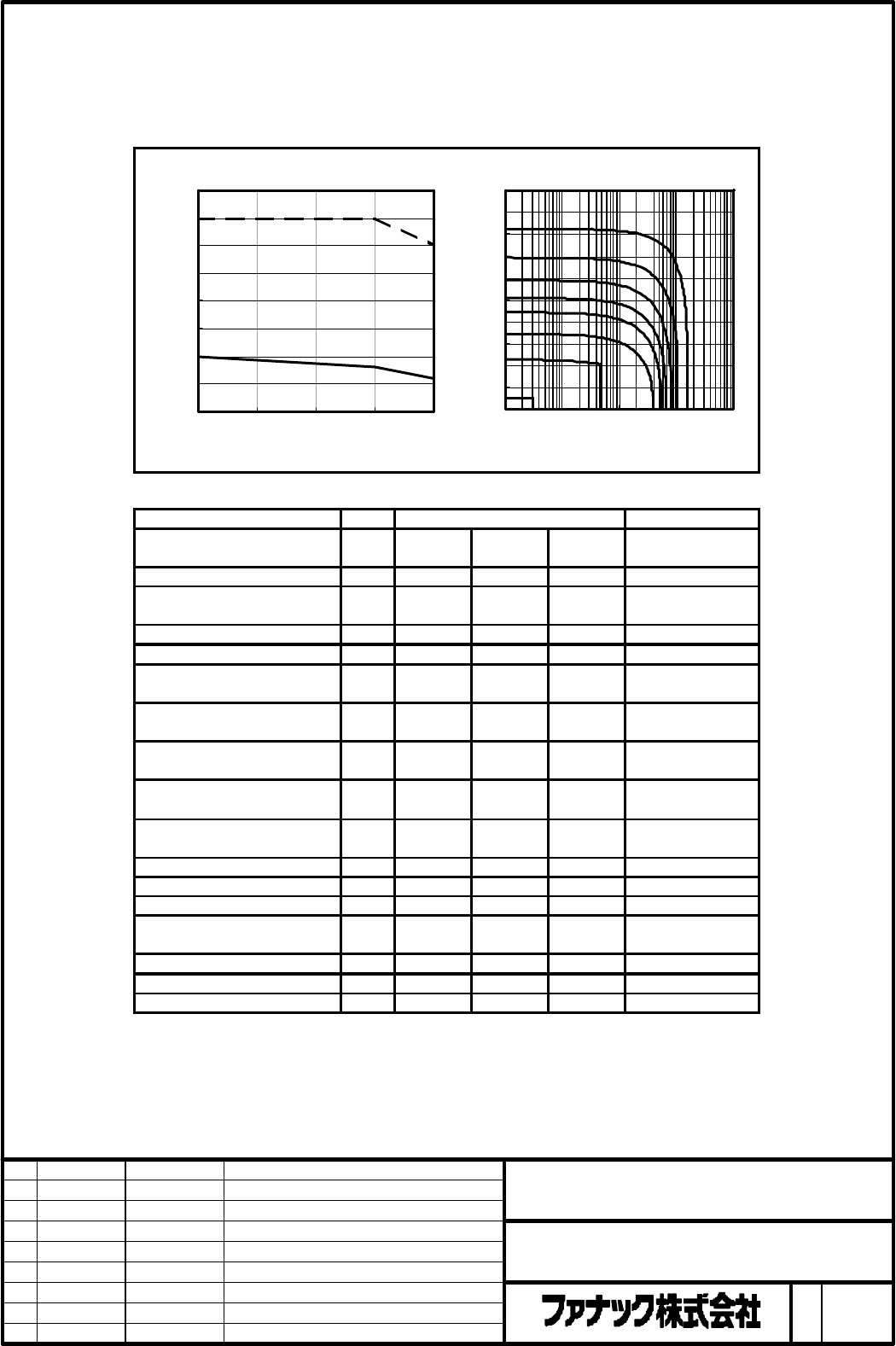

FANUC AC SERVO MOTOR βis series DESCRIPTIONS
AC Servo motor β(HV)is series
B-65302EN/01-2
05.01.06 A.Hosoda
Draw.
01
AC Servo motor β(HV)is series
Model
β
2/4000HV
i
s
Specification
A06B-0062-B
?
03
Data sheet
Parameter
Symbol
Value Unit
Stall Torque (*) Ts 2 Nm
20 kgfcm
Stall Current (*) Is 1.6 A (rms)
Rated Output (*) Pr 0.5 kW
0.67 HP
Rating Speed
Nr 4000
min
-1
Maximum Speed
Nmax 4000
min
-1
Maximum Torque (*) Tmax 7 Nm
71 kgfcm
Rotor Inertia Jm 0.000291
kgm
2
0.00297
kgfcms
2
Rotor Inertia (with Brake) Jm 0.000311
kgm
2
0.00317
kgfcms
2
Torque constant (*)
Kt 1.23 Nm/A (rms)
12.6 kgfcm/A (rms)
Back EMF constant (
1
phase) (*)
Ke 43
V (rms)/1000 min
-1
Kv 0.41 V (rms)sec/rad
Armature Resistance (1 phase) (*)
Ra 6.6 O
Mechanical time constant tm 0.004 s
Thermal time constant tt 15 min
Static friction Tf 0.1 Nm
1 kgfcm
Weight
w 2.8 kg
Weight (with Brake)
w 3.8 kg
Max. Current of Servo Amp. Imax 10 A (peak)
(*) The values are the standard values at 20
?
and the tolerance is ±10%.
The speed-torque characteristics very depending on the type of software, parameter setting, and
input voltage of the digital servo software. (The above figures show average values.)
Over Load Duty
0
10
20
30
40
50
60
70
80
90
100
1 10 100 1000 10000
ON time[sec]
Duty[%]
Speed-Torque Characteristics
0
1
2
3
4
5
6
7
8
0 1000 2000 3000 4000
Speed [min-1]
Torque [Nm]
110%
120%
130%
140%
150%
170%
210%
MAX
Continuous
Operating
Intermitting
Operating
