AC Servo Motor Beta is Descriptions Page 230

Descriptions
Edit
Title
3／16
Date Design Description
FANUC AC SERVO MOTOR βiS series
for package D DESCRIPTIONS
B-65302EN/01-004
05.08.22 H. Uematsu
Draw. No.
01
AC Servo motor
βis for package D
2. SAFETY PRECAUTIONS
Basically, it is same as the servo motor βiS series, so please follow to FANUC AC SERVO
MOTOR β
iS series DESCRIPTION B-65302JA. The following is the different point from
standard motor.
WARNING
It is important of setting the parameter for solt sermal alarm. Please set the parameter as
this DESCRIPTION.

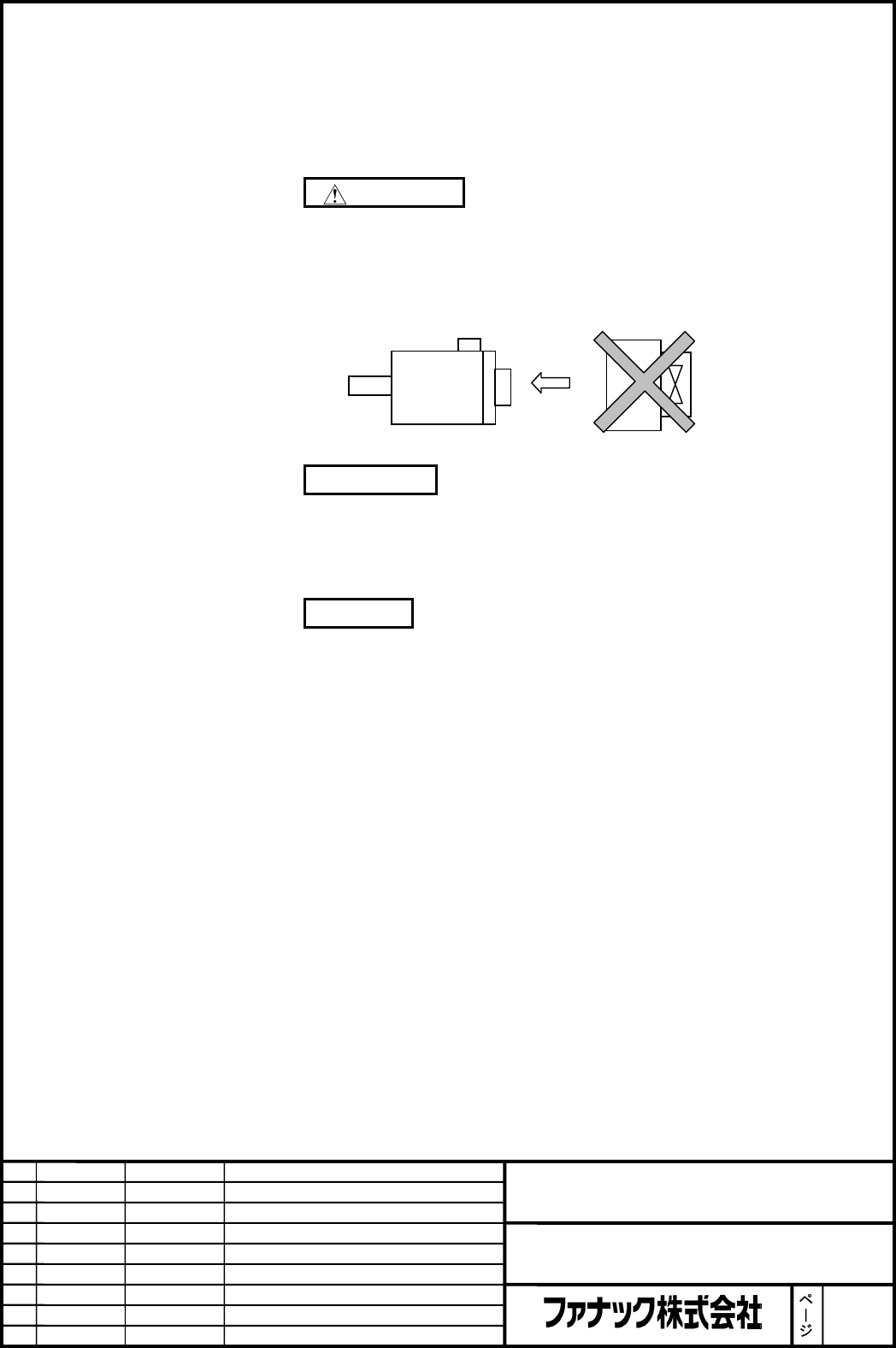

It must not attach a rear fan unit to this motor because of a possibility of missing the over
heat protection.
CAUTION
Over load duty is less than standard model, so please confirm it on use.
Don’t it use on the condition of the strong wind flow to pulsecoder.
When the soft thermal alarm has occured, please re-start CNC after several minutes.
NOTE
Motor ID information as specification number and serial number , and motor temperature
information are omitted.
On the condition for approval related to the IEC60034 standard, IEC60034-11 Heat
protection type become TP112.
