2.3.6 Cautions in Mounting a Servo Motor
The servo motor contains precision sensor, and is carefully machined
and assembled to provide the required precision. Pay attention to the
following items to maintain the precision and prevent damage to the
sensor.

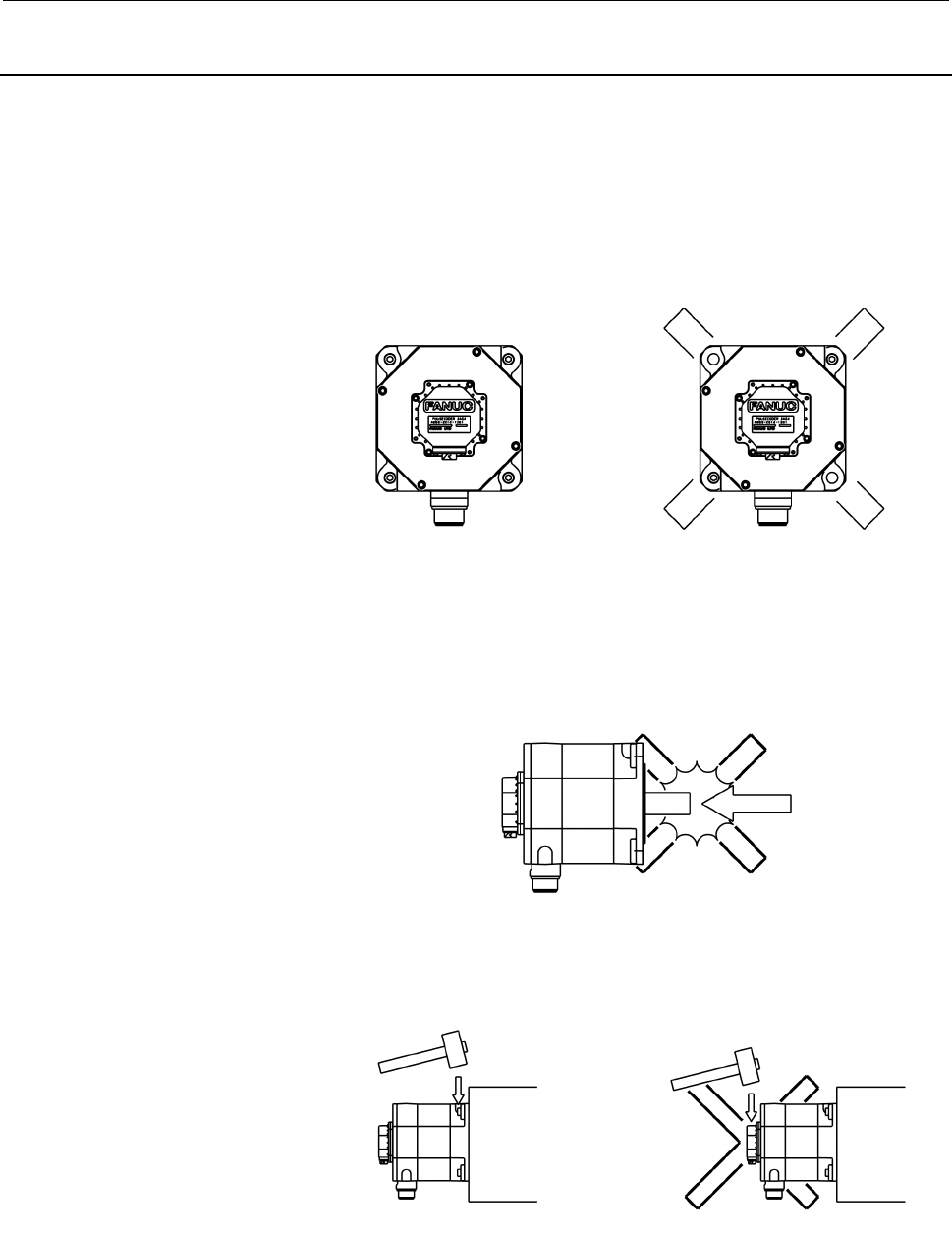

• Secure the servo motor uniformly using four bolt holes provided
on the front flange.
• Ensure that the surface on which the machine is mounted is
sufficiently flat.
When mounting on the machine, take care not to apply a shock
to the motor.
• When it is unavoidable to tap the motor for adjusting the
position, etc., use a plastic hammer and tap only the front flange
if possible.
