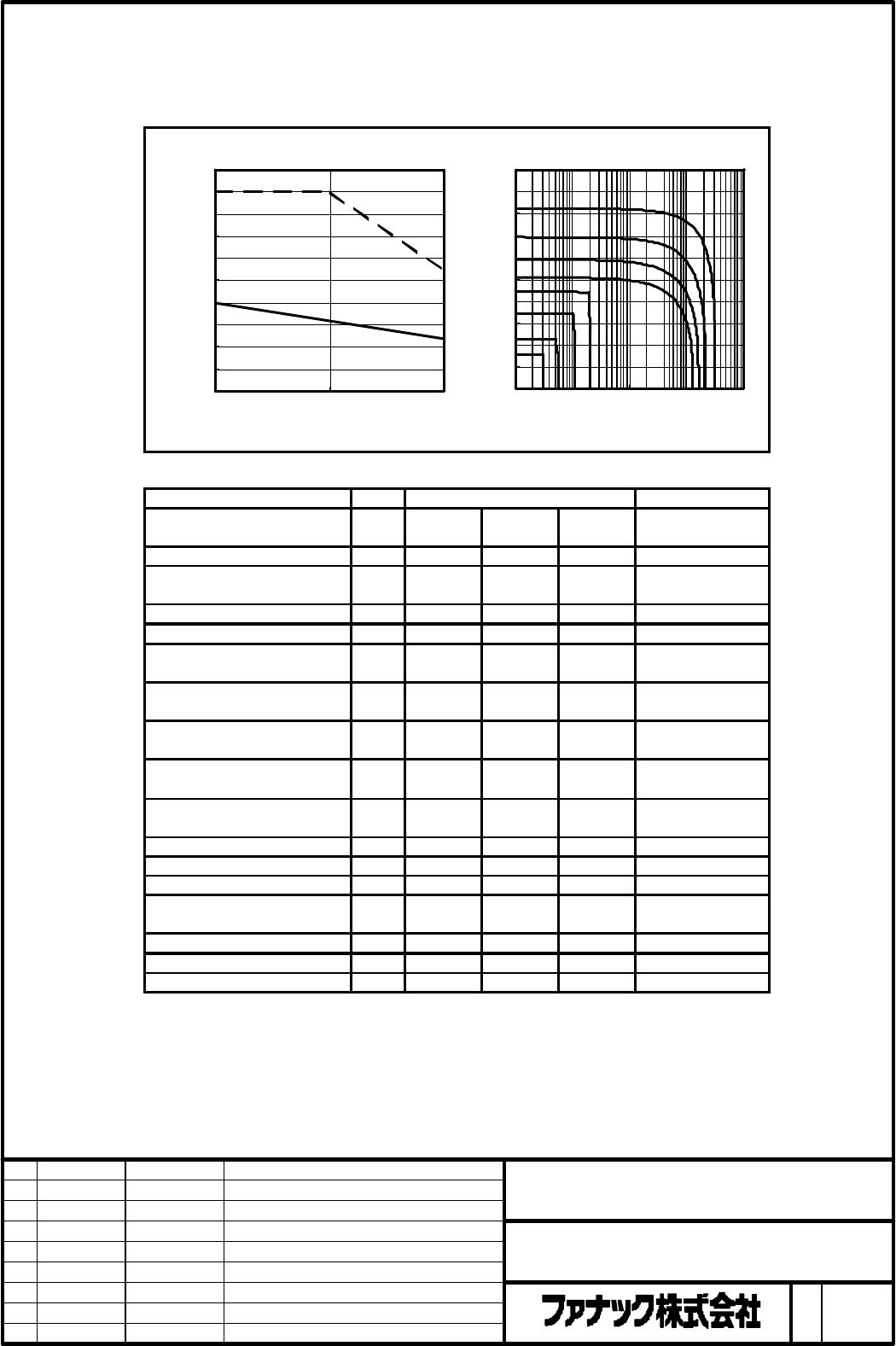

FANUC AC SERVO MOTOR βis series DESCRIPTIONS
AC Servo motor β(HV)is series
B-65302EN/01-2
05.01.06 A.Hosoda
Draw.
01
AC Servo motor β(HV)is series
Model
β
22/2000HV
i
s
Specification
A06B-0086-B
?
03
Data sheet
Parameter
Symbol
Value Unit
Stall Torque (*) Ts 20 Nm
204 kgfcm
Stall Current (*) Is 5.6 A (rms)
Rated Output (*) Pr 2.5 kW
3.4 HP
Rating Speed
Nr 2000
min
-1
Maximum Speed
Nmax 2000
min
-1
Maximum Torque (*) Tmax 45 Nm
459 kgfcm
Rotor Inertia Jm 0.00527
kgm
2
0.0538
kgfcms
2
Rotor Inertia (with Brake) Jm 0.00587
kgm
2
0.0599
kgfcms
2
Torque constant (*)
Kt 3.5 Nm/A (rms)
36 kgfcm/A (rms)
Back EMF constant (
1
phase) (*)
Ke 120
V (rms)/1000 min
-1
Kv 1.2 V (rms)sec/rad
Armature Resistance (1 phase) (*)
Ra 1.8 O
Mechanical time constant tm 0.002 s
Thermal time constant tt 30 min
Static friction Tf 0.8 Nm
8 kgfcm
Weight
w 17 kg
Weight (with Brake)
w 23 kg
Max. Current of Servo Amp. Imax 20 A (peak)
(*) The values are the standard values at 20
?
and the tolerance is ±10%.
The speed-torque characteristics very depending on the type of software, parameter setting, and
input voltage of the digital servo software. (The above figures show average values.)
Over Load Duty
0
10
20
30
40
50
60
70
80
90
100
1 10 100 1000 10000
ON time[sec]
Duty[%]
Speed-Torque Characteristics
0
5
10
15
20
25
30
35
40
45
50
0 1000 2000
Speed [min-1]
Torque [Nm]
110%
120%
130%
140%
150%
170%
210%
MAX
Continuous
Operating
Intermitting
Operating
