B-65302EN/01 SPECIFICATIONS FOR THE βiS SERIES 2.HOW TO USE SERVO MOTORS
- 23 -
2.2.3.7 Connectors on the cable side (for power : models β
ββ
β8is to
β
ββ
β22is)
To meet the IEC60034 standard, TÜV-approved plug connectors and
cable clamps should be used in connecting the power cable. To meet
the IEC60034 standard by using a cable or conduit hose seal adapter,
contact the manufacturer for details. FANUC can provide TÜV-
approved types (waterproof) and waterproof types as plug connectors
on the cable side for the FANUC βi s series AC servo motors; all these
connectors are black. Of course, conventional plug connectors may be
used, because they are MS-compatible. The specifications of each
connector are explained based on the examples shown below.

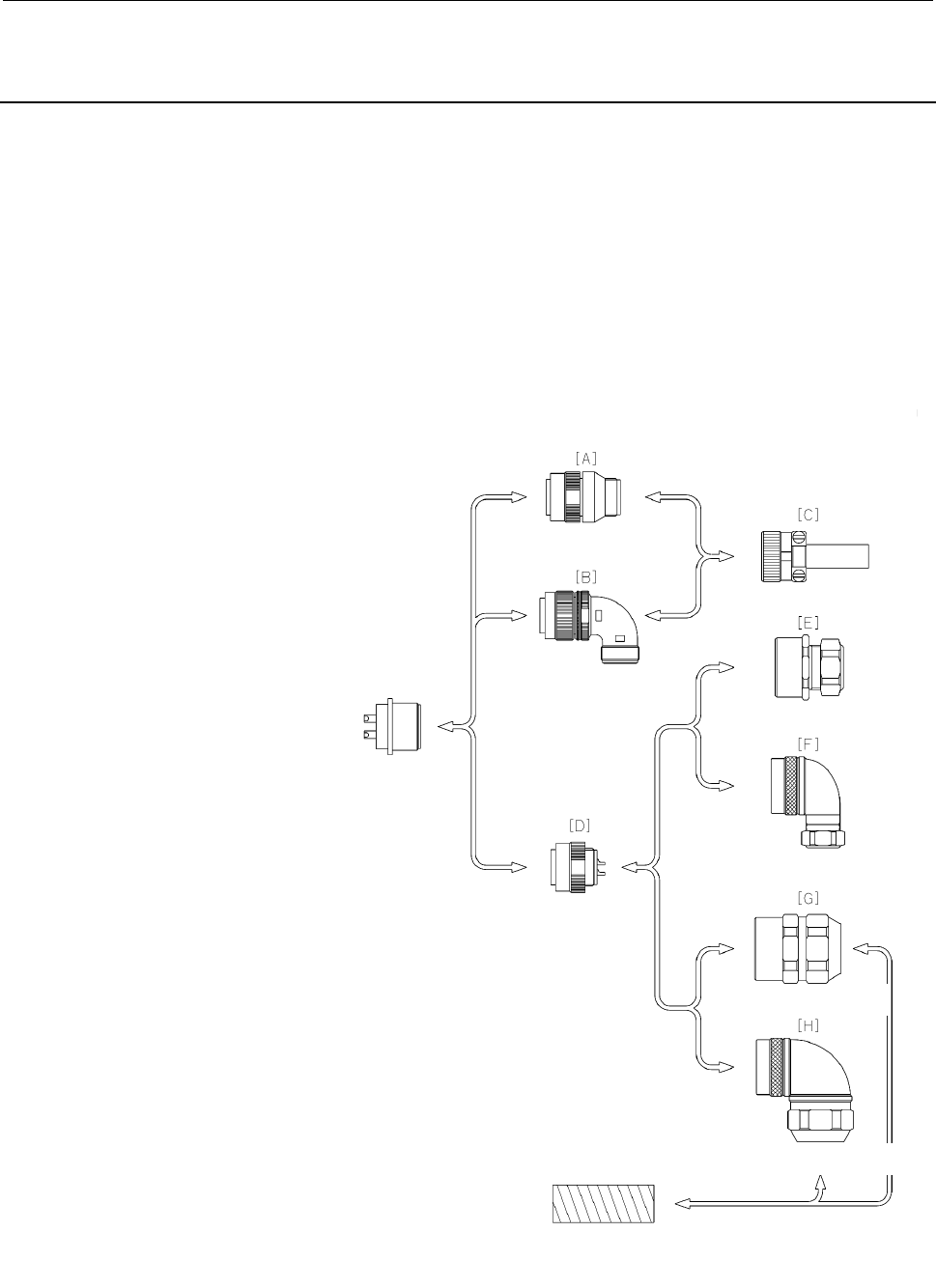

Example of connector connection
Plug connector
(straight type)
Plug connector
(elbow type)
Receptacle
connector
(motor side)
Cable clamp
Cable seal adapter
(straight type)
Plug connector
(single-unit block type)
Cable seal adapter
(90° elbow type)
Conduit hose seal adapter
(straight type)
Conduit hose seal adapter
(
90° elbow t
y
pe
)
Conduit hose
