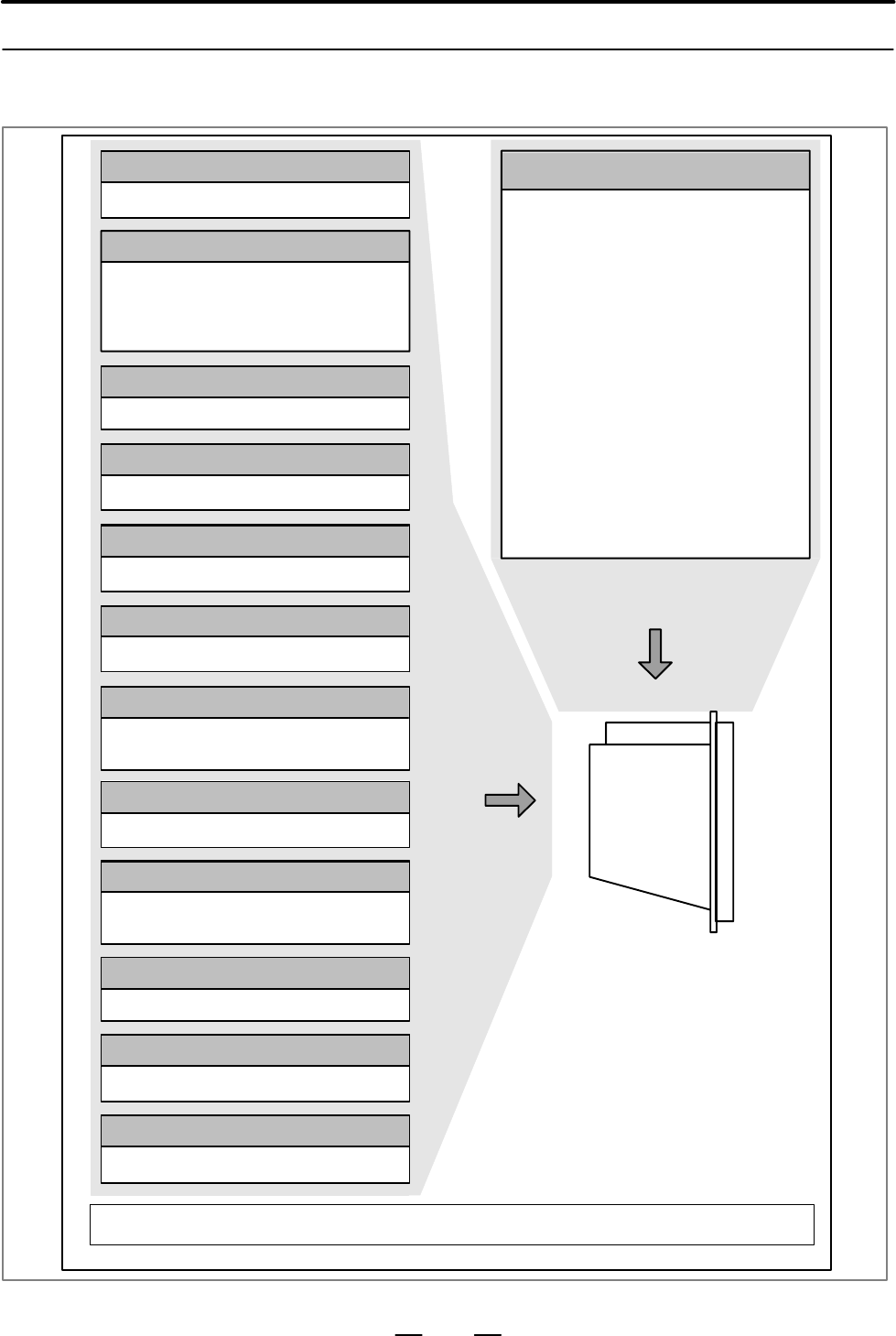

Motherboard
CPU for CNC control
⋅ Power supply
⋅ 2–axis to 6–axis control
⋅ Spindle control
⋅ LCD/MDI interface
⋅ I/O Link
⋅ PMC–SB7
⋅ Analog output (option)
⋅ High–speed DI
⋅ RS–232C x 2
⋅ Memory card interface
⋅ Ethernet
Basic system
Without slots, or
with 2 slots, or
with 3 slots, or
with 4 slots
Serial communication board
Remote buffer/DNC1/DNC2
Sub–CPU board
Sub–CPU for 2–path control
⋅ 2–axis to 6–axis control
⋅ Spindle interface
⋅ Analog output
C board
C function for PMC
Symbol CAPi T board (Only T series)
Graphic conversation function
RISC board (Only M series)
High–precision contour control function
Data server board
Data server function
Loader control board
Loader control function
2–axis/4–axis control
HSSB interface board
High–speed serial interface
I/O Link–II board
I/O Link–II interface
Ethernet board
Ethernet interface
DeviceNet interface board
DeviceNet interface
PROFIBUS board
PROFIBUS function
On a unit with option slots, as many option boards as the number of option slots can be mounted.
However, some option slots accept only specific option boards.
Option
2.2.2
Series 18i/180is
2. LCD–MOUNTED TYPE i SERIES
HARDWARE
GFKE-0222-EN
168
Previous page
Next page
