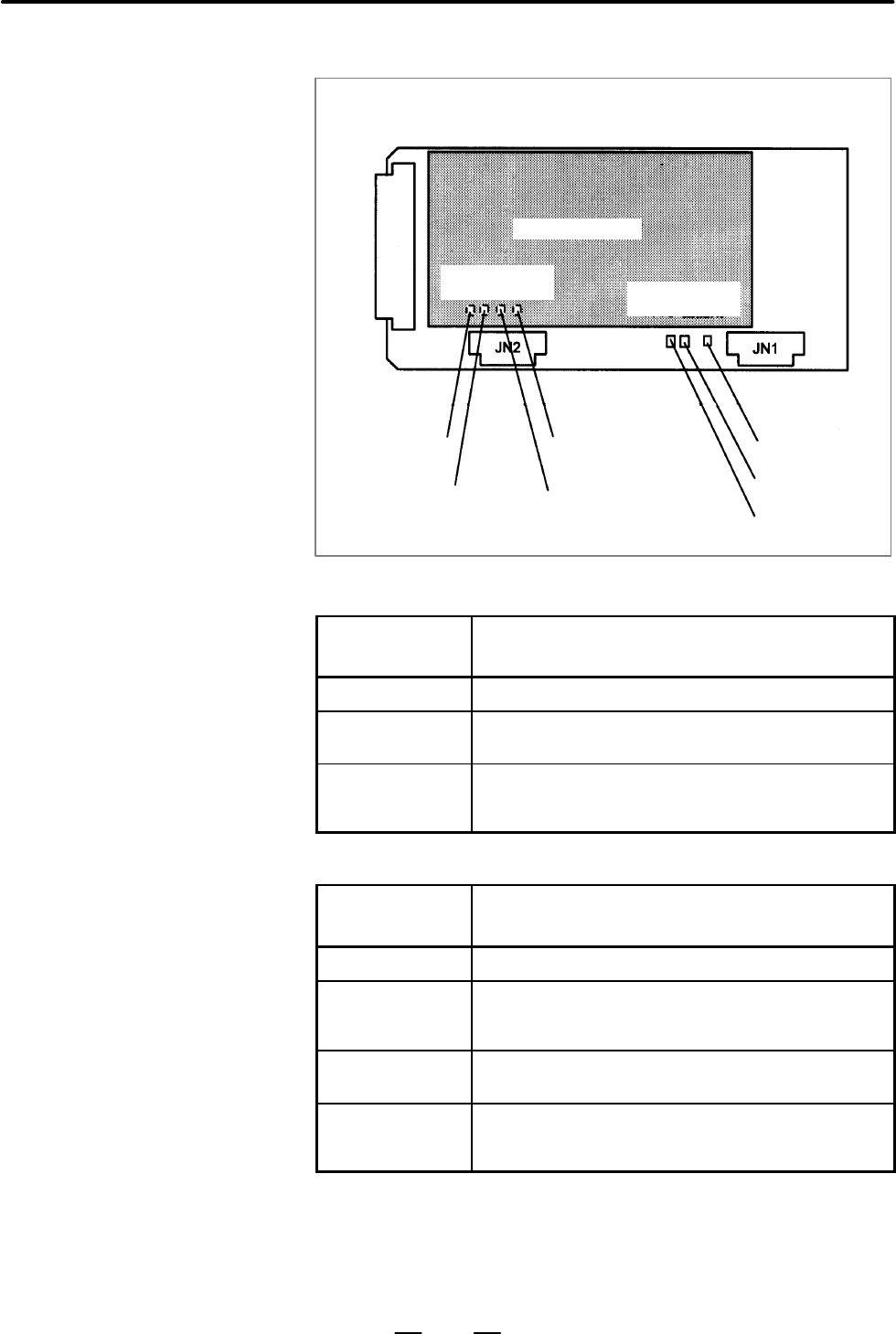

JNA

F–BUS backplane connector

ADD–ON board

LEDs for slave

function LEDs for master

function

LED1 (green) LEDB (red) LEDB (red)

LED3 (green)LED2 (green)

LED2 (green)

LED1 (green)

(1)LEDs for master function

LED No.

(abbreviation)

Meaning

LED1 (CPU) Lights to indicate the CPU for the master function is running.

LED2 (TOKEN) Lights when the communication LSI (ASPC2) has a token

(right to transmit).

LEDB (PALM) Lights when a memory parity alarm occurs in the master

function circuit.

It is likely that the hardware is defective.

(2)LEDs for slave function (mounted on the add–on board)

LED No.

(abbreviation)

Meaning

LED1 (CPU) Lights to indicate the CPU for the slave function is running.

LED2 (COMM) Lights when PROFIBUS communication starts. It remains to

be on after the PROFIBUS communication is suspended,

however.

LED3 (RUN) Lights to indicate that PROFIBUS communication is being

performed normally.

LEDB (PALM) Lights when a memory parity alarm occurs in the slave function

circuit.

It is likely that the hardware is defective.

D LED indication

GFKE-0222-EN
