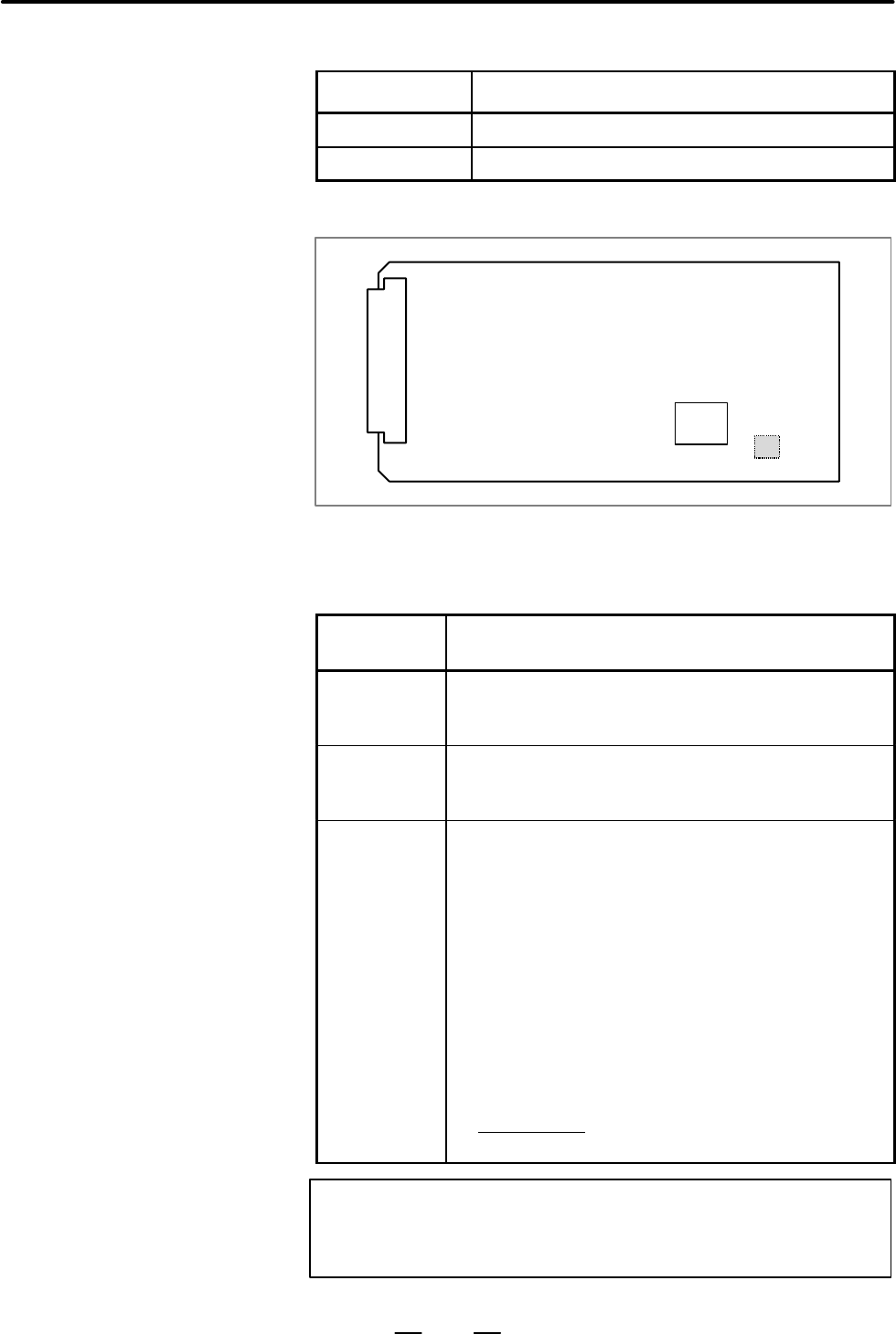

(3)Alarm LED (red) indication at error occurrence

Alarm LED Meaning

AL1 HSSB communication was discontinued.

AL2 Parity alarm in NC/PC common RAM.

SW1

Rotary switch setting when the PC or PANEL i is connected

By changing the rotary switch setting on the board, the startup sequence

at power–up can be changed.

Rotary switch

setting

Contents

Setting for maintenance.

The start menu is displayed. It is possible to start boot and

IPL from the PC or PANEL i.

Setting for usual operation.

The start menu is not displayed.

It is impossible to start boot or IPL from the PC.

The CNC and PC or PANEL i do not perform the handshake but

start independently of each other.

D CNC

Even if the PC is not connected or turned on, just the CNC can

be started and operated. (For this operation, a special display

unit, MDI, operator’s panel, and the like are necessary.) Even if

the PC or PANEL i is connected and turned on, the startup

menu does not appear.

D PC or PANEL i

Even if the CNC is connected or turned on, the startup menu

does not appear. The boot or IPL operation cannot be performed

from the PC or PANEL i.

If an HSSB device driver for Windows 95/98, WindowsNT4.0, or

Windows2000 is installed on the PC or PANEL i, just the PC or

PANEL i

or CNC can be turned on or off.

For multi–connection, in which multiple CNC units are connected to

a single PC or PANEL i, usually select this setting.

NOTE

PANEL i used here represents hardware that can operate

on a stand–alone basis (provide a stand–alone option).

D Rotary switch (SW1)

setting

GFKE-0222-EN

2. LCD–MOUNTED TYPE i SERIES

HARDWARE

210
