16i/18i/21i-B maintenance manual for SD7 Maintenance manual Page 239

Maintenance manual

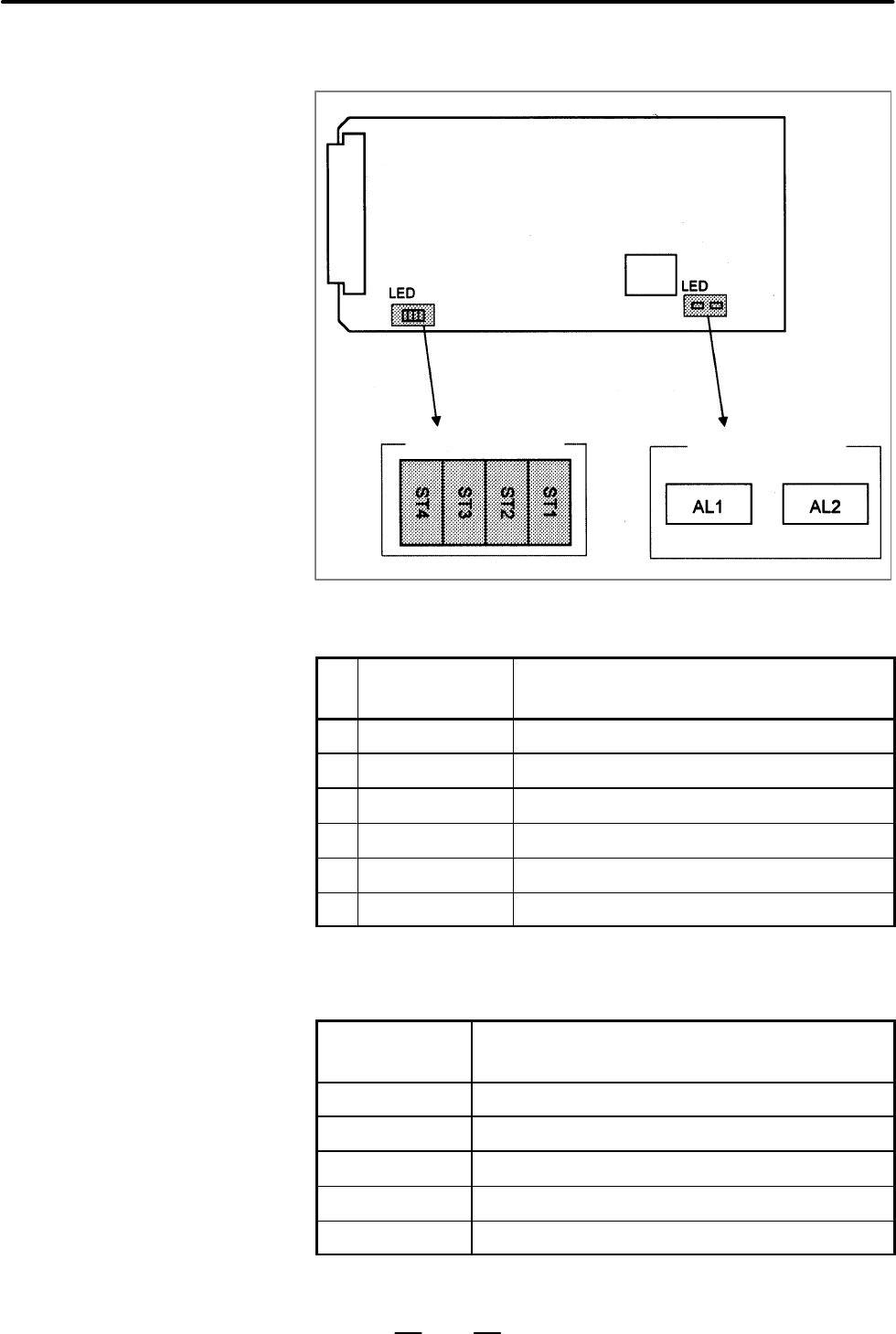

Status (green) Alarm (red)
(1)Changes in status LED (green) indication at power–on time
No.
Status LED
(ST4 to 1)
Status
1 jjjj Power is not supplied.
2 JJJJ Initial status immediately after power is switched on.
3 JJJj HSSB board being initialized.
4 JJjJ Waiting for PC boot to be executed.
5 JJjj CNC screen being displayed on the PC.
6 Jjjj Initialization completed, and usual operation under way.
J: On j: Off
(2)Status LED (PC status, green) indication at error occurrence
Status LED
(ST4 to 1)
Status
jJJj A thermal error has occurred at the PANEL i.
jJjJ HSSB communication was discontinued.
jJjj Parity alarm in NC/PC common RAM.
jjJJ An HSSB communication error has occurred.
jjJj A battery alarm has occurred at the PANEL i.
J: On j: Off
D LED indication
GFKE-0222-EN
