16i/18i/21i-B maintenance manual for SD7 Maintenance manual Page 421

Maintenance manual
(1)Make sure the CNC display unit with PC functions or the PANEL i is
powered off.

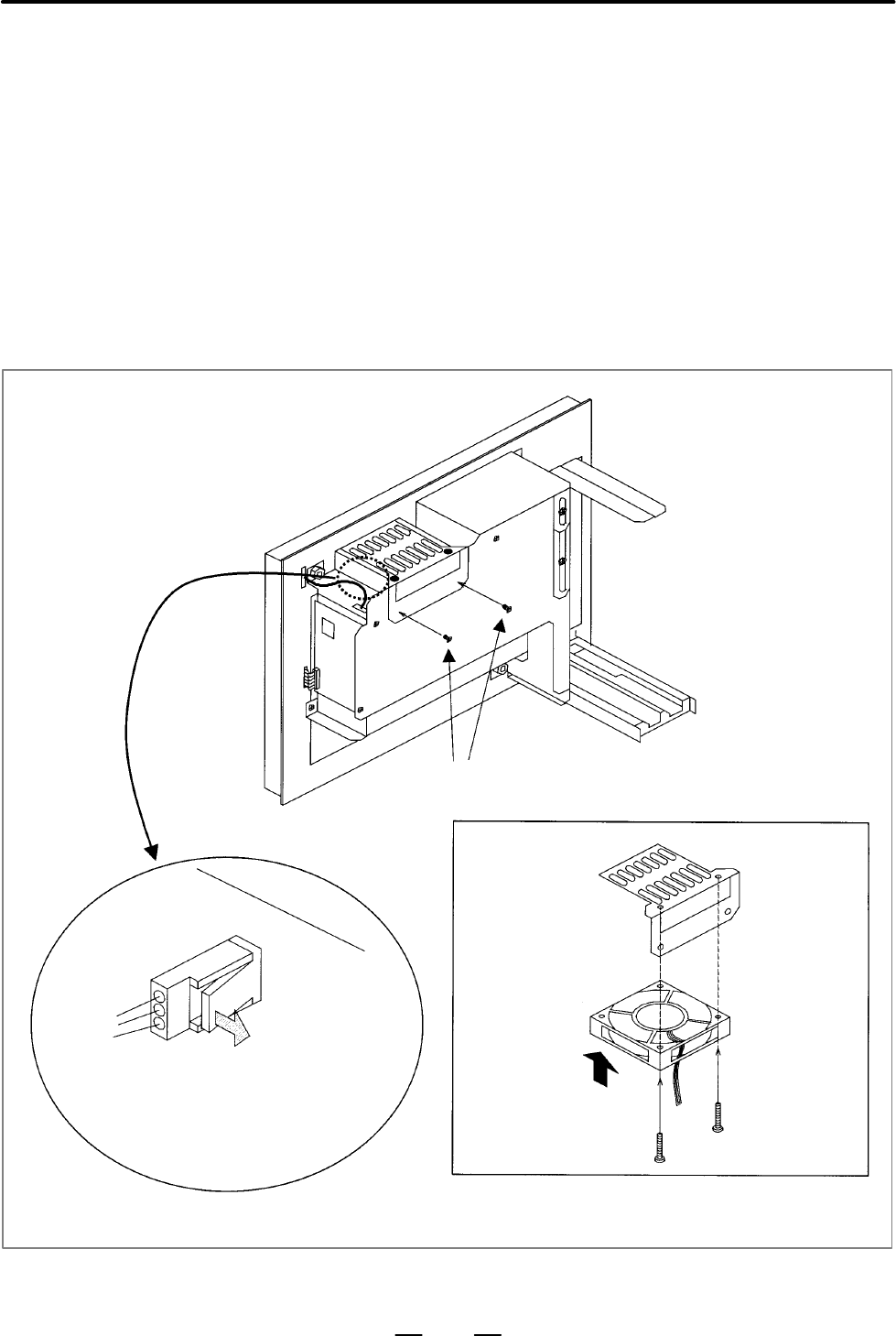

(2)Loosen the two screws (A), then remove the fan retaining metal sheet.
(3)Remove the fan connector (CN6). Since the connector is fixed with
a latch, pull out the connector while opening the latch with a flatblade
screwdriver, as shown below.
(4)Loosen the two screws (B), then replace the fan.
(5)Install a new fan in the unit by reversing the removal procedure. At
this time, be sure to install the fan in the correct direction.
CN6 FAN
Fan
A08B–0082–K010
Be sure to install
the fan in the cor-
rect direction.
For A08B–0082–B001 to –B004, –B011 to –B014,
–B021 to –B024
Two screws (A)
Fan retaining
metal sheet
D Replacing the fan for
main body
GFKE-0222-EN
5. MATTERS COMMON TO BOTH LCD–MOUNTED TYPE
AND STAND–ALONE TYPE i SERIES (HARDWARE)
391
