Even if replacement is performed reasonably such as for
repairing, this function incorrectly indicates the * mark when
it detects the replacement.
To clear the * mark, follow the steps below to update the
registered data, as described in the editing section later.
(1)Make the registered data editable. (Parameter IDW (No.
13112#0) = 1)
(2)On the edit screen, place the cursor on the item from
which you want to delete the * mark.
(3)Operate the soft keys [CHANGE], [INPUT], and [SAVE]
in that order.

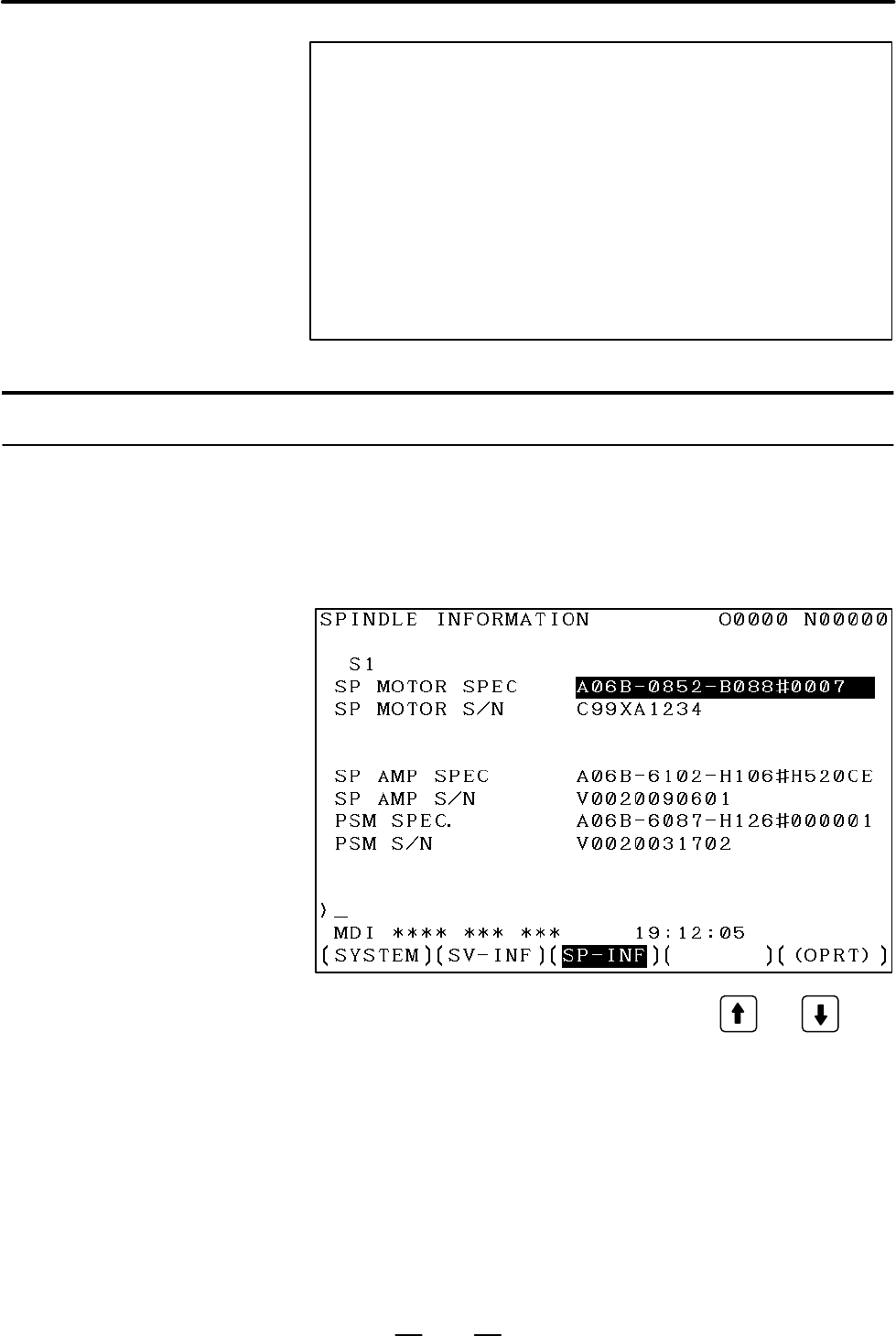

Editing the spindle information screen
1 Assume that parameter No.13112#0(IDW) = 1.
2 Press the MDI switch on the machine operator’s panel.
3 Follow the steps shown in ”Displaying the spindle ID screen” to
display the screen as shown below.
4 To move key–in buffer on the screen, use the and keys.
