FANUC Series 16i/18i/21i Additional Manual Page 14

Additional Manual
2002/08/09 T.Inagaki E.Genma
3.4 Note
(1) When the Linear scale with distance-coded reference marks (serial) is used, please
don't forget to set parameter No.1818#3(NSD) to 1. And d
istance coded rotary encoder
(serial type) is unavailable.
(2) On the Linear scale with distance-coded reference marks (serial), the axis does not
stop until three reference marks are detected. If this procedure is started at the
position near the standard point, CNC can not detect three reference marks and the
axis does not stop until over travel alarm occurs. Please care to start at the position that
has enough distance from standard point.
And if establishment of reference position is failed, the establishment is retried. Then
axis does not stop until still more three reference marks are detected. So please set the
maximum move amount (detection unit : Prm. No.14010) not to reach the standard
point.
(3) On flexible synchronization control mode, reference position can't be established.
(4) There are the following limitations when the angular axis control is used.
(a) It is necessary to use the Linear scale with distance-coded reference marks (serial)
for both the perpendicular axis and the angular axis. If not, P/S 5328 occurs when
reference position establishment is tried.
(b) When the reference point establishment of angular and perpendicular axes are tried,
please set parameter 8200#2(AZR) to '0' and input signal G063#5(NOZAGC) to '0'. If
not, P/S 5328 occurs when reference position establishment is commanded.
(c) When the reference point of the perpendicular axis is established, it is necessary to
establish the reference point of the angular axis previously. When the reference point
of the angular axis is not previously established, the P/S090 alarm is generated.
(d) During the reference point establishment operation of the angular axis, the
command in the perpendicular axis is invalid in the manual reference point return.
(e) On angular axis control, if you use automatic setting of parameter No.1883,1884 on
reference point establishment (Prm. No.1819#2(DATx)=1), please establish reference
point of perpendicular axis after reference point establishment and return of angular
axis.

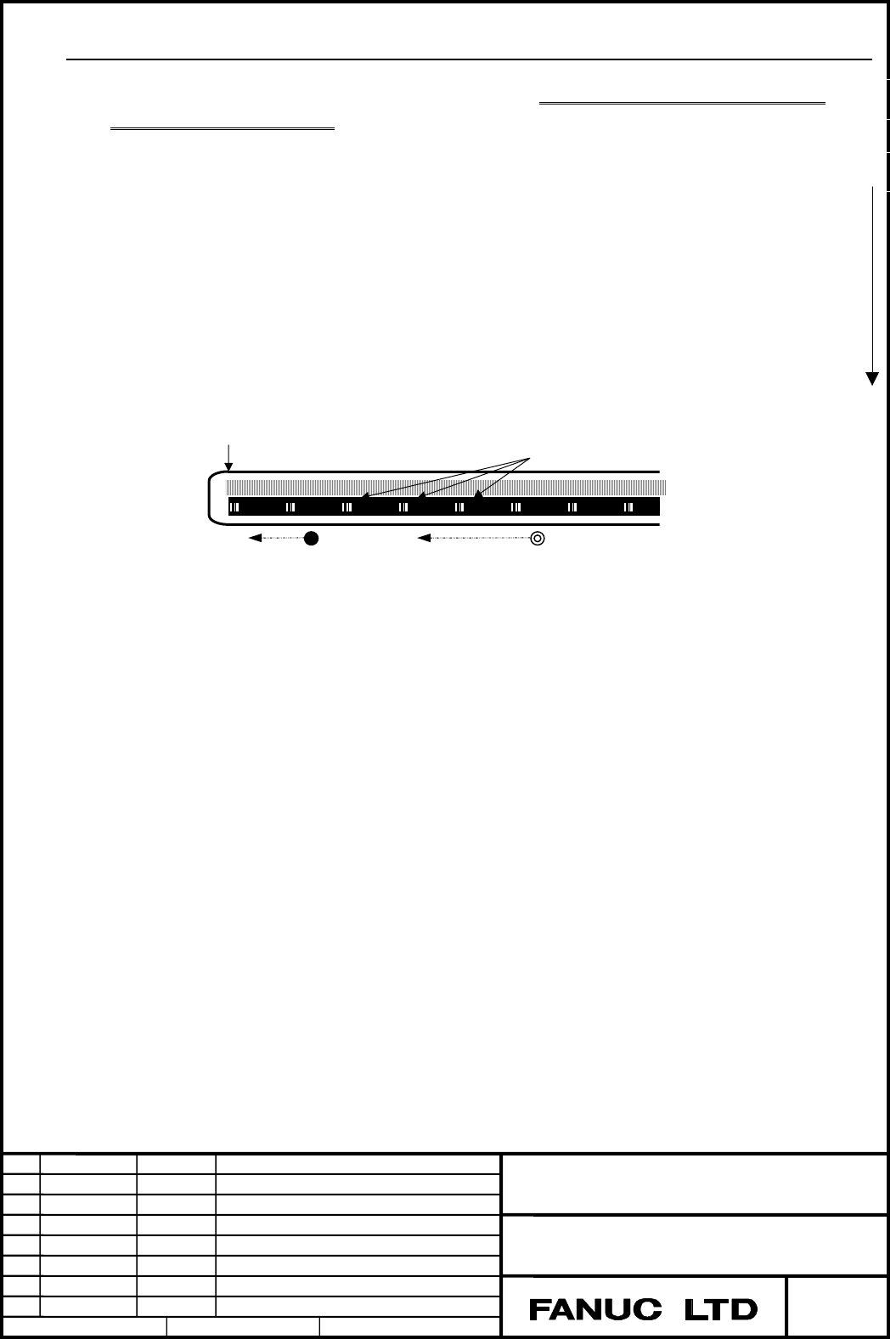

Standard point
Reference marks
Start point (Good)
(3)
(3)
Start point (Bad)
A-78754EN
FANUC Series 16i/18i/21i –B, 0i –B/C
Linear scale I/F with absolute address referenced
mark / Distance coded scale
Drawing No.
Page
Descri
p
tionDate Edit
14/32
03 2004/11/30 T,Inagaki (3) is added or altered.
02 2002/11/18 T
,
Ina
g
aki
(
2
)
is added or altered. E.Genma
