FANUC Series 16i/18i/21i Additional Manual Page 27

Additional Manual
2002/08/09 T.Inagaki E.Genma
[ Example of parameter setting ]
(3)
(Linear scale with absolute addressing reference mark (A/B
phase))

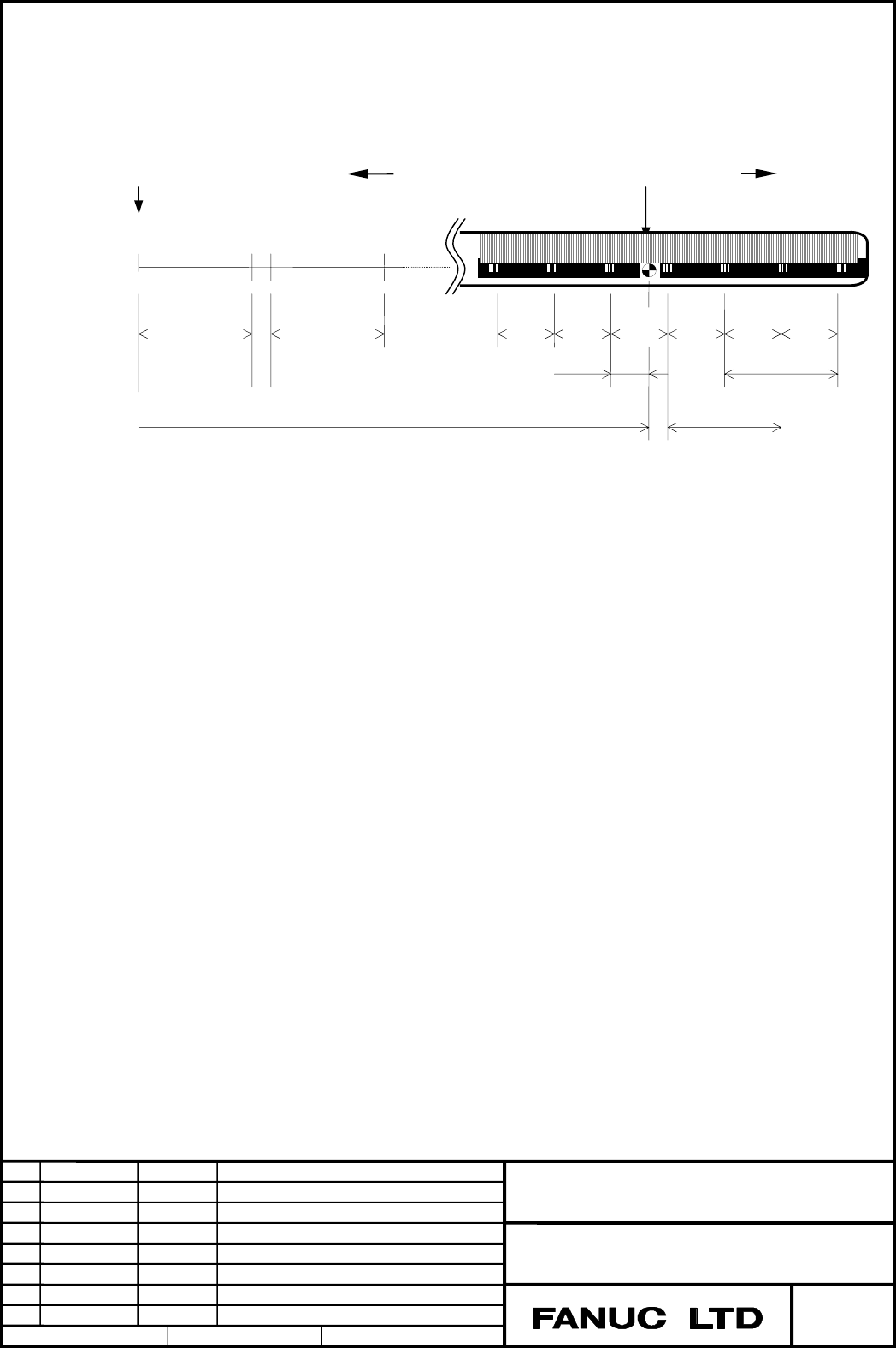

When IS-B and millimeter machine and using a scale figured below :
Scale zero
Plus direction
Reference point
Minus direction
Title
Mark1
Mark2 Mark1 Mark2 Mark1
Mark1 Mark2
Mark1
Mark1 Mark2 Mark1=Mark
B A
-[9960/(20020-20000)*20000+5000] = -9965000 20.020mm
20.000mm 5.000
9.940 10.060
9.960
10.040 9.980 10.020 19.980 20.000
Parameter
No.1821 (Mark1 interval) = "20000"
No.1882 (Mark2 interval) = "20020"
No.1883 (Reference position) = Position of point A + 5.000
= (Distance of A to B) / ( Mark2 interval - Mark1 interval)
* Mark1 interval + 5.000
= 9960 / (20020-20000) * 20000 + 5000
= 9965000
"-9965000"
(Reference point is located in minus side)
A-78754EN
FANUC Series 16i/18i/21i –B, 0i –B/C
Linear scale I/F with absolute address referenced
mark / Distance coded scale
Drawing No.
Page
Descri
p
tionDate Edit
27/32
03 2004/11/30 T,Inagaki (3) is added or altered.
02 2002/11/18 T
,
Ina
g
aki
(
2
)
is added or altered. E.Genma
