B–63284EN/03

7. CHECKING MACHINING PROGRAMSOPERATION

If movement about the C–axis is specified for Y–axis side facing, the

machining face is switched. The machining faces need not meet at right

angles as shown above. Five or more faces can be machined. The

machining statuses for the fifth and subsequent faces, however, cannot be

displayed together with the statuses of the first four faces. For example,

the machining status for the fifth face is drawn after the status displayed

for 1 above has been erased.

When Y–axis end facing is simulated, the end face of the workpiece is

drawn in the same way as when C–axis end facing is simulated.

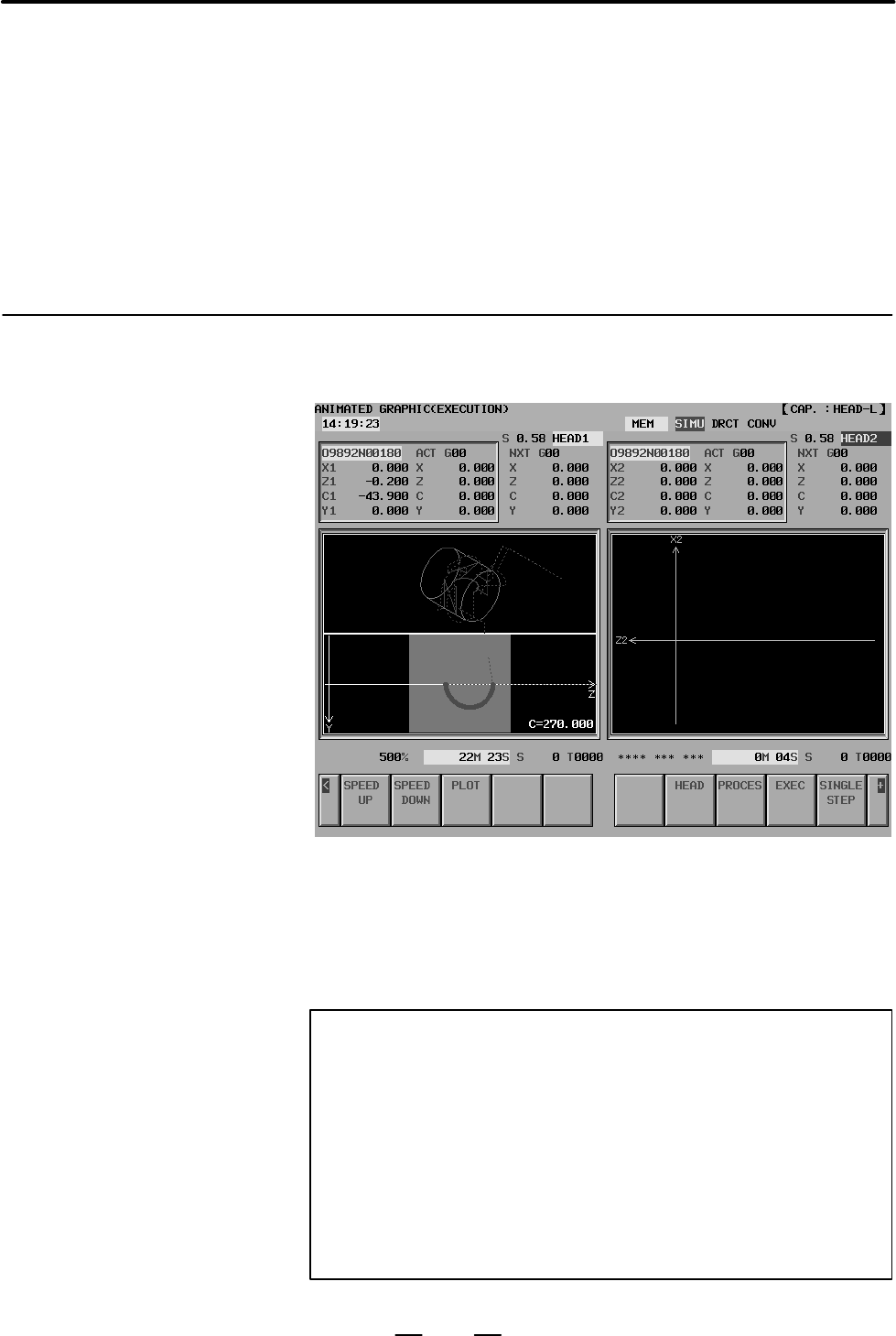

When the Y–axis machining function is added to a two–path lathes, the

following machining simulation screen is displayed:

To show how Y–axis side face machining is performed, a three–

dimensional path drawing is provided in the upper part of the screen, and

a simulation screen is provided in the lower part of the screen. If a

two–path lathes is used, the status of the latest Y–axis side facing is

displayed for each tool post.

NOTE

1 The field of the simulated Y–axis side facing is limited to an

area around the center of the workpiece. If the tool is moved

toward the upper or lower end of the workpiece, the tool will

not be displayed.

2 If machining is continued with an identical angular

displacement about the C–axis, but with different tools, the

tools are drawn using different colors.

3 To simulate Y–axis machining, set bit 0 (HSA) and bit 1

(GRY) of parameter 6502 to 1.

7.3.2

Simulation of Y–axis

Machining by a

Two–path Lathe
