SUPER CAPi T Operators manual Page 276

Operators manual
B–63284EN/03
1. MACHINING PROGRAMS FOR
2–AXES (X AND Z–AXIS) LATHES
TYPES OF MACHINING
PROGRAMS
257
COOLANT CM: Coolant specification
Select either [ON] or [OFF].
When ON is selected, M8 is output. When
OFF is selected, M9 is output.
1 = ON (M8)
2 = OFF (M9)
By setting bit 7 (OIL) of parameter No.
9763 to 1, a selection can be made from
[TYPE 1], [TYPE 2], and [OFF]. At this
time, M8 (type 1), M7 (type 2), or M9
(OFF) is output.
NOTE
Whether to set the coolant to on or off is determined
automatically according to the specification on the initial
setting screen. A different value, however, can be specified
for each process.

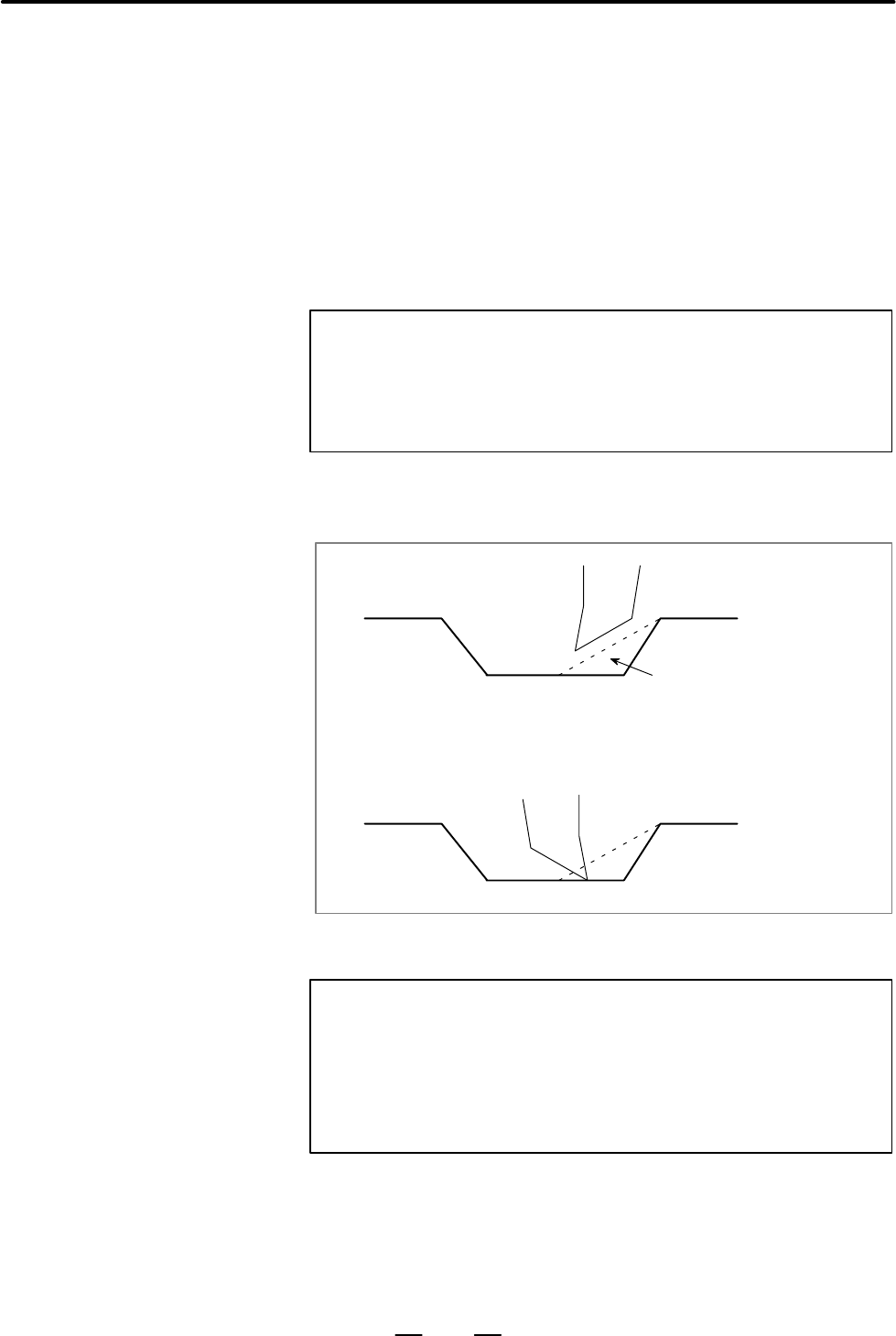

RESIDUAL CUT AU: Automatic residual machining
specification
Residual after cutting
If there is a residual as shown above, it can be cut automatically with a left–hand
tool as shown below.
Select either [EXEC.] or [NO EXEC.].
NOTE
When automatic residual machining is valid, the tools for
residual machining and cutting conditions are automatically
determined.
This data item is not displayed when an OUTER, INNER, or
FACING is specified as a machining area.
