2. MACHINING PROGRAMS FOR

LATHES WITH C–AXIS

B–63284EN/03

TYPES OF MACHINING

PROGRAMS

446

NOTE

When non–zero data is input as the chamfering amount, a

chamfering process is automatically created, as shown

below.

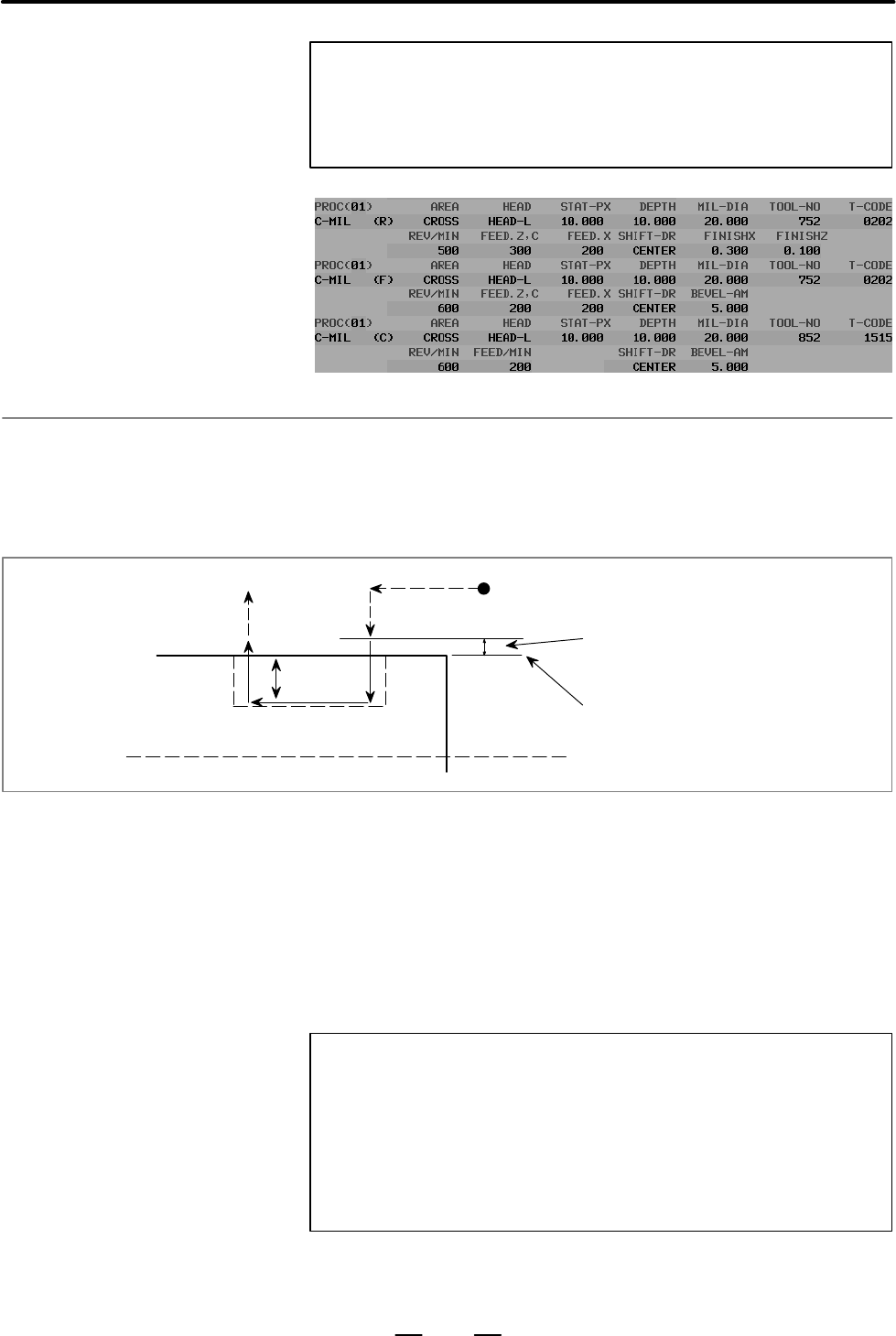

JSTART PNT X: X coordinate of the retraction position between

machining portions

Z : Z coordinate of the retraction position between

machining portions

Groove depth

(Radius)

Passing point 2

Grooving clearance

(parameter 9855:GRDCL)

X–coordinate of the groove start point

STAT–PX : X coordinate of the machining start point

Actually, cutting feed starts at a position distant

from the start point by an amount equal to the

clearance specified with parameter No. 9855

(GRDCL).

DEPTH : Depth of cut in milling

MIL–DIA : Maximum diameter of the end mill tool to be

used

NOTE

In automatic tool selection, a side face end mill tool whose

nominal diameter is smaller than or equal to a specified

groove diameter is selected. The C–axis milling width is no

larger than the width of the tool being used. Therefore, the

actual milling width may be smaller than the specified end

mill tool diameter.

TOOL–NO : ID number of the side face end mill tool

2.9.2

Process Data Details
