SUPER CAPi T Operators manual Page 206

Operators manual

Page of 829

/ 829

B–63284EN/03

13. SETTING DATA

OPERATION

187

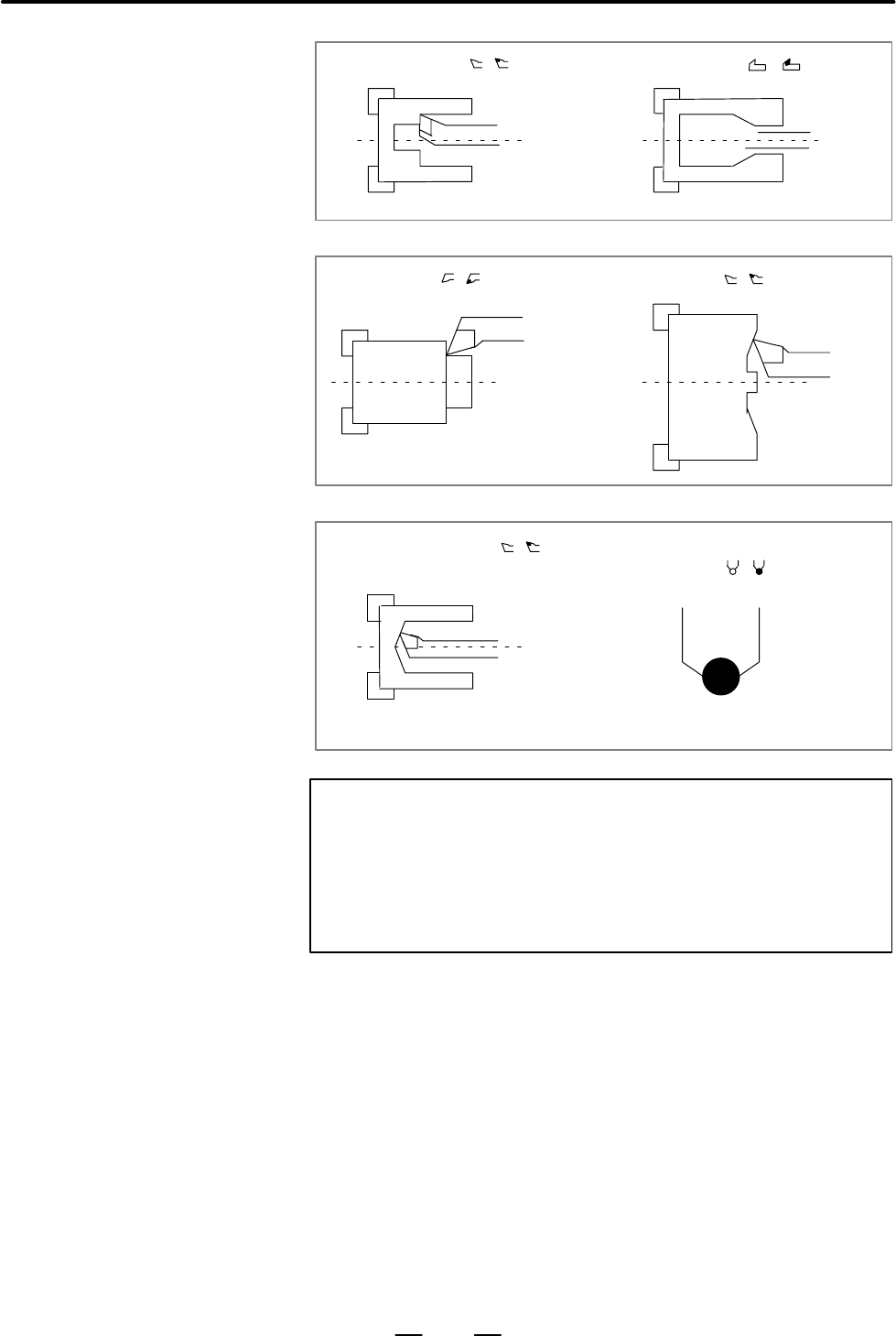

(4) Inner surface ()(3) Inner surface ( )

(5) End face ( ) (6) End face ()

(7) Inner bottom face ()(8) Outer surface, inner surface, and

end face ()

Used for residual machining of drilled hole bottoms

NOTE

A tool shown on the screen by pressing the tool direction

soft key with a filled–in tip indicates that the cutter is

equipped with a tip at this side. A tool shown with an

unfilled–in tip indicates that shown the cutter is equipped

with a tip at the opposite side.

: Specify by pressing one of the [ROUGH], [FIN],

and [COMMON] soft keys.

:T–code to be output when a machining program

is executed (Four digits/six digits)

: Direction in which a spindle rotates during

cutting Specify by pressing the [NORMAL]

(= M03) or [REVERS] (= M04) soft key.

ROUGH/FIN

OUTPUT T

REVOLUT.–D
