SUPER CAPi T Operators manual Page 74

Operators manual

Page of 829

/ 829

B–63284EN/03

6. CREATING MACHINING PROGRAMSOPERATION

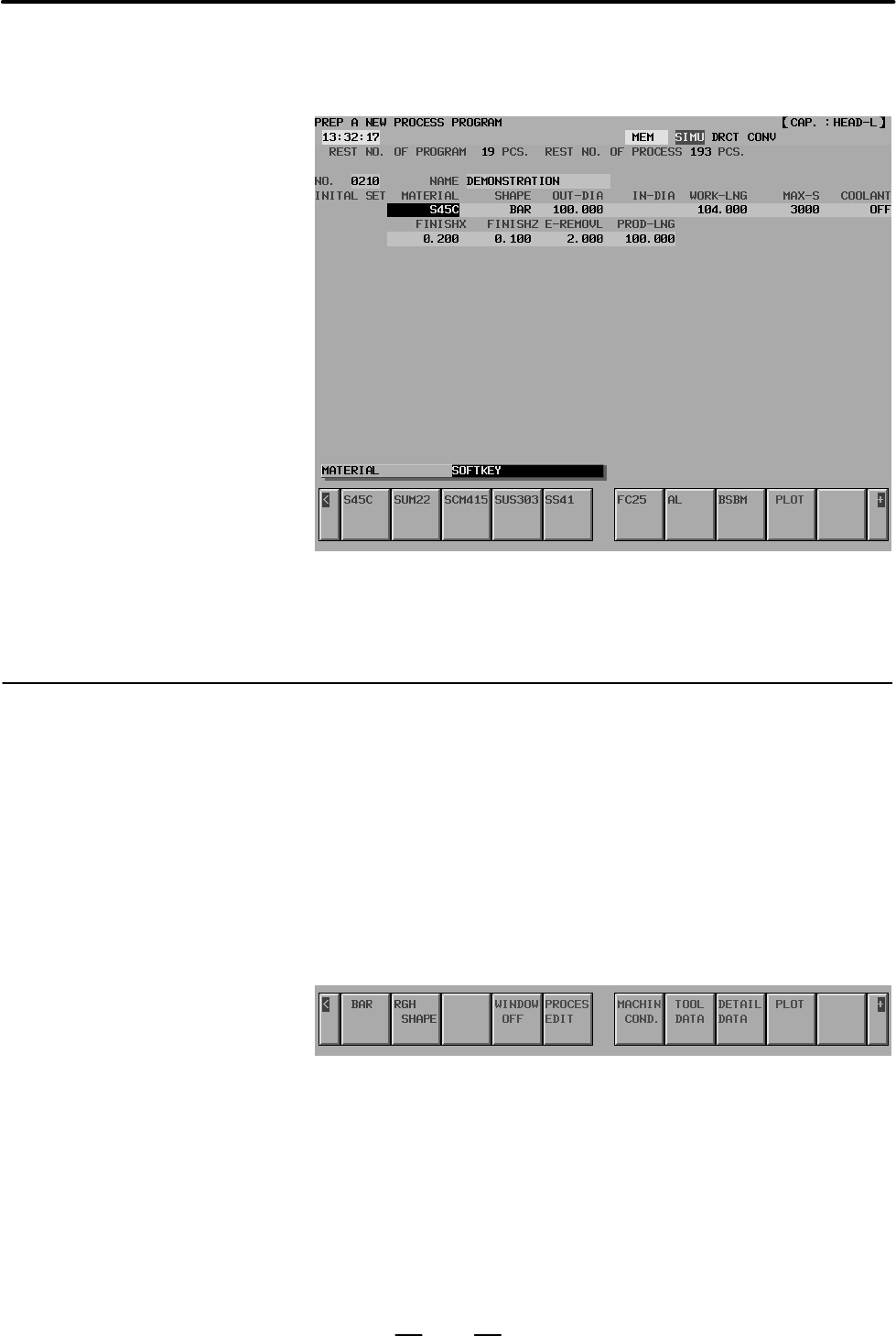

Initial settings are commonly used in a conversational machining

program.

The data for the machining program created immediately before the

current program is automatically copied to initial setting items.

MATERIAL (workpiece material) : Material to be machined. A

material is chosen from either eight

or 24 types of materials. When it is

chosen from 24 types, press the [+]

rightmost soft key to display the

ninth and subsequent materials.

Set the workpiece material with the

parameter.

SHAPE (shape of a workpiece) : Figure of the workpiece to be

machined. Choose either BAR or

RGH SHAPE.

BAR:Blank rods or blanks having a rounded portion

RGH SHAPE : Casting or material for casting

6.5

INITIAL SETTINGS

6.5.1

Details of Settings
