SUPER CAPi T Operators manual Page 143

Operators manual
8. EDITING MACHINING PROGRAMS
B–63284EN/03
OPERATION
124

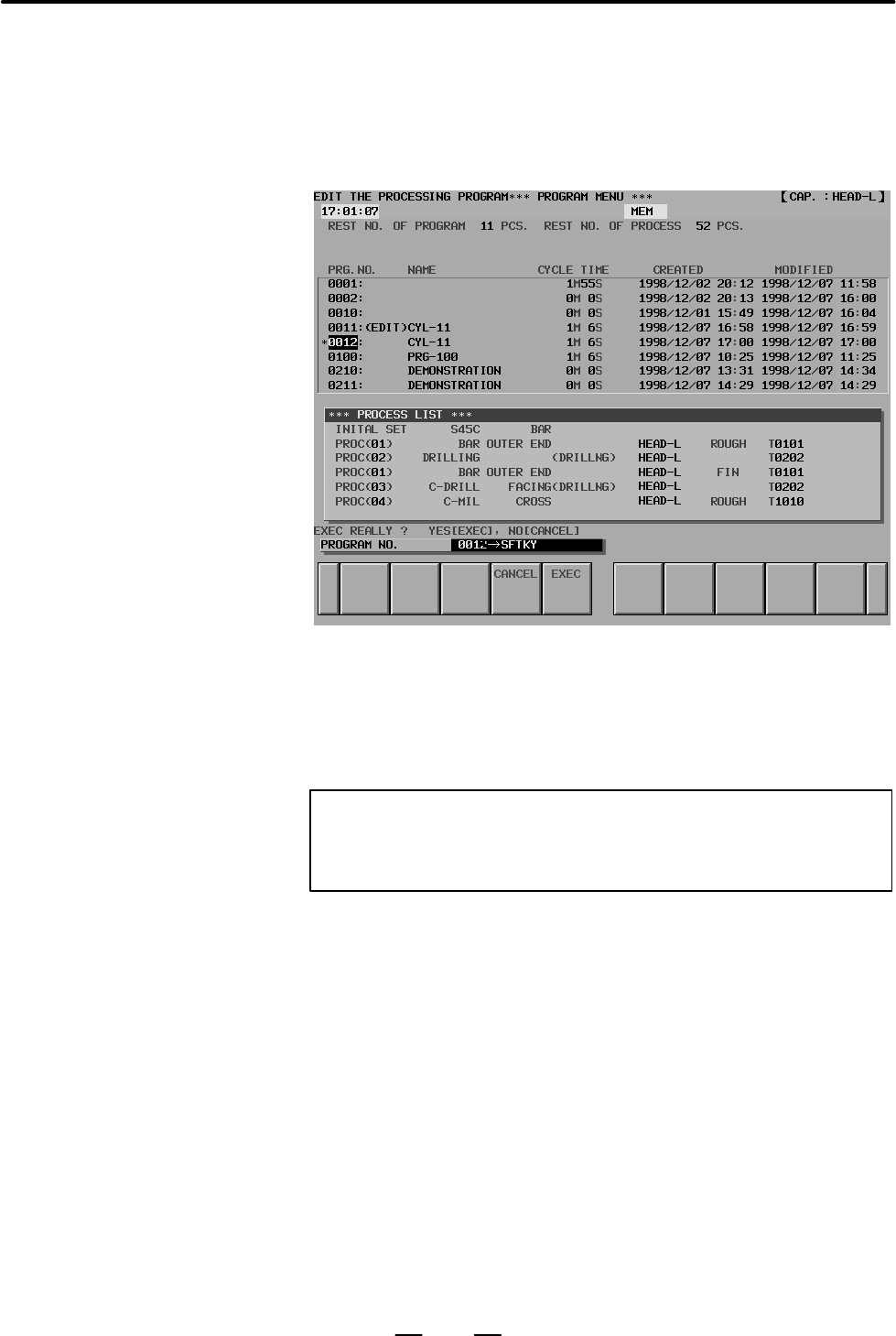

On the registered–program directory screen for editing, enter the number
of the machining program to be deleted. Alternatively, move the cursor
to the program number. Then press the [DELETE] soft key. The message
for verifying the operation and the soft keys are displayed as shown below.
If the [EXEC] soft key is pressed on the operation guidance, the specified
machining program is deleted.
If the [CANCEL] soft key is pressed, the delete operation is canceled and
the system returns to the original state.
NOTE
To delete all machining programs, enter –9999 as the
program number.
8.8
DELETING
MACHINING
PROGRAMS
Previous page
Next page
