SUPER CAPi T Operators manual Page 643

Operators manual

Page of 829

/ 829

B–63284EN/03

1. THREE–PATH COMPLEX

LATHE FUNCTION

ADDITIONAL FUNCTIONS OF SERIES

BH1E/BH2E/BH3E AND BH1F/BH2F/BH3F

624

+X1

+X3

+Z1

+Z3

+X1’

+X2

+Z1’

+Z2

Sub Spindle

Main Spindle

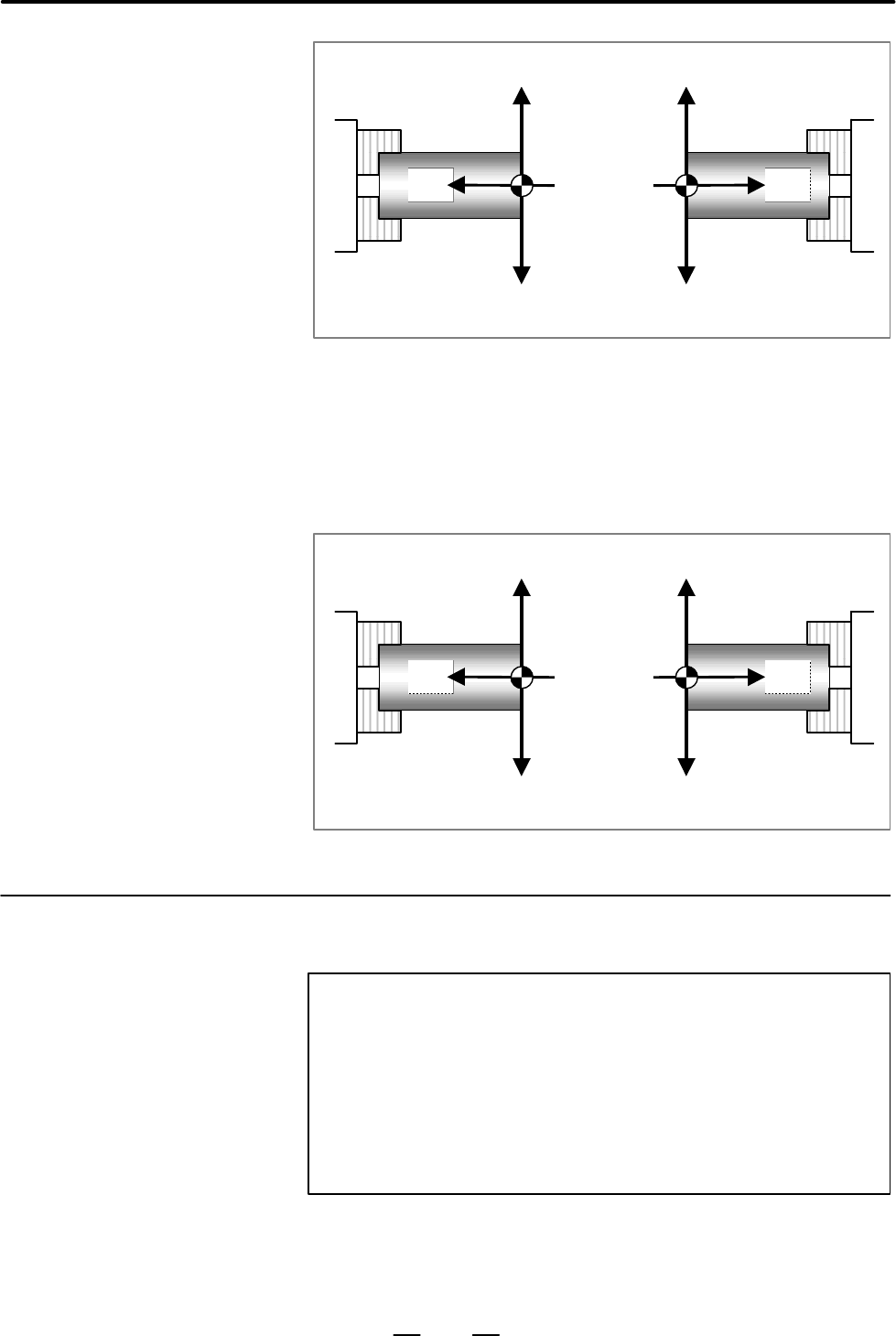

D For lathes with tool post 1 (the first path) located on the upper side

which allows main–spindle machining only, tool post 2 (the second

path) on the upper side which allows sub–spindle machining only, and

tool post 3 (the third path) on the lower side which allows

main–spindle and sub–spindle machining (when parameter No. 27124

is set to 2)

+X1

+X3

+Z1

+Z3

+X2’

+X3

+Z2’

+Z3

Sub Spindle

Main Spindle

When using the three–path lathe conversational function, set tool post 1

for tool post selection on the screen.

NOTE

1 When tool post 1 is selected on the conversational screen,

changing the tool post selection changes the display to the

main menu.

2 Also when this series is used for a two–path lathe without

adding the optional three–path function, the conversational

function cannot be used with a tool post other than tool post

1 set for tool post selection on the screen.

1.2.4

Operation of the

Conversational

Function
