4. AXIS DISPLAY FUNCTION

ON THE ANIMATED

GRAPHIC SCREEN

B–63284EN/03

ADDITIONAL FUNCTIONS OF SERIES

BH1E/BH2E/BH3E AND BH1F/BH2F/BH3F

669

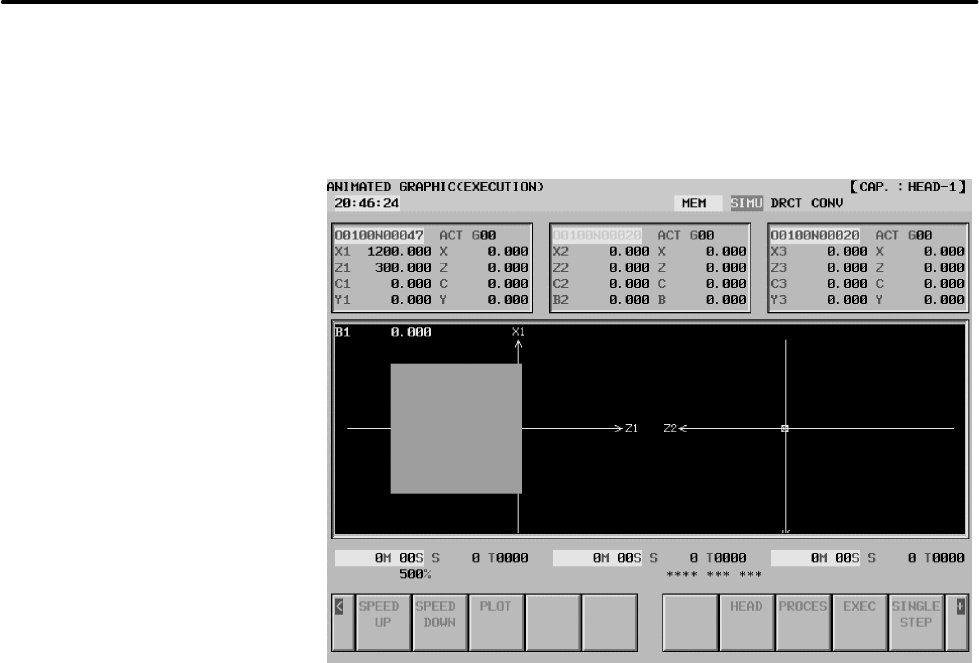

On the animated graphic screen, absolute positions for only up to four

axes can be displayed for each path. When an arbitrary axis number is set

in parameter No. 27125, this function allows the absolute position for one

more axis to be displayed on the animated graphic screen.

When an arbitrary axis number is set in parameter No. 27125, an absolute

position for one more axis can be displayed on the animated graphic screen.

This parameter can be set for each path, allowing an arbitrary absolute

position to be displayed for each path on the animated graphic screen.

The same axis number as the axis number of the axis of an absolute

position in the upper part can also be set as an arbitrary axis number in

parameter No. 27125.

The axes subjected to three–dimensional coordinate conversion are not

displayed in reverse video even in three–dimensional conversion mode.

4.1

SPECIFICATIONS

4.2

DETAILS
