6. CREATING MACHINING PROGRAMS

B–63284EN/03

OPERATION

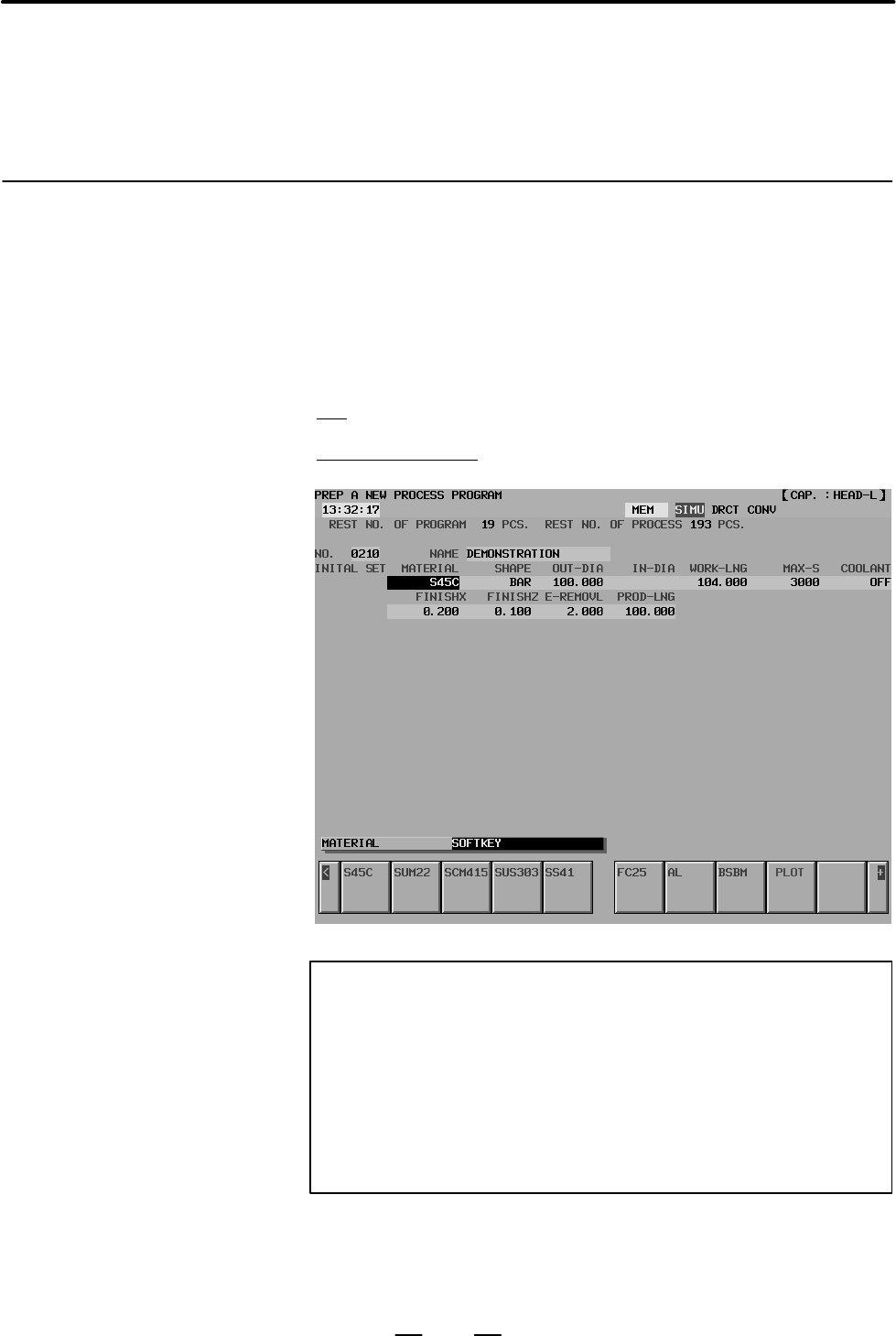

Press the [1] soft key to create a new machining program on the main

menu.

A number and name can be specified for a machining program using the

conversational automatic programming function.

When entering the DEMONSTRATION program with number 210

(1) (PREP A NEW PROCESS PROGRAM)

210

INPUT

DEMONSTRAION

INPUT

NOTE

1 Up to 20 characters can be used for the name of a program.

2 The PROD–LNG data item is displayed only when the

conversational function for two–turret lathes with two

opposing spindles or one–path lathe with a sub–spindle is

used.

3 The displayed workpiece materials vary with the machine

tool builder. For details, refer to the manual supplied by the

machine tool builder.

6.4

CREATING A

MACHINING

PROGRAM

6.4.1

Entering the Number

and Name of a

Program

Example)
