SUPER CAPi T Operators manual Page 116

Operators manual

Page of 829

/ 829

B–63284EN/03

8. EDITING MACHINING PROGRAMSOPERATION

To display the registered–program directory screen for editing, press the

[2] and [EDIT THE PROCESSING PROGRAM] soft keys on the main

menu screen.

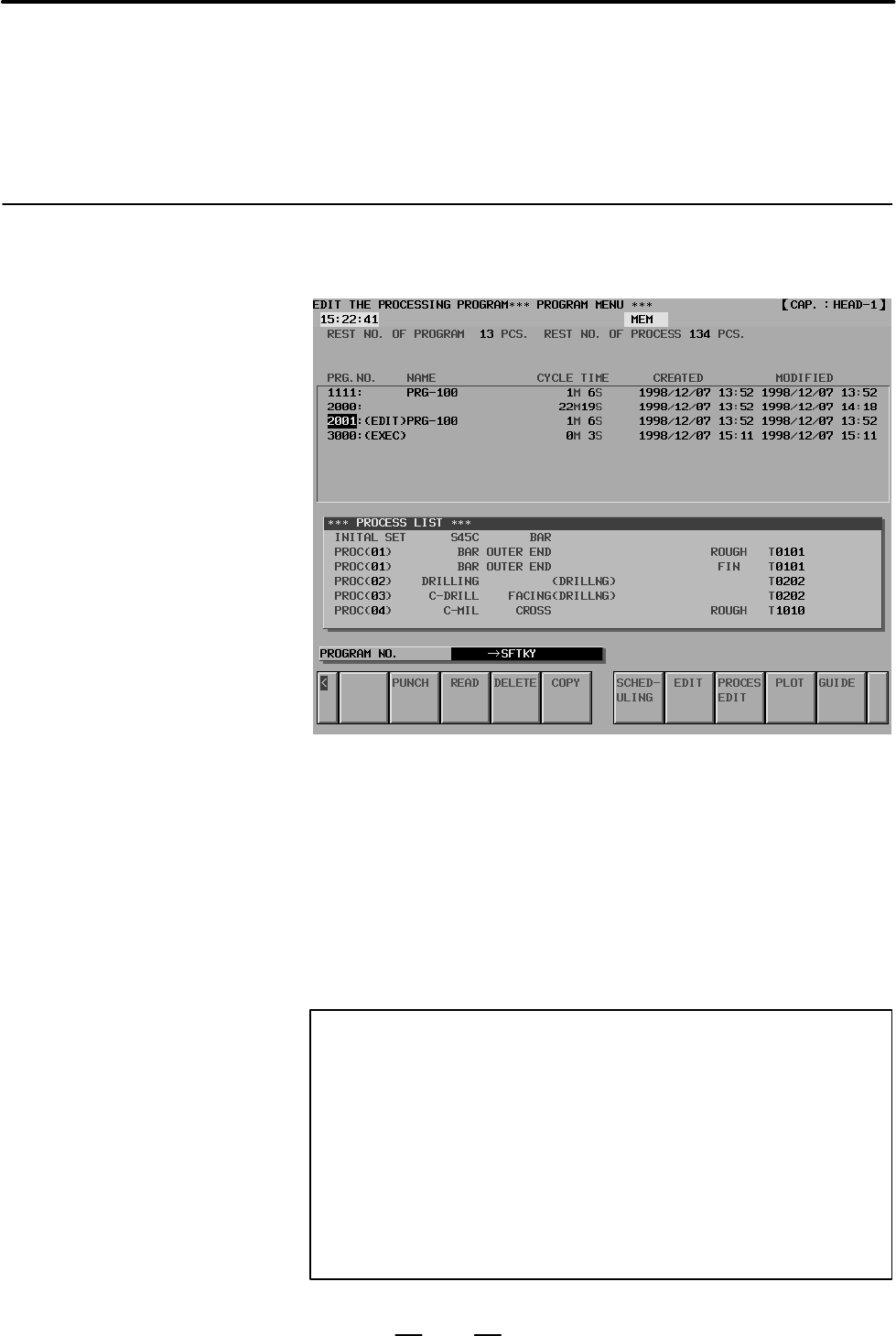

The registered–program directory screen displays the program numbers,

names, cycle times, creation dates and times, and the latest update dates

and times of all registered conversational machining programs.

Part of the outline of the program to which the cursor is positioned is

displayed in the lower part of the screen.

By pressing [PLOT], the product figure of the program to which the

cursor is positioned can be displayed in the window. The screen display

returns to its original status when [RETURN] is pressed.

NOTE

1 As the cycle time data, a calculated machining time is

displayed when machining simulation is performed.

Depending on the conditions, the actual machining time

may differ from a calculated machining time. When a

machining program is actually executed, the time required

for actual machining is displayed.

2 Another registered–program directory screen, such as that

for machining simulation, displays similar information for

each machining program.

8.1

SELECTING THE

MACHINING

PROGRAM TO BE

EDITED

8.1.1

Registered–program

Directory Screen for

Editing
