SUPER CAPi T Operators manual Page 308

Operators manual

Page of 829

/ 829

B–63284EN/03

1. MACHINING PROGRAMS FOR

2–AXES (X AND Z–AXIS) LATHES

TYPES OF MACHINING

PROGRAMS

289

(3) Specifying of bar machining process data

The process data and contour of bar machining can be entered in the

same way as ordinary input.

The contour, however, must be inside the material figure entered at

initial setting.

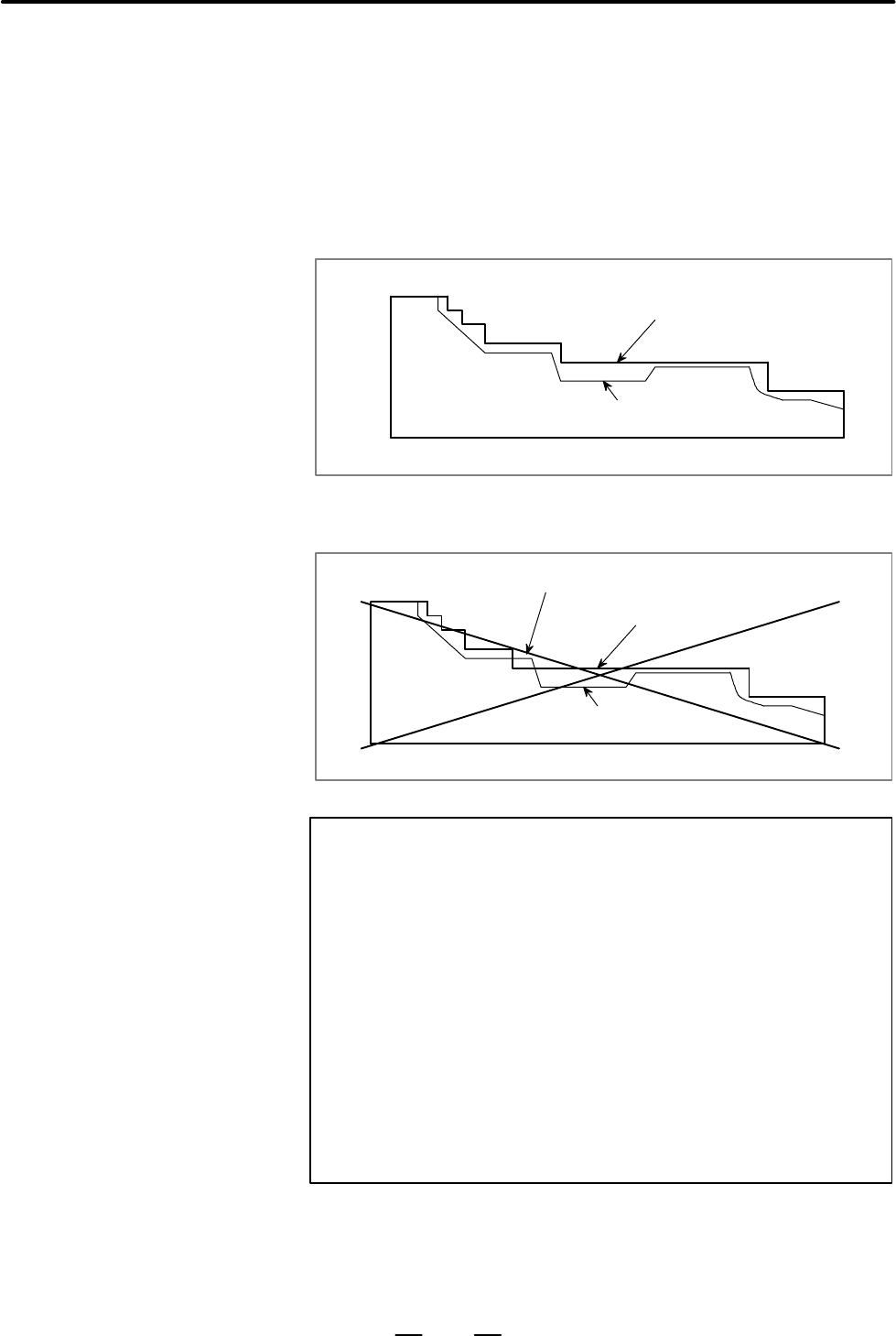

Example of a contour for bar machining (outer surface + automatic

residual machining)

Material figure

Contour

Example of a contour that cannot be entered)

Material figure

Contour

The contour goes out of the material figure

NOTE

To reduce input errors, enter the material figure and bar

machining contour in the following sequence instead of

entering first the material figure, then the contour.

1. To create a machining program, enter a rough figure such

as a rectangle as a formed material.

2. Enter the bar machining contour like ordinary operation.

3. Re–display the material figure data screen for initial

setting.

4. Pressing the [PLOT] soft key draws the material figure and

bar machining contour which are overlapped on each

other. This display is called product figure drawing screen.

Enter the material figure data while checking both the

material figure and contour.
