SUPER CAPi T Operators manual Page 587

Operators manual
4. FUNCTIONS RELATED TO
TOOL FILE
B–63284EN/03
ADDITIONAL FUNCTIONS OF SERIES
BH0M/BH1D/BH2D, BH1E/BH2E/BH3E,
AND BH1F/BH2F/BH3F
568
In selecting a CAP program for executing it, data of T–code, Nose–R, and
Tool Radius in the tool data file is not rewritten. When this function is
available, data of the tool data file cannot be rewritten on screens except
for the tool data screen.
This function is available by setting the following parameter.
This function cannot be used with the optional “Tooling Function B”.
#7
9763
#6 #5 #4 #3
PTF
#2 #1 #0
PTF 1 : This function is available.
0 : This function is not available.

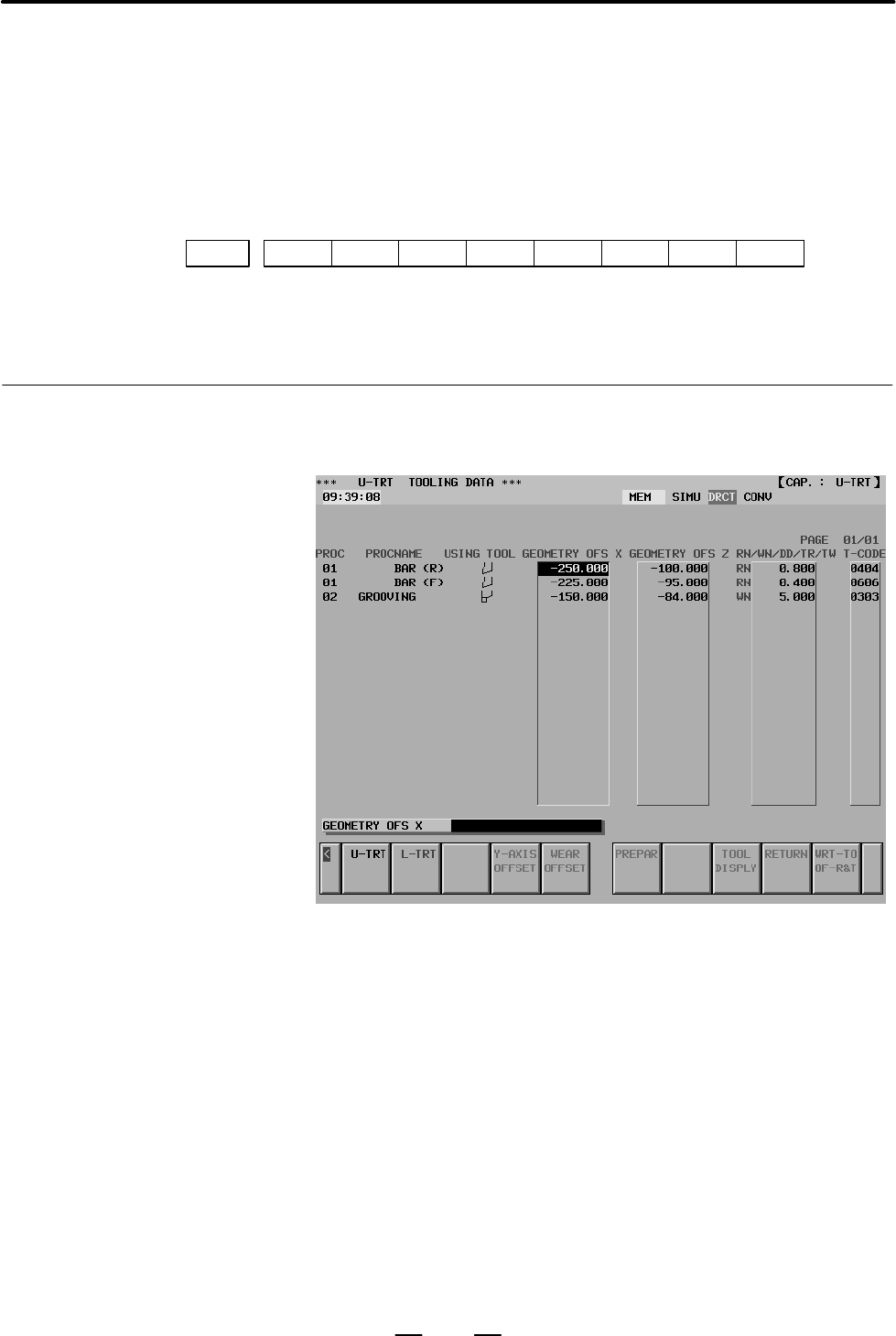

Press the soft key [TOOLNG] on the Program List screen for selecting an
executed program. Then, the following Tooling Data List screen appears.
PROC : The Process No.
PROCNAME : Machining Type of the Process
USING TOOL : Type of tool used in the Process
GEOMETRY OFS X,Z :
X and Z values for the tool geometry offset.
(Same as the geometry–offset values in the CNC)
To display the setup guidance screen for measuring
offset values, press the soft key [PREPARE].
4.1
PROTECTION OF
TOOL DATA FILE IN
TOOLING
4.1.1
Tooling Data
