1. COMPLEX LATHE

APPLICATION

ADDITIONAL FUNCTIONS OF SERIES

BH0M/BH1D/BH2D, BH1E/BH2E/BH3E,

AND BH1F/BH2F/BH3F

545

When C–axis machining is done with C–axis belonging to another path

such as c–axis machining for sub–spindle with turret 1 and c–axis

machining for main–spindle with turret 2, the C–axis reference point

return request is

displayed.

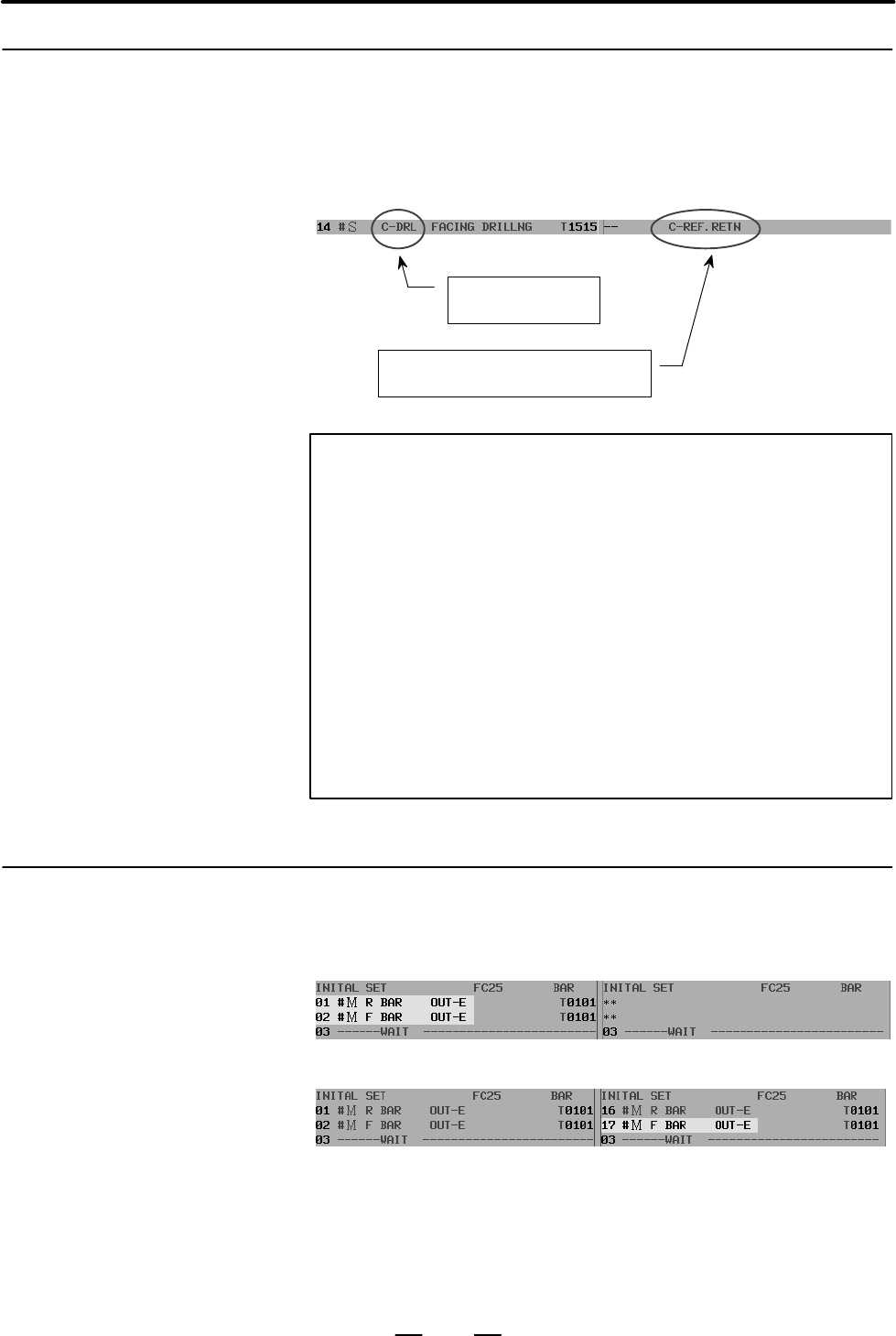

C–axis reference point return request

from another path

C–axis machining on

another path

NOTE

1C–axis reference point return request is not a machining

process.

Therefore, the edit operation such as copy, move, delete,

and so on cannot be done.

2 Concerning C–axis reference point return request from

another path, the contents of it is difference in individual

M.T.B.

Please refer to the operator’s manual of M.T.B.’s issue for

details.

3 When two Cs contour axes are subject to mixed control, the

function for mixing zero point return commands for Cs

contour axes is used (the parameter 8161#1 (CZM)=1), the

C–axis reference point return request is not displayed.

After a moved process or a copied process is specified, a cursor is put on

the place where a process is moved or copied. And, the software–key

[EXEC] is pressed.

1.3.4

Display of C–axis

Reference Point Return

Request to Another

Path

1.3.5

Move and Copy

Between Paths
