B–63284EN/03

7. CHECKING MACHINING PROGRAMSOPERATION

Before checking a drawing, select a machining program created by

conversational programming by following the procedure described

below:

(1) Display the main menu screen, then change the system to the MEM

mode.

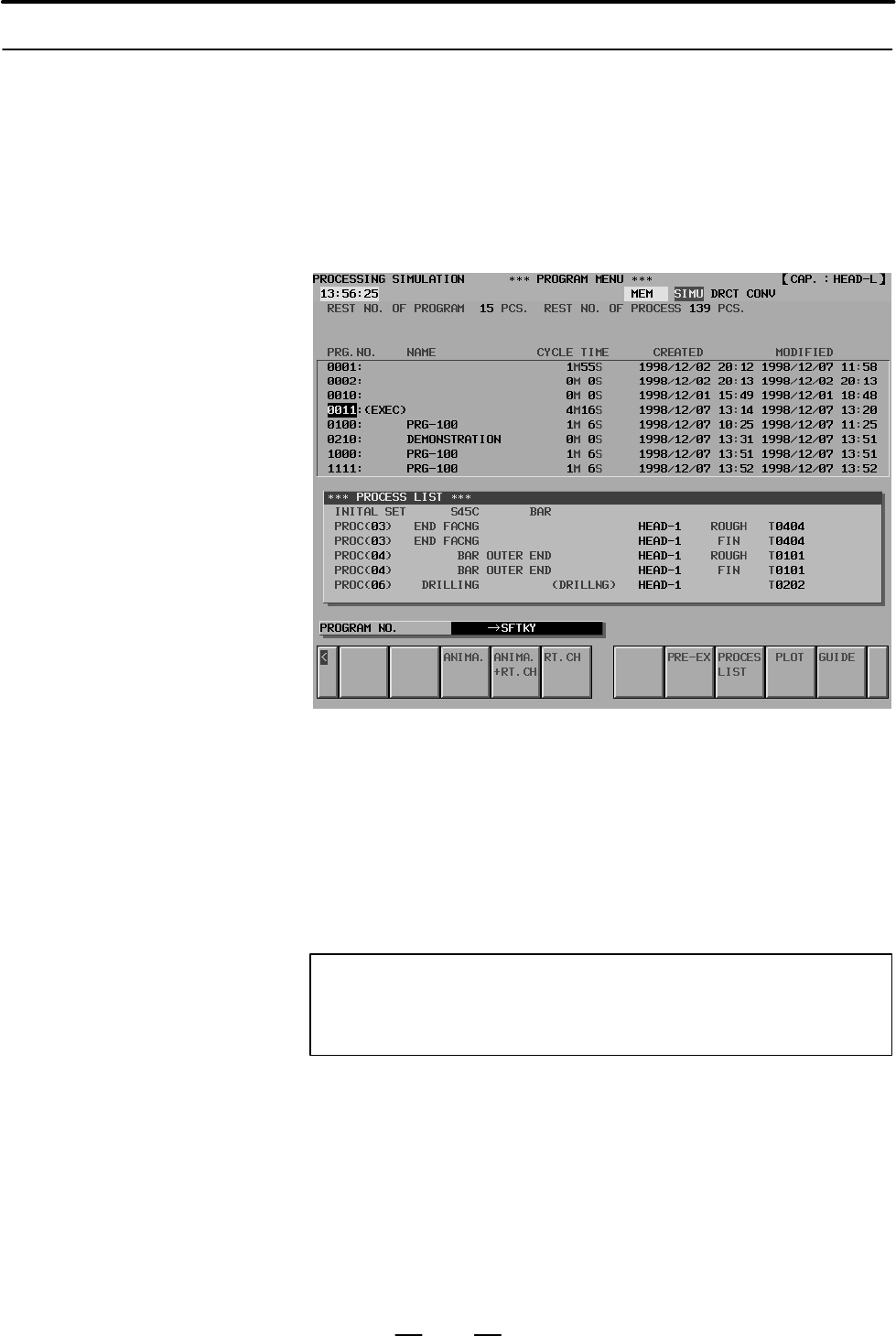

(2) Press the [3] and [PROCESSING SIMULATION] soft keys. The

following registered–program directory screen for machining

simulation is displayed.

(3) Enter the number of the program to be simulated. Alternatively,

move the cursor to the number of the program. Then press the

[ANIMA.], [ANIMA. + RT.CH], or [RT.CH] soft key.

[ANIMA.] : Displays the animated simulation of the

machining.

[ANIMA. + RT.CH] : Displays the animated simulation of the

machining and tool path.

[RT.CH] : Displays only the tool path.

NOTE

The tool path of the C–axis and Y–axis machining cannot

be drawn if RT.CH is specified.

7.2.1

Selecting a Machining

Program
